Steering Column Connector End View

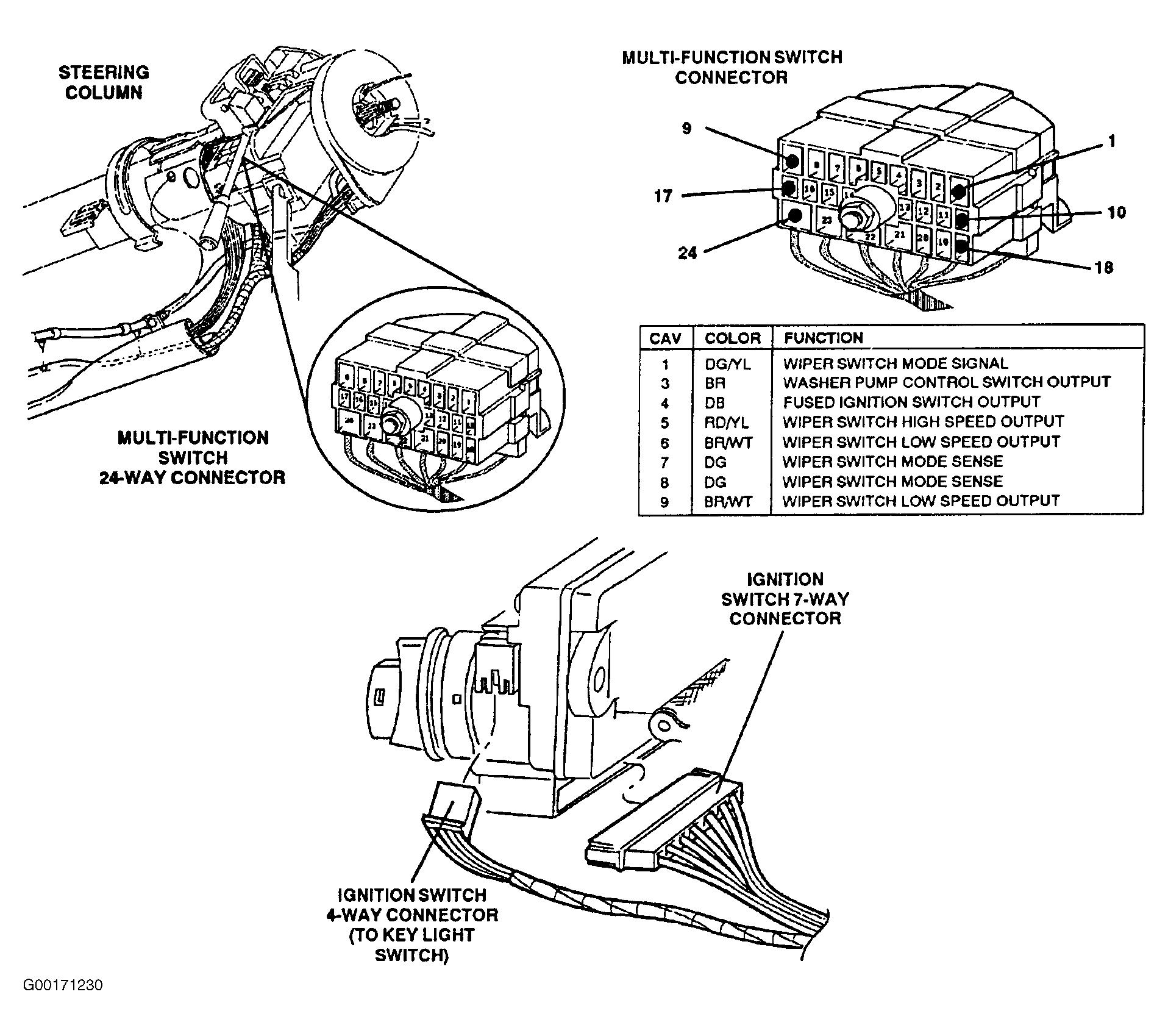

Fig 1: Steering Column Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
