Pedal Positioning Module: Service and Repair

REMOVAL
1. Remove adjustable pedal assembly from vehicle.

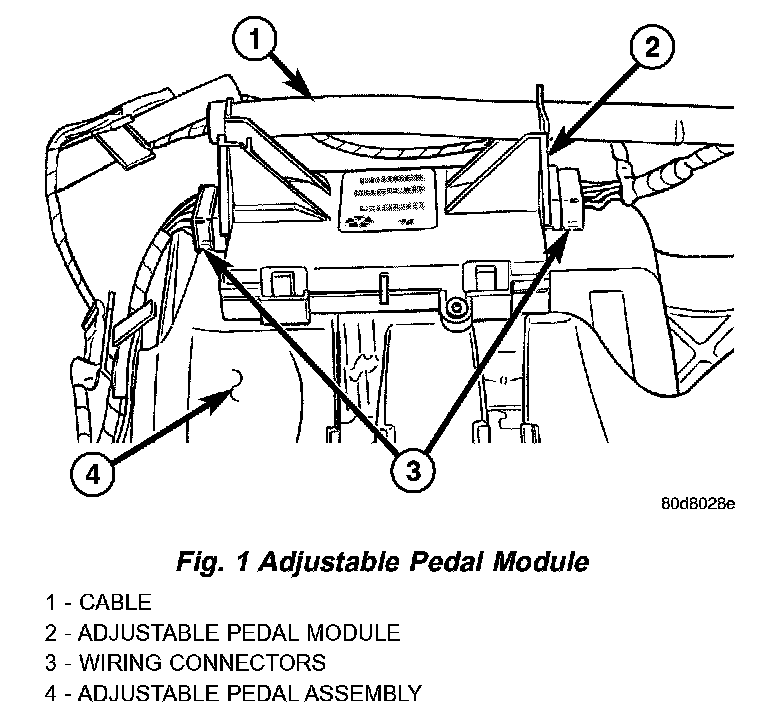

Fig.1 Adjustable Pedal Module:

2. Disconnect 2 wiring connectors from module.
3. Remove cable from routing clips on module.
4. Remove module mounting screws.
5. Remove module.

INSTALLATION
1. Install module on pedal assembly and install mounting screws.
2. Place cable in routing clips on module.
3. Connect 2 wiring connectors to module.
4. Install adjustable pedal assembly.
