Instrument Cluster

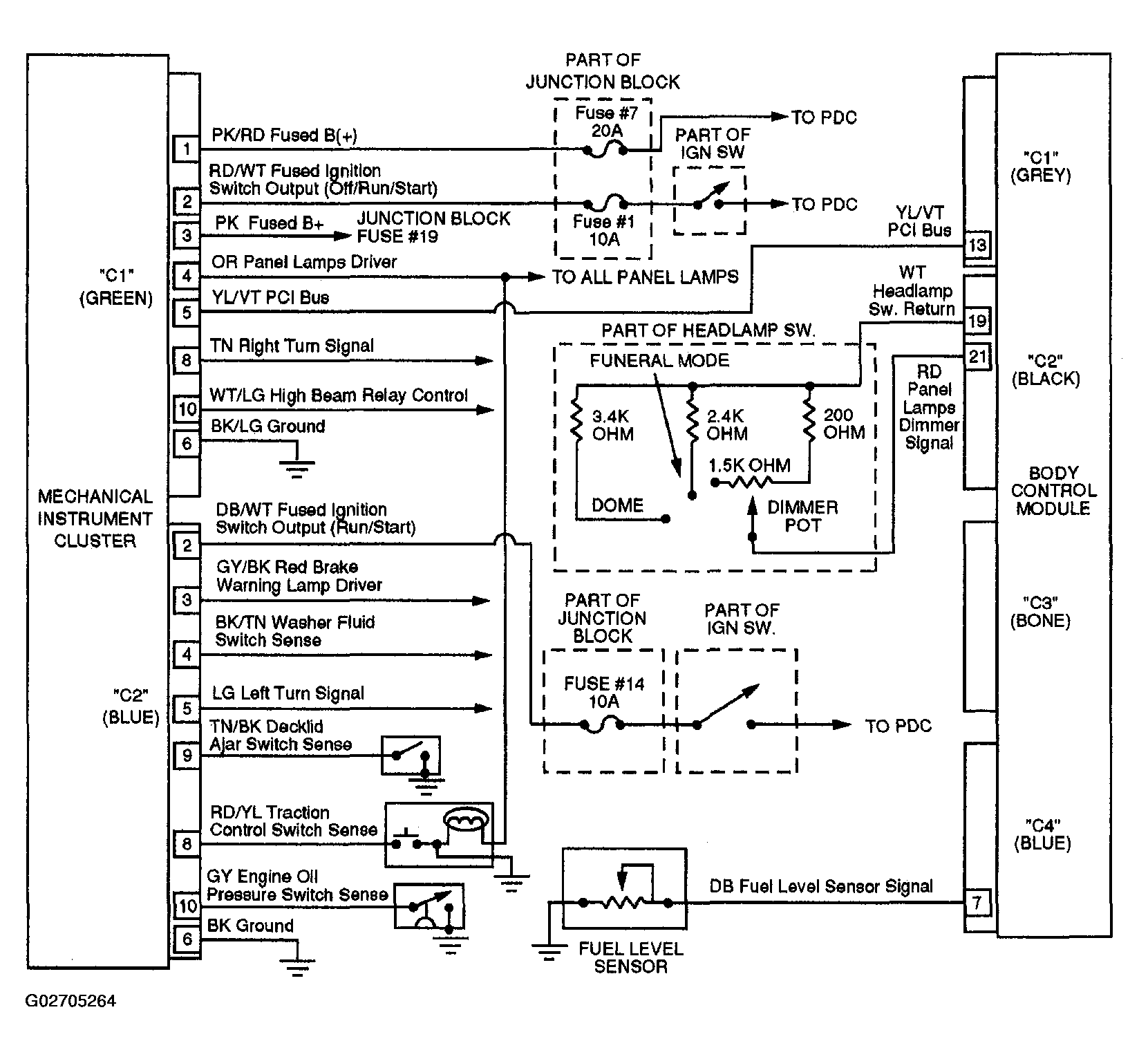

Fig 1: Schematic Diagrams - Instrument Cluster (1 Of 2)
G02705264Courtesy of DAIMLERCHRYSLER CORP.

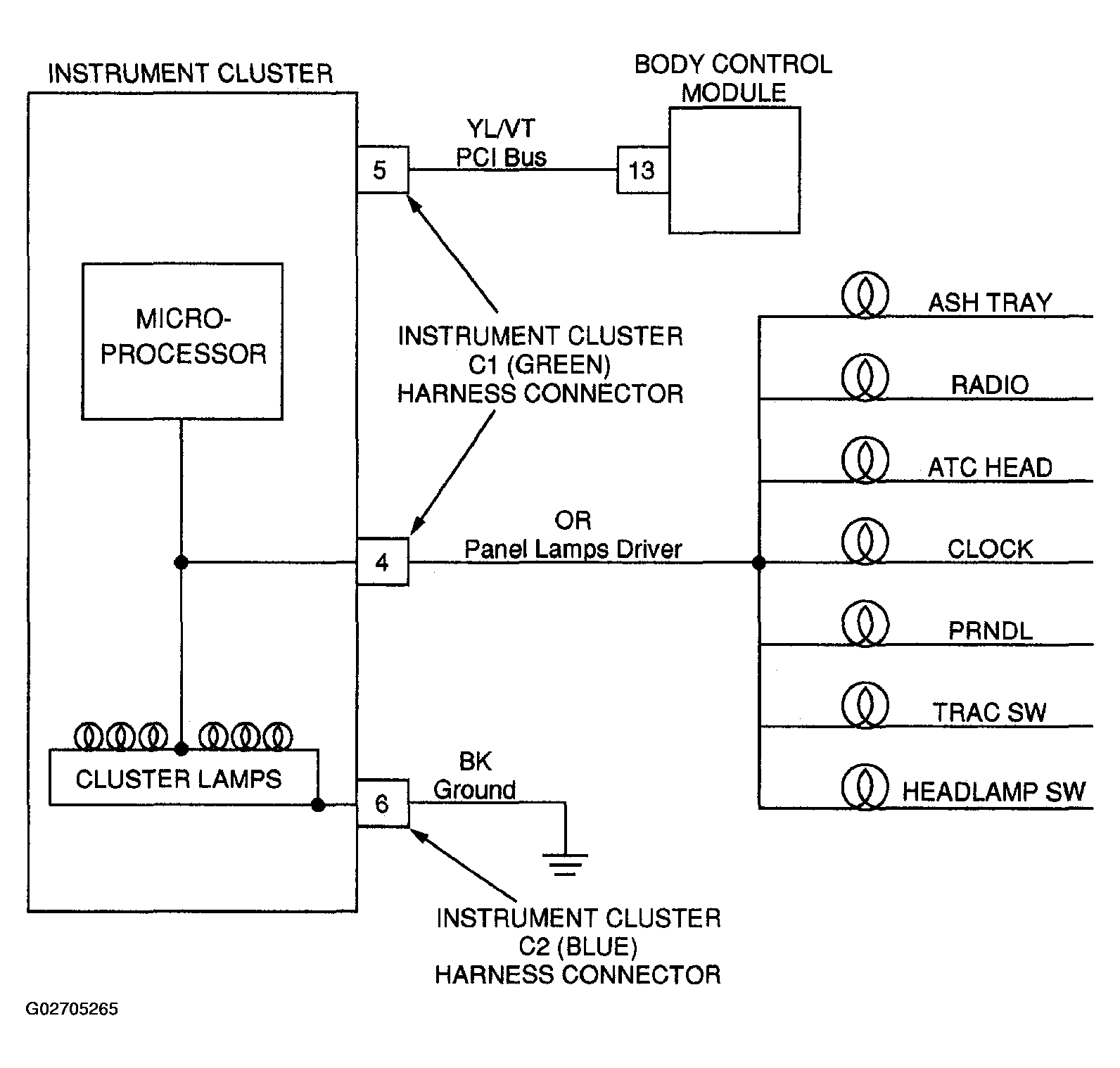

Fig 2: Schematic Diagrams - Instrument Cluster (2 Of 2)
G02705265Courtesy of DAIMLERCHRYSLER CORP.
