ATC Head Illumination Inoperative

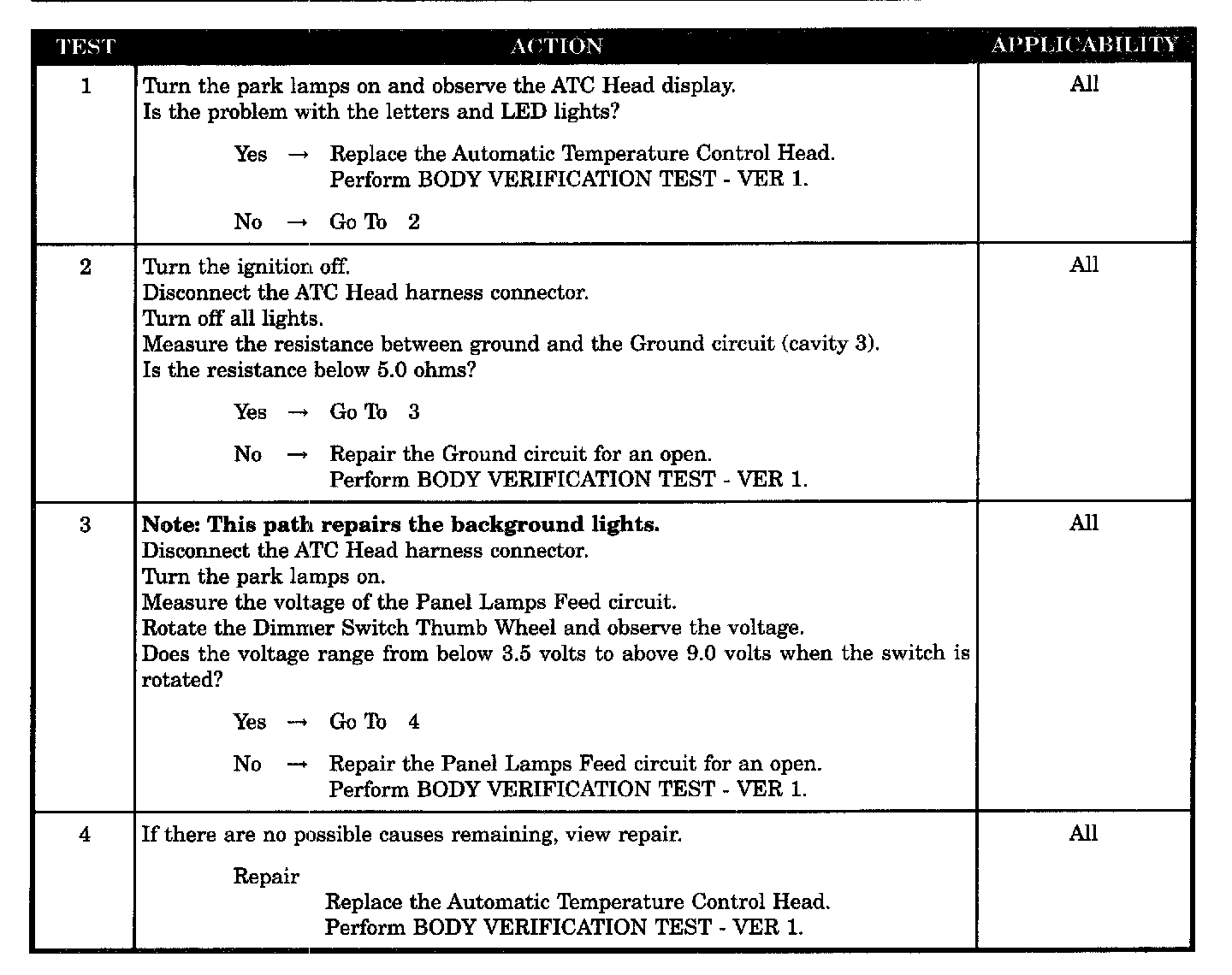

Test 1 - 4:






SYMPTOM
ATC HEAD ILLUMINATION INOPERATIVE

POSSIBLE CAUSES
- Identify ATC head illumination problem
- Ground circuit open
- Panel lamps feed circuit open
- ATC head - illumination inoperative
