Airbag Indicator On Without ACM Trouble Codes

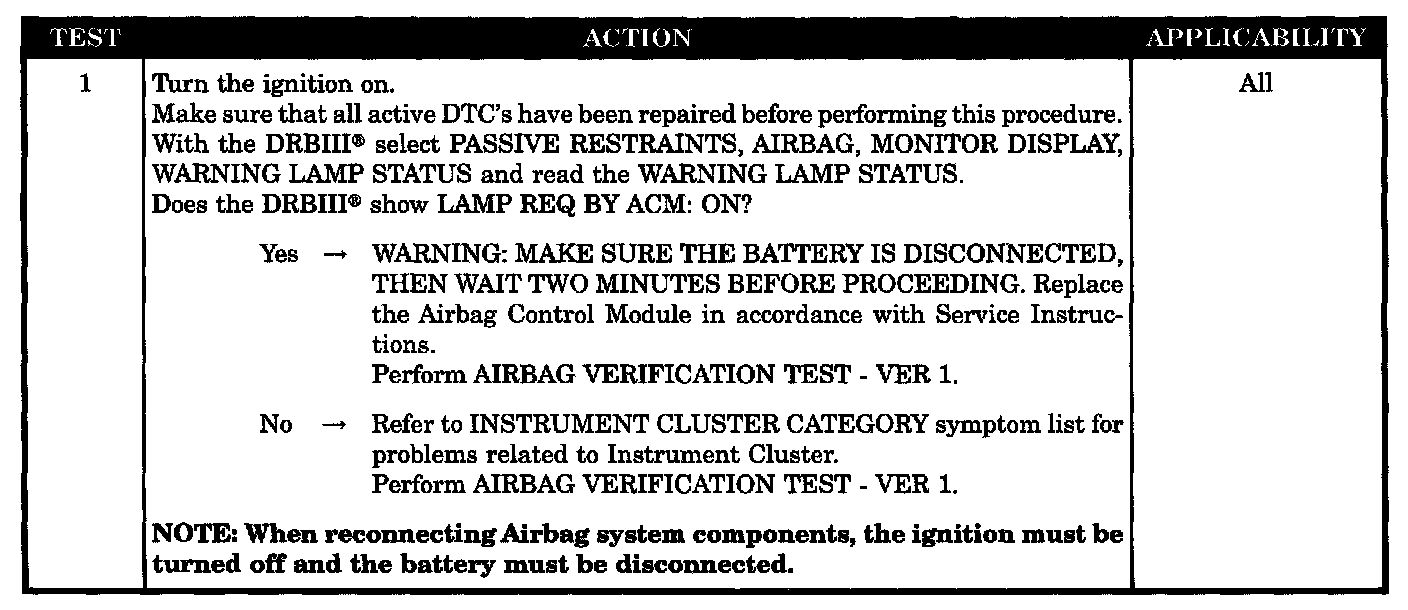

Test 1:
SYMPTOM
AIRBAG INDICATOR ON WITHOUT ACM TROUBLE CODES
POSSIBLE CAUSES
-
Airbag indicator on without ACM trouble codes
-
Instrument cluster problems
