Fog Lamps Will Not Turn On

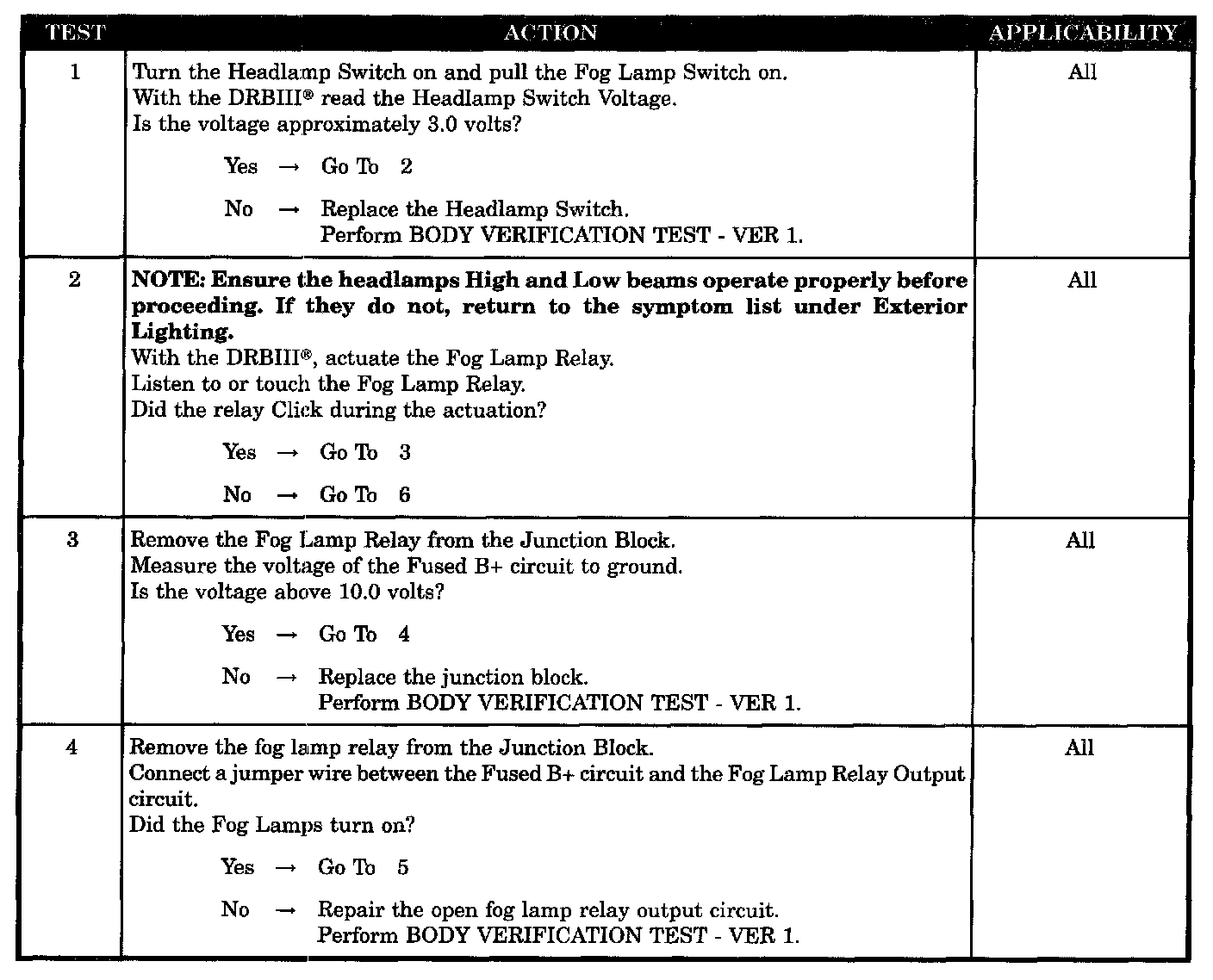

Test 1 - 4:

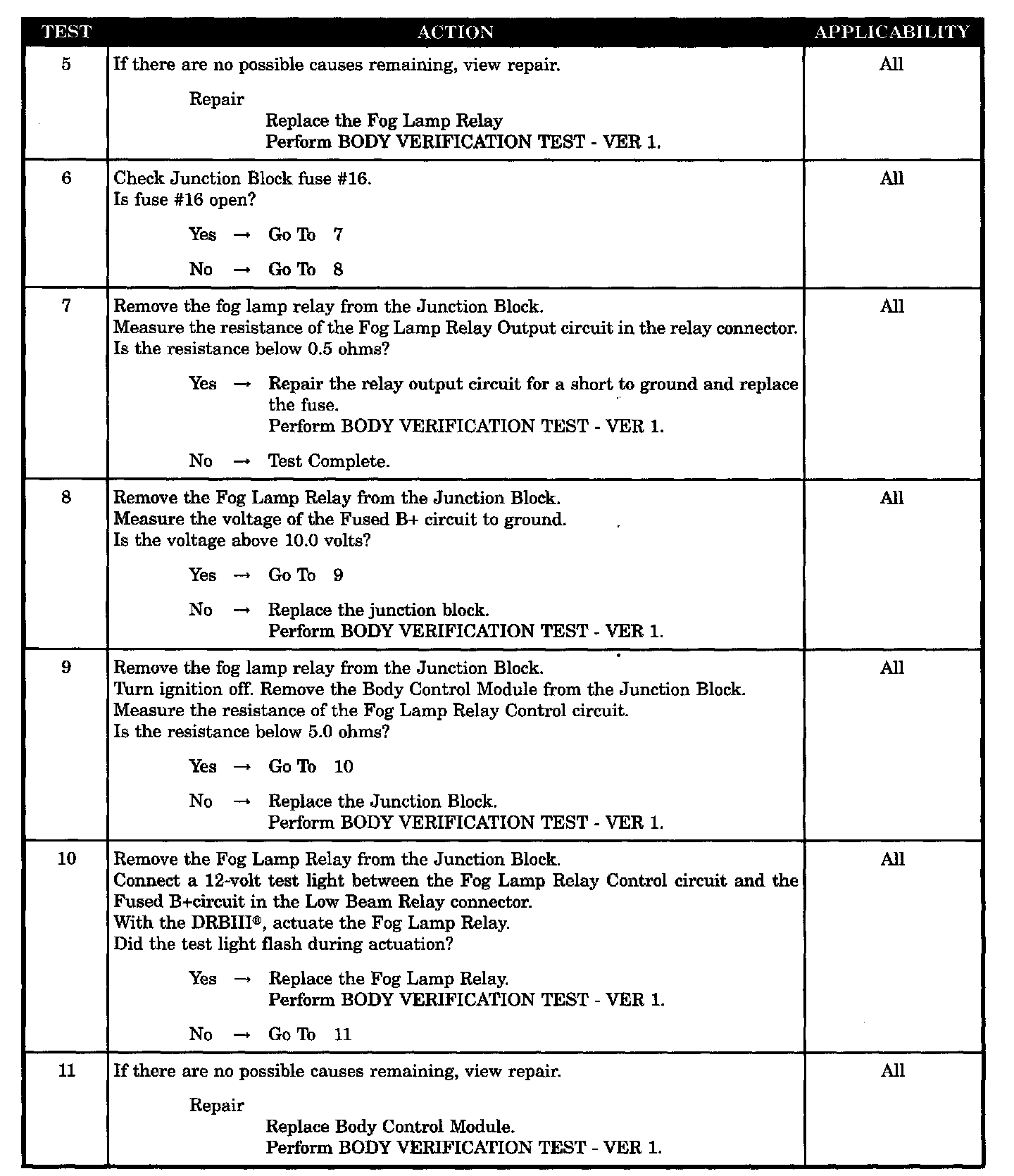

Test 5 - 11:

SYMPTOM
FOG LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Fog lamp relay output circuit open
- Fog lamp relay CTL circuit open
- Open fused B(+) to fog relay
- Fog lamp relay output circuit short
- Fog lamp relay
- Fog lamp relay
- Body control module
- Headlamp switch
