Driver Door Fails to Unlock From Any Switch

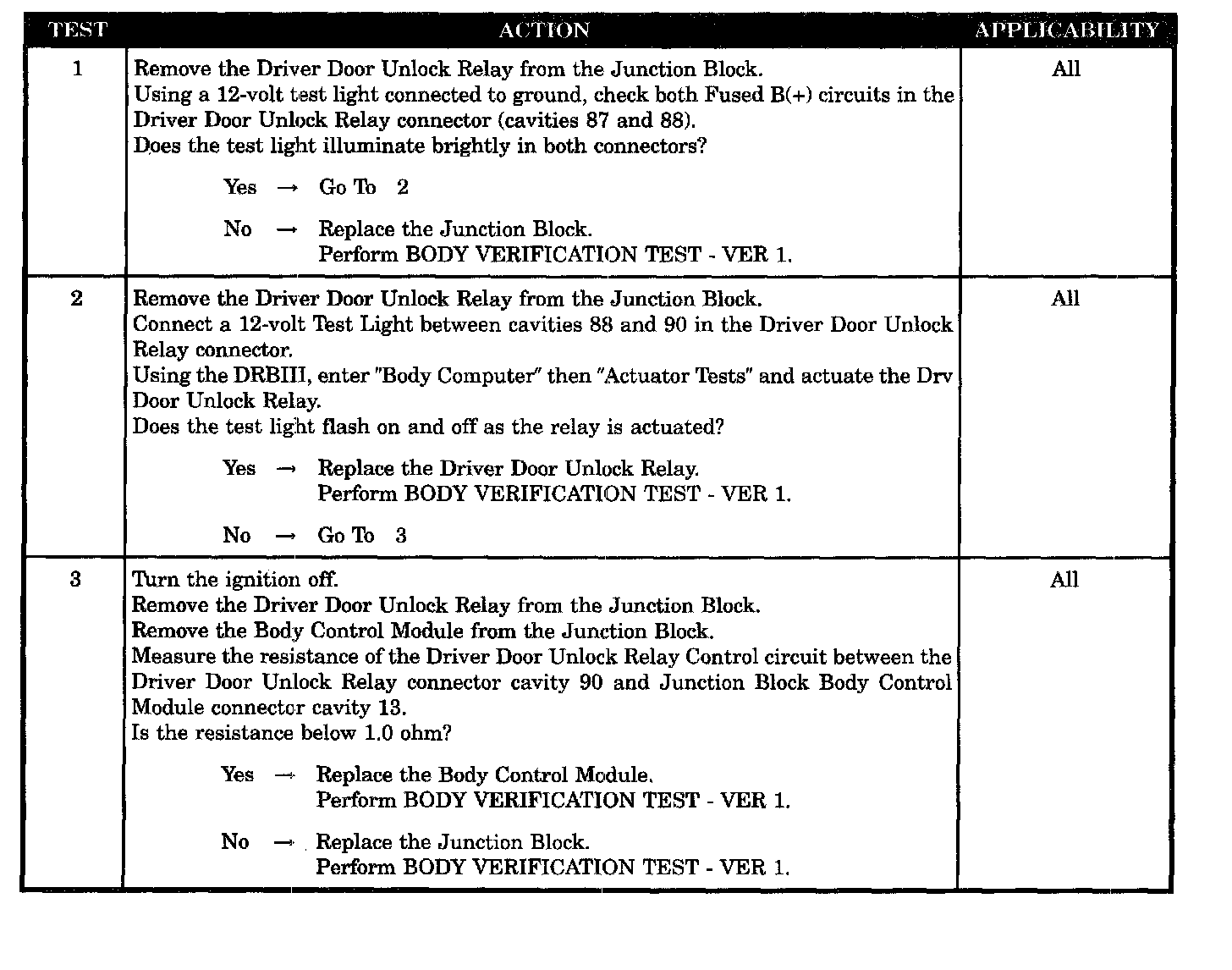

Test 1 - 3:






SYMPTOM
DRIVER DOOR FAILS TO UNLOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Driver door unlock relay fused B(+) open
- Relay control circuit check
- Junction block - driver door unlock relay control circuit open
- Body control module - driver door unlock relay driver open
