One Door Fails to Lock and Unlock From Any Switch

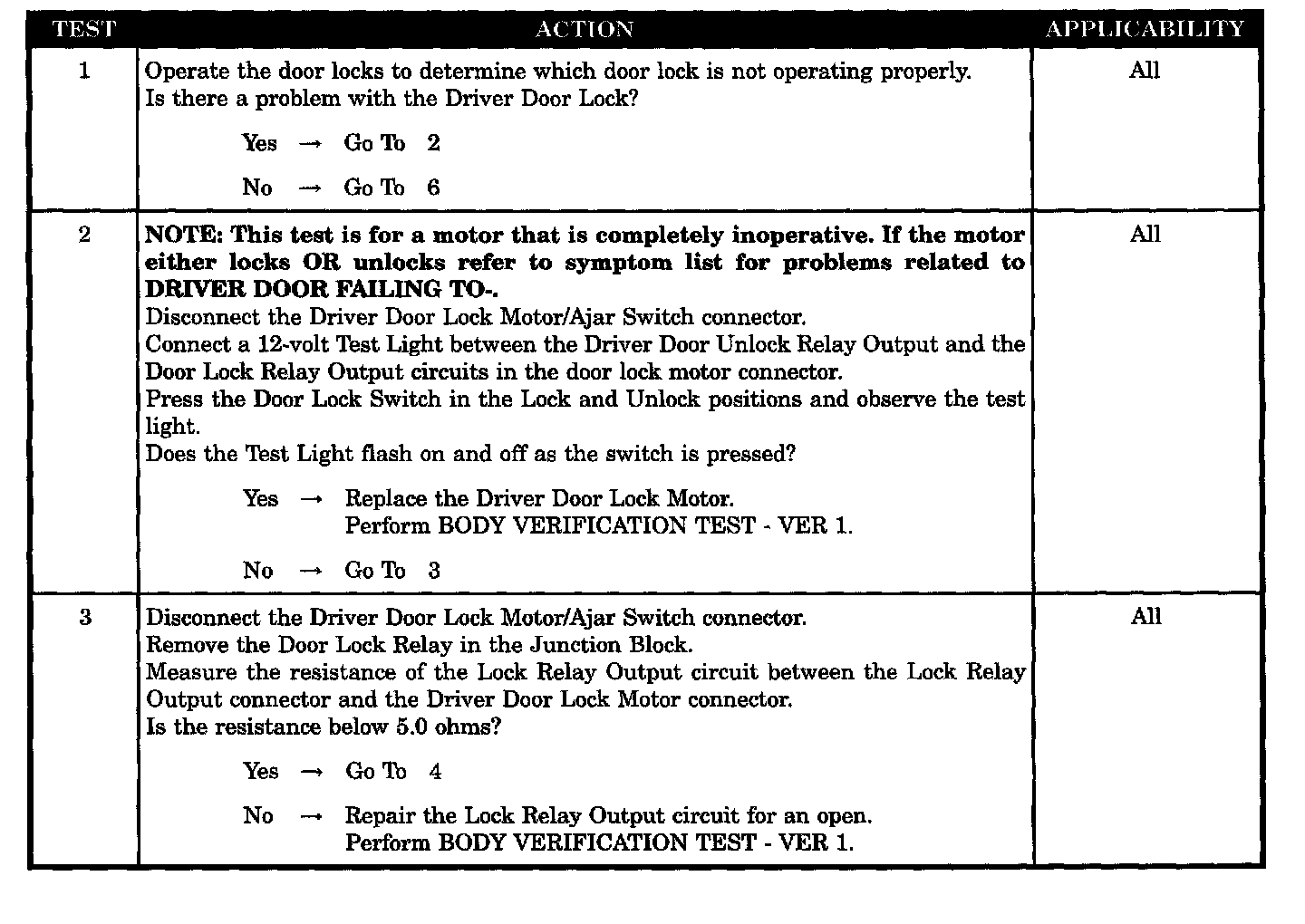

Test 1 - 3:

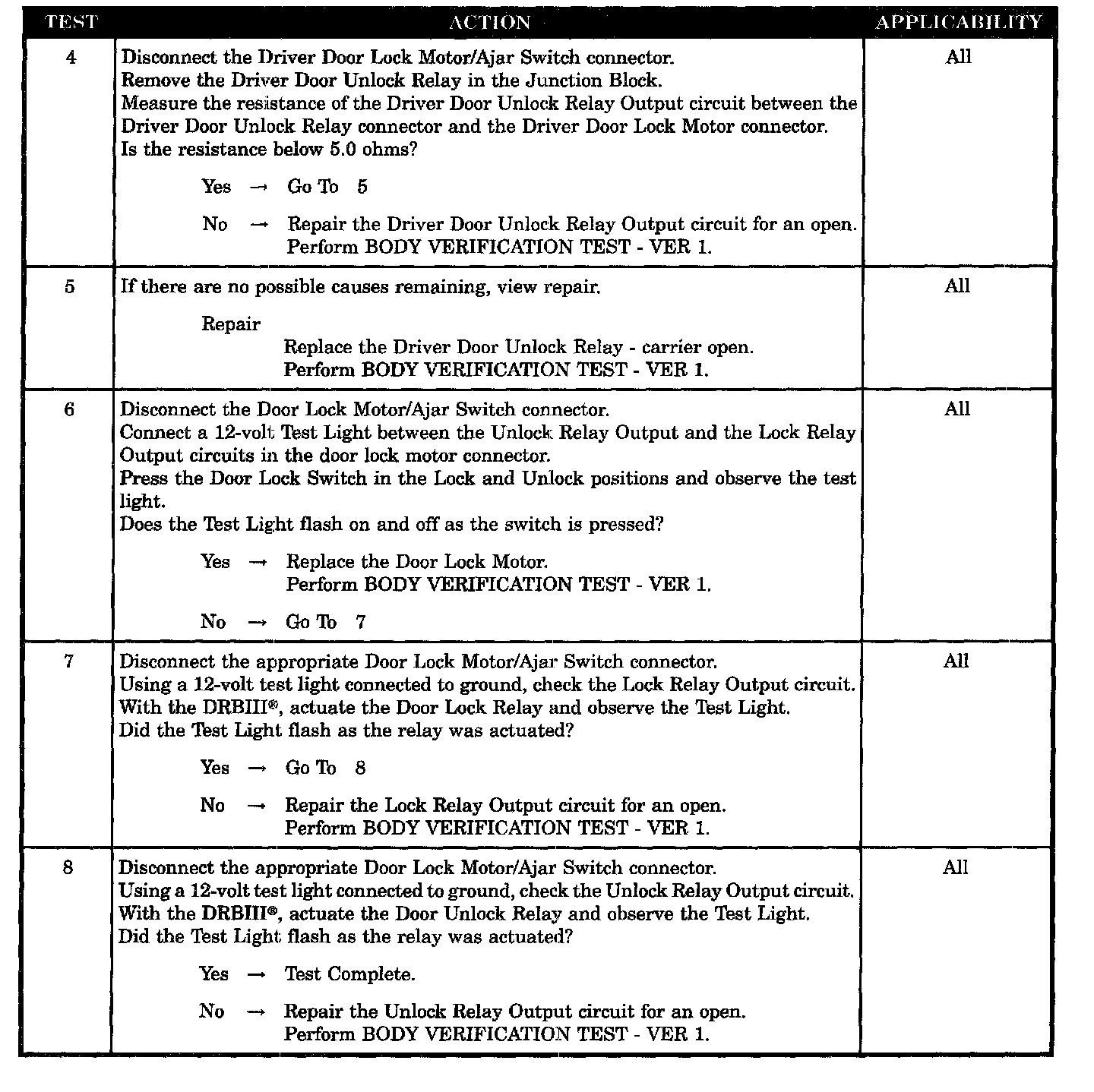

Test 4 - 8:






SYMPTOM
ONE DOOR FAILS TO LOCK AND UNLOCK FROM ANY SWITCH

POSSIBLE CAUSES
- Door lock motor open
- Lock relay output circuit open
- Driver door lock motor - open
- Driver unlock relay output circuit open
- Lock relay output circuit open
- Unlock relay output circuit open
- Driver door unlock relay open
