Horn Fails to Sound When Alarm Is Tripped

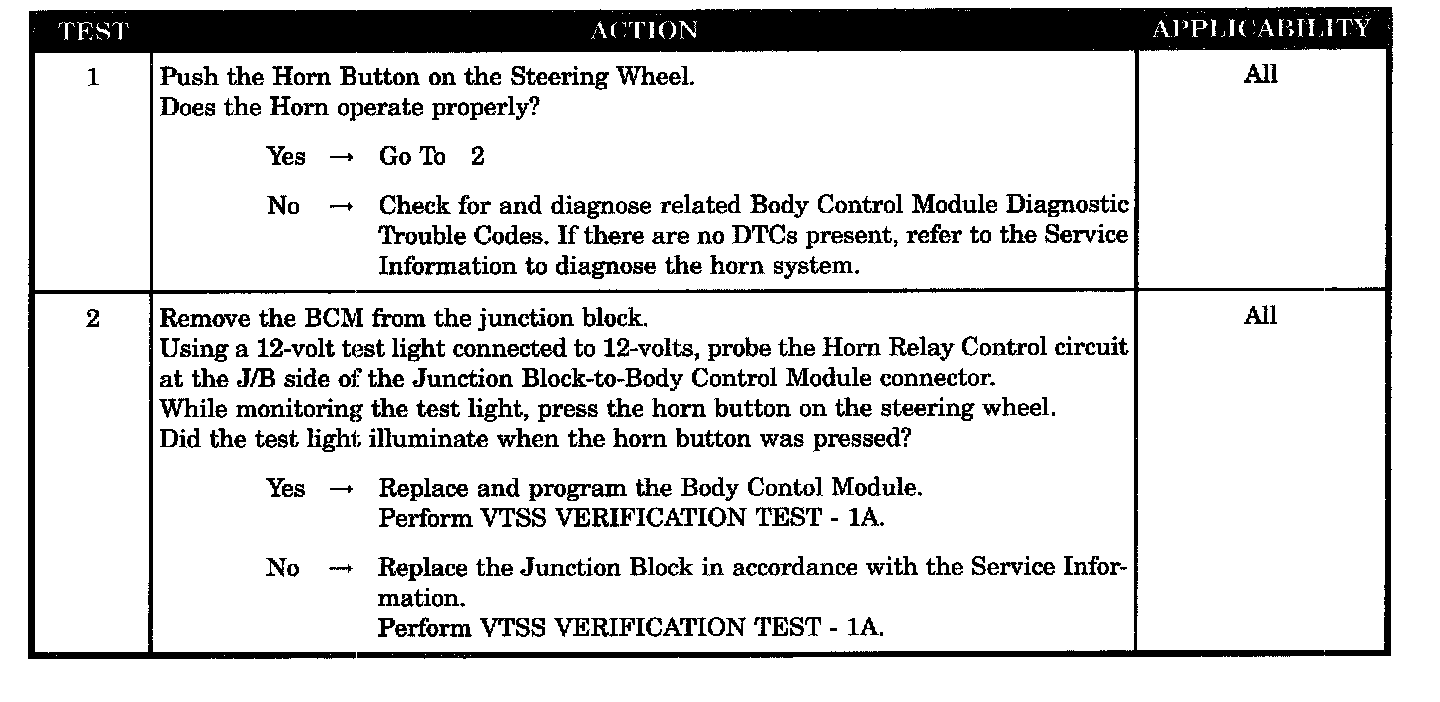

Test 1 - 2:
SYMPTOM
HORN FAILS TO SOUND WITH ALARM TRIPPED
POSSIBLE CAUSES
-
Check horn operation
-
Junction block - open
horn relay
control circuit
-
Body control module
- open
horn relay
control circuit
