Wiper Not Working In the Low Speed

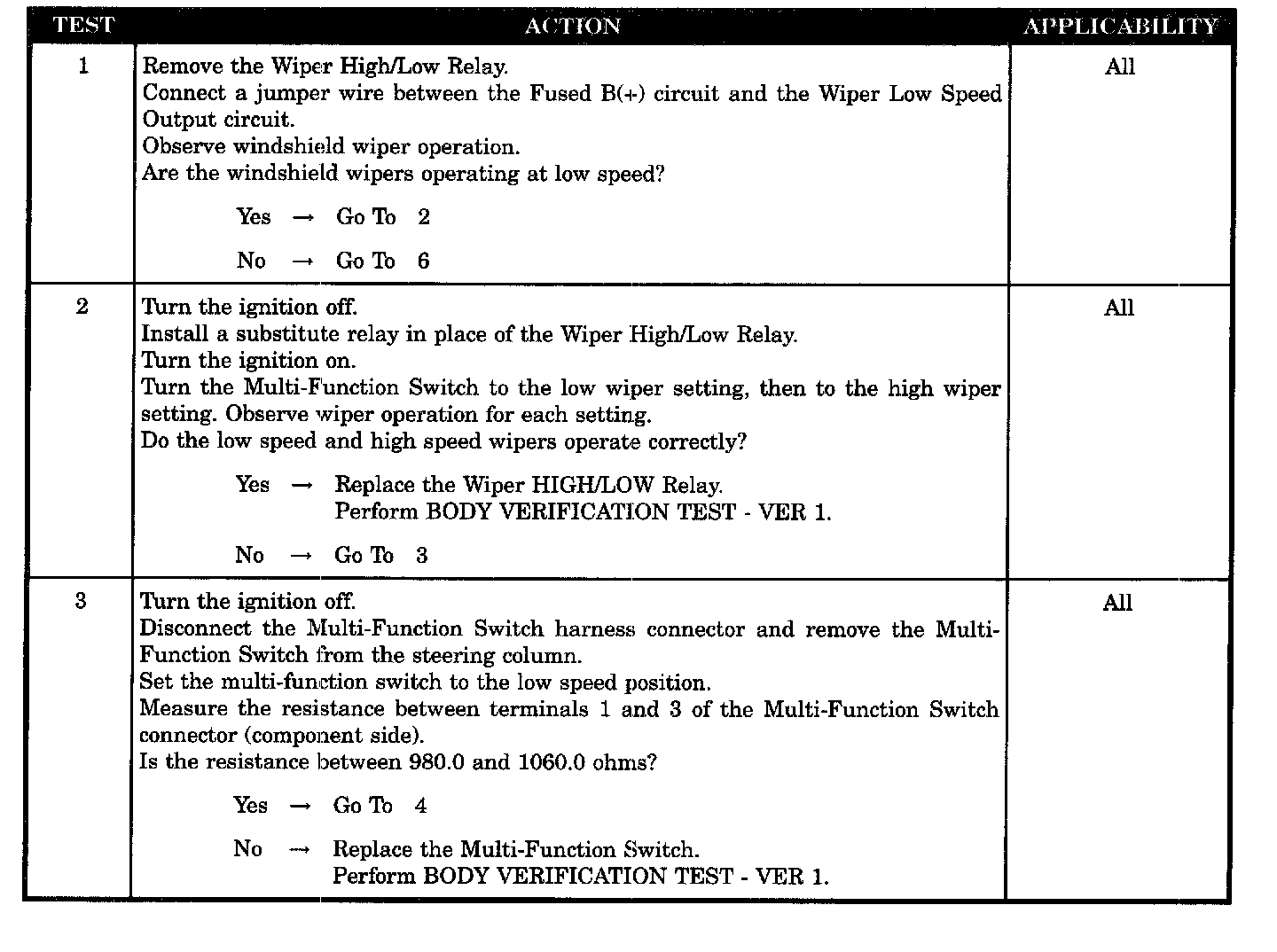

Test 1 - 3:

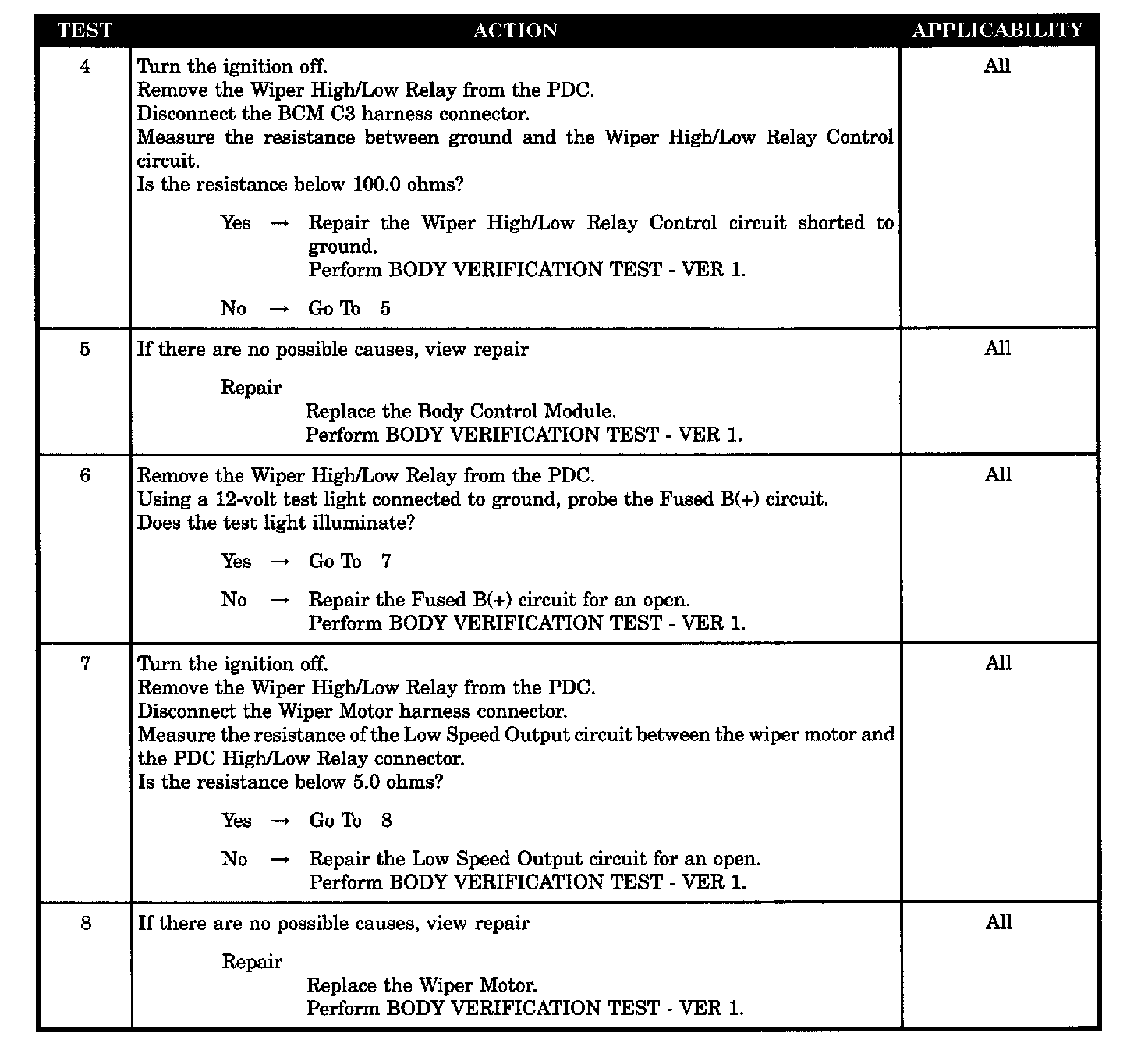

Test 4 - 8:






SYMPTOM
WIPER NOT WORKING IN THE LOW SPEED

POSSIBLE CAUSES
- Wiper high/low relay
- Wiper high/low relay control circuit shorted to ground
- Multi-function switch low switch open
- Fused B(+) Circuit open
- Low speed output circuit open
- Wiper motor
- BCM
