Courtesy Lamps Inoperative - All Lamps

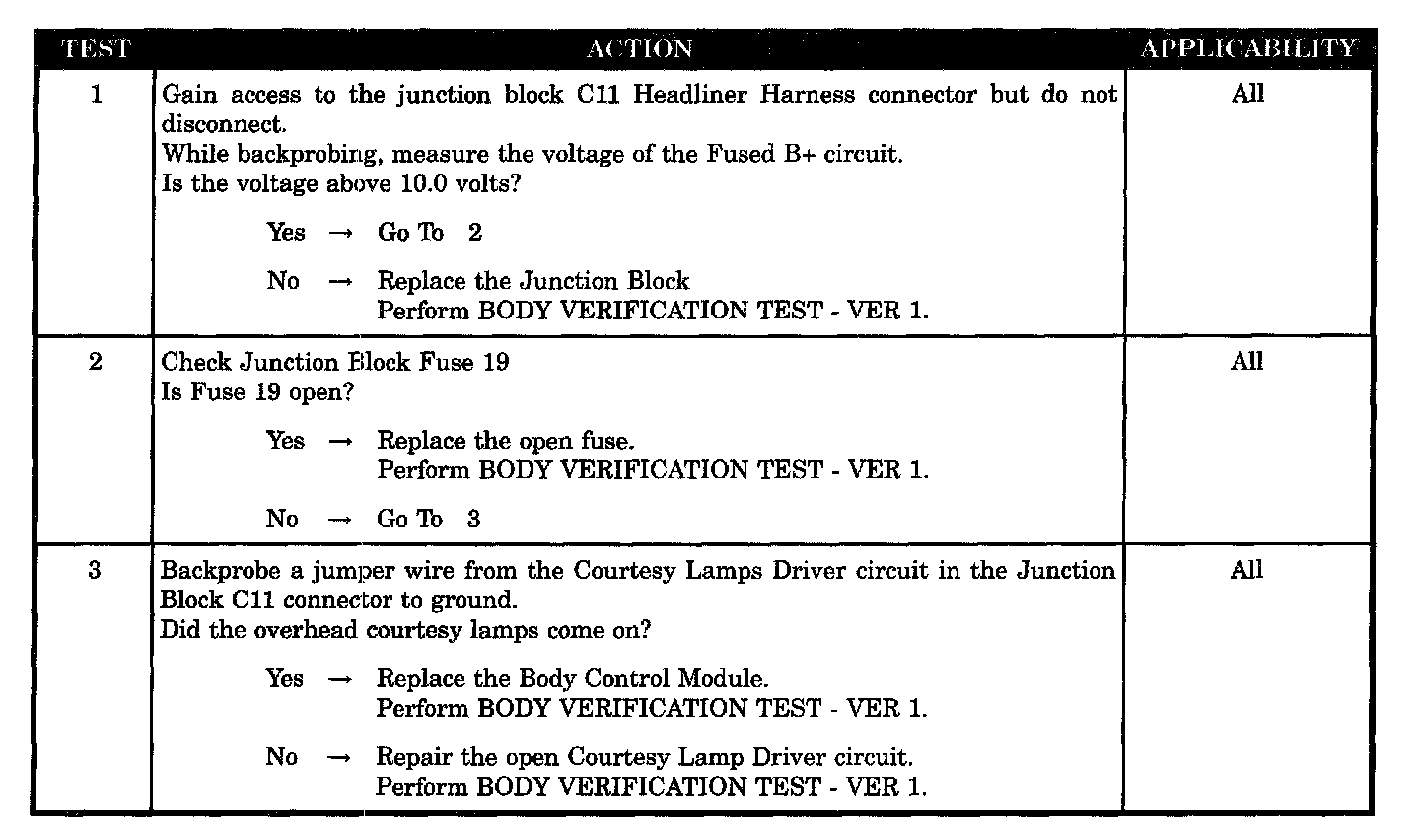

Test 1 - 3:






SYMPTOM
COURTESY LAMPS INOPERATIVE - ALL LAMPS

POSSIBLE CAUSES
- Fuse 19 open
- Junction block
- Body control module
- Courtesy lamps driver circuit open
