Low Beam Headlamps Will Not Turn On

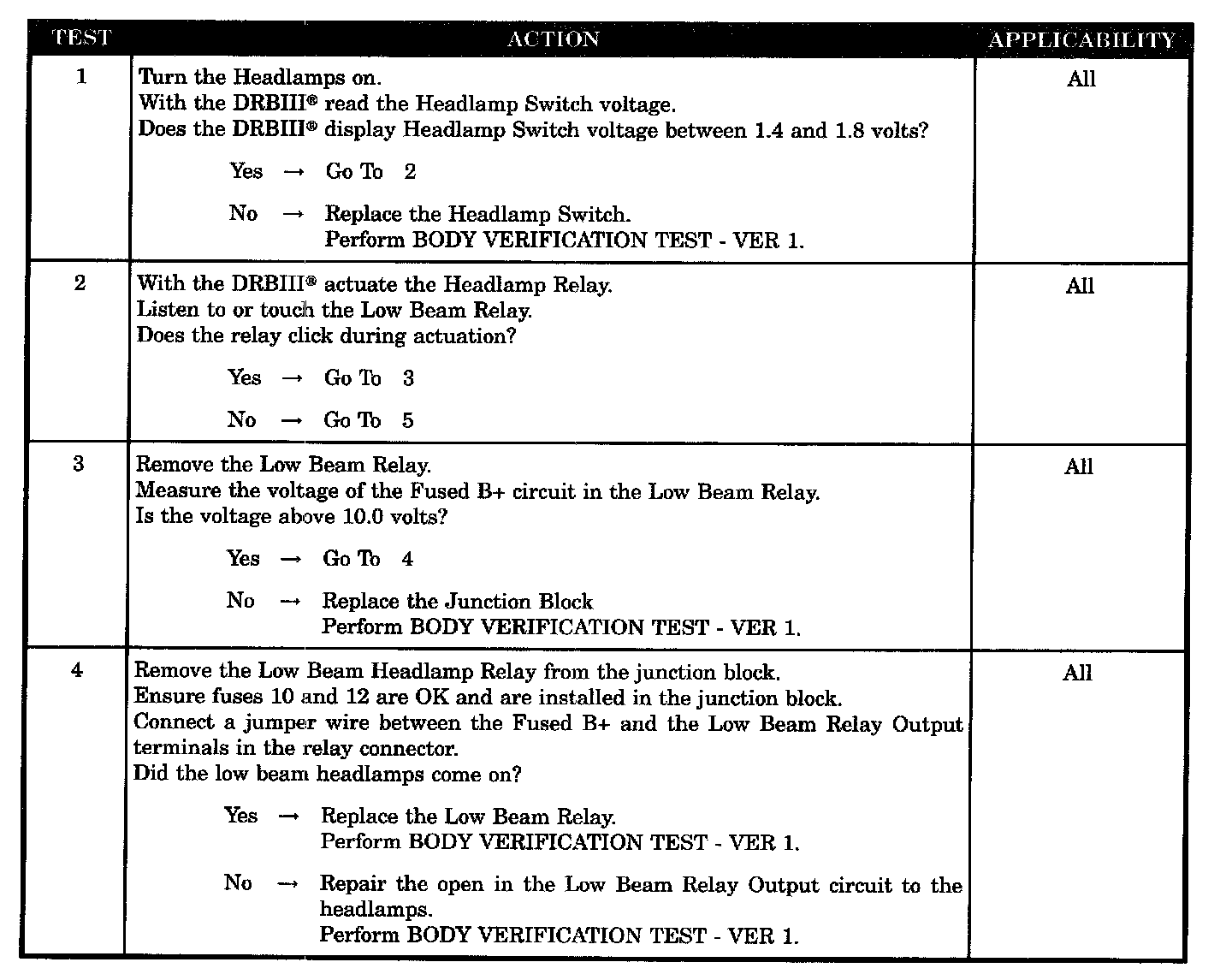

Test 1 - 4:

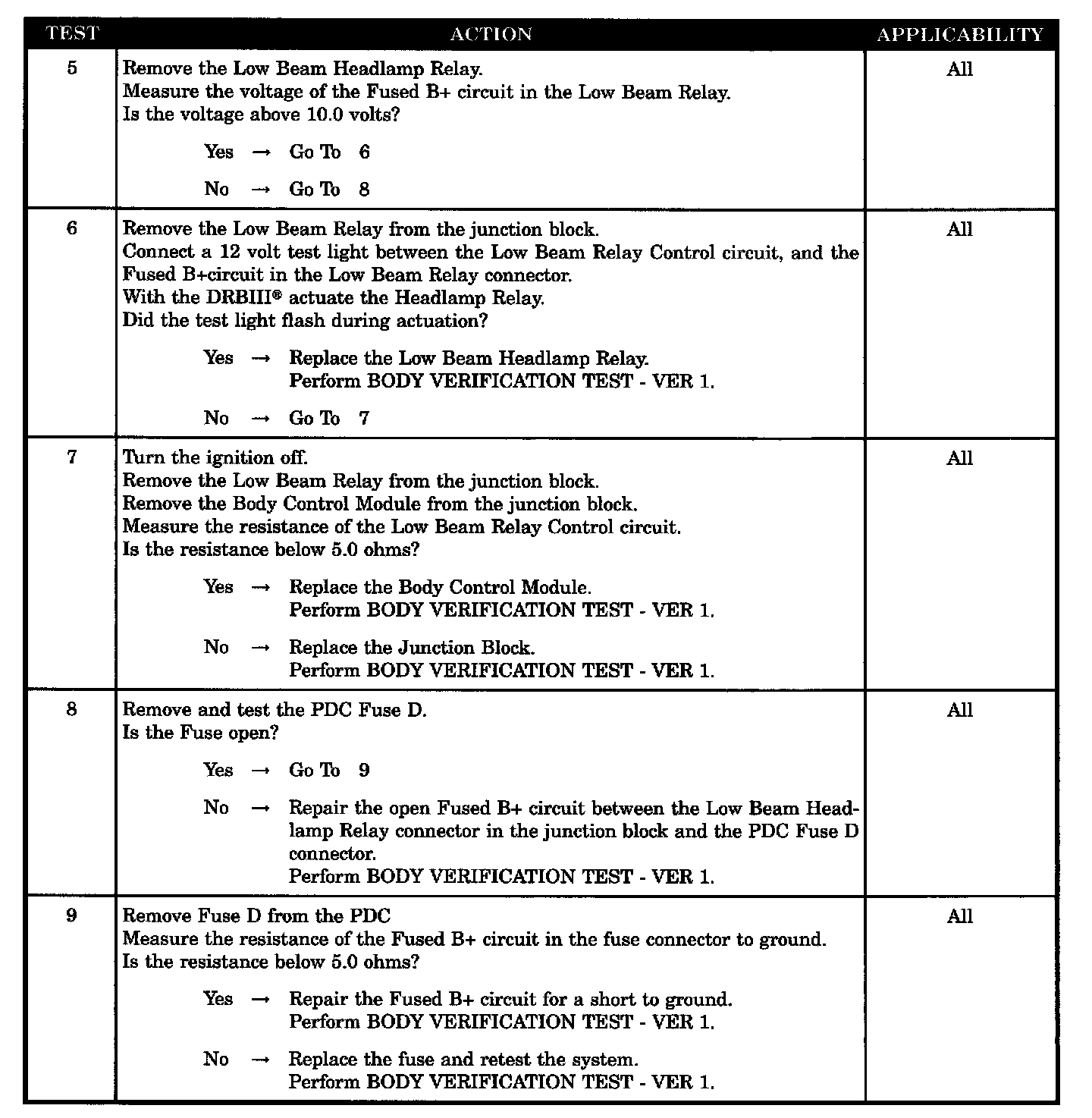

Test 5 - 9:

SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Headlamp switch
- Junction block
- Low beam headlamp relay
- Low beam relay
- Low beam headlamp relay
- Junction block
- Body control module
- Open fused B+ to junction block
- B+ circuit fuse
- Fused B+ circuit shorted to ground
