Courtesy Lamps Inoperative - Overhead Lamps

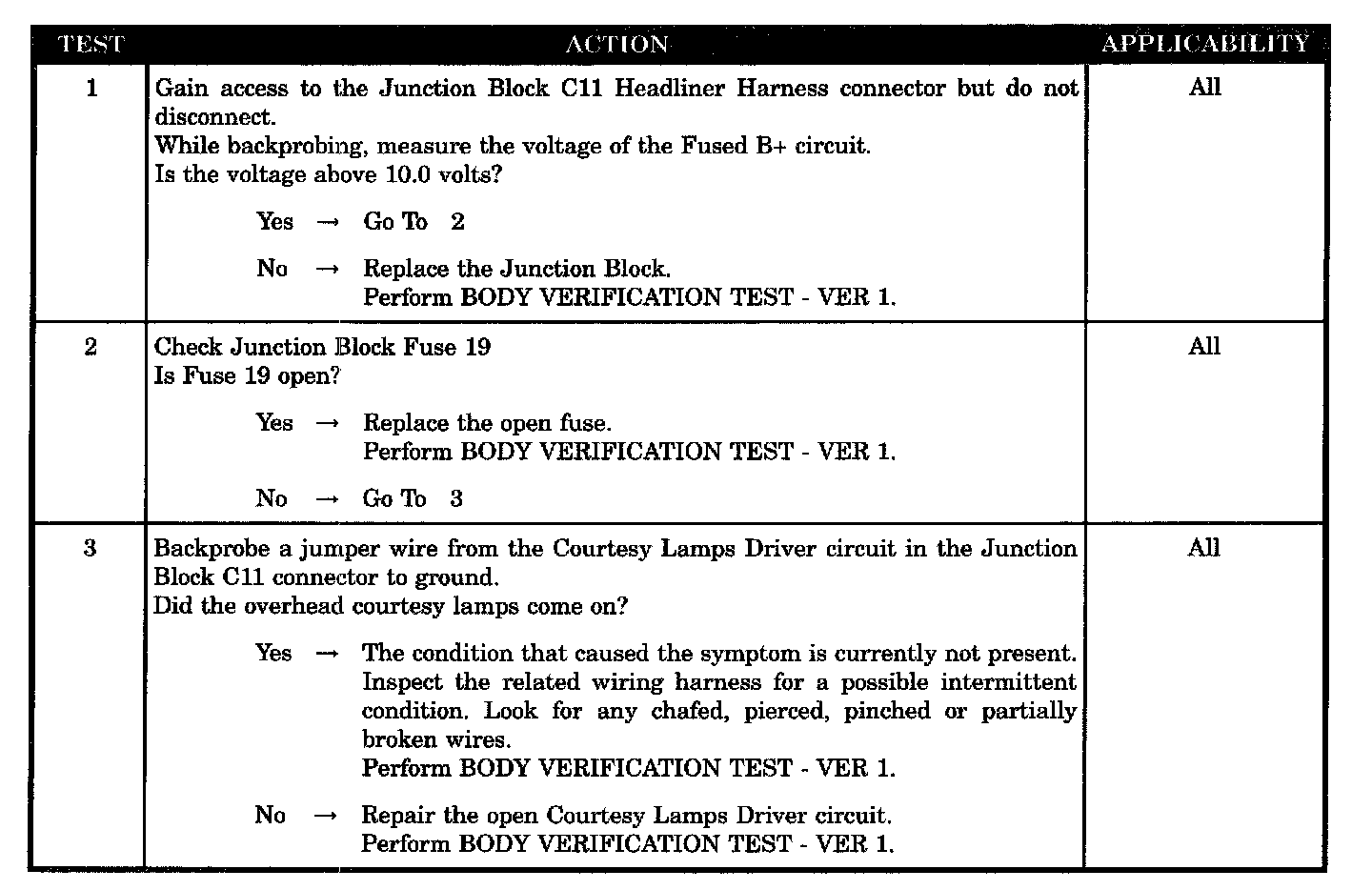

Test 1 - 3:






SYMPTOM
COURTESY LAMPS INOPERATIVE - OVERHEAD LAMPS

POSSIBLE CAUSES
- Junction block open
- Courtesy lamp driver circuit open
- Fuse 19 open
- Intermittent condition
