Wiper No Wipe After Wash

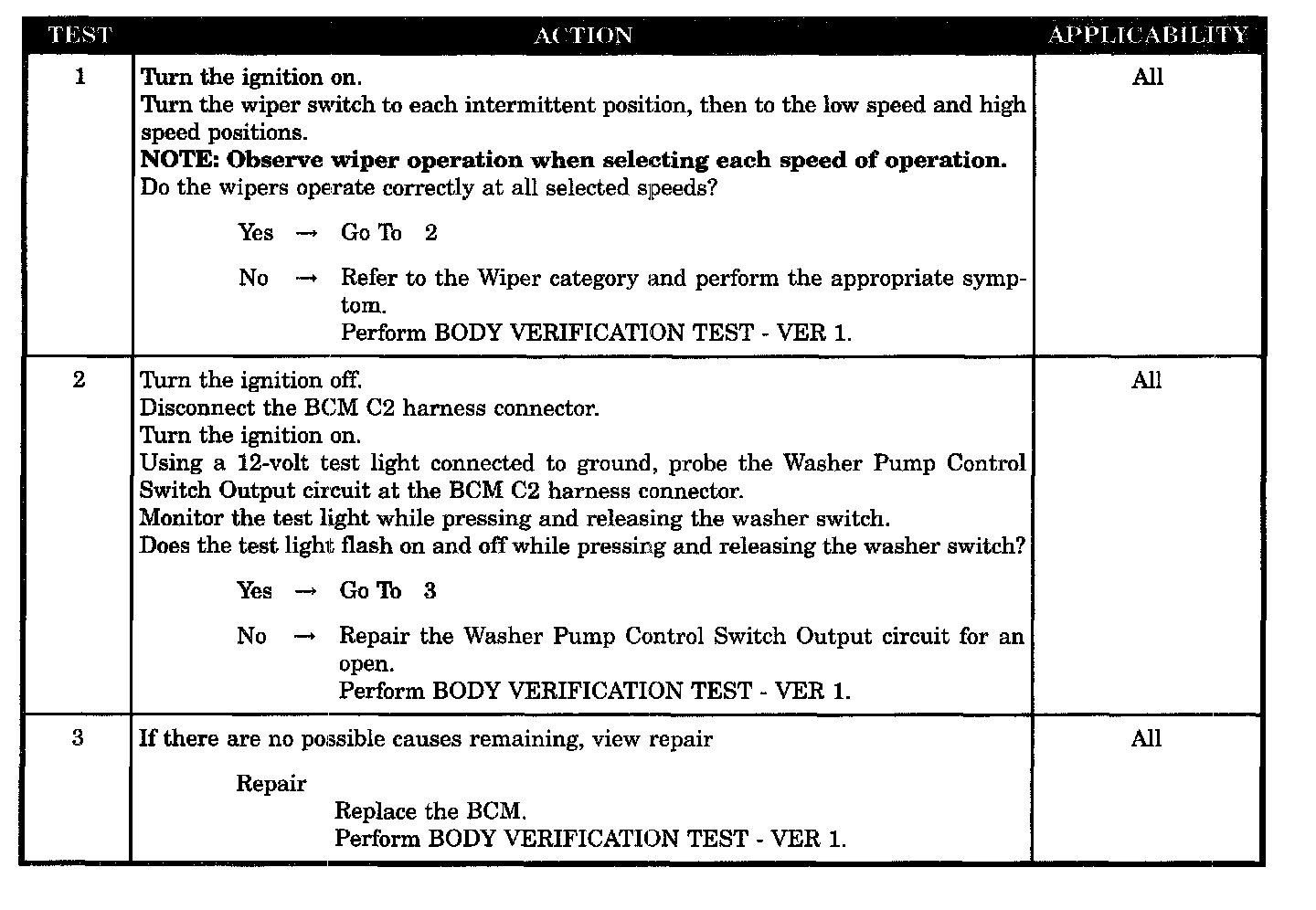

Test 1 - 3:






SYMPTOM
WIPER NO WIPE AFTER WASH

POSSIBLE CAUSES
- Wiper operation
- Washer pump control switch output circuit open
- BCM
