Key In Ignition and Driver's Door Open Chime Inoperative

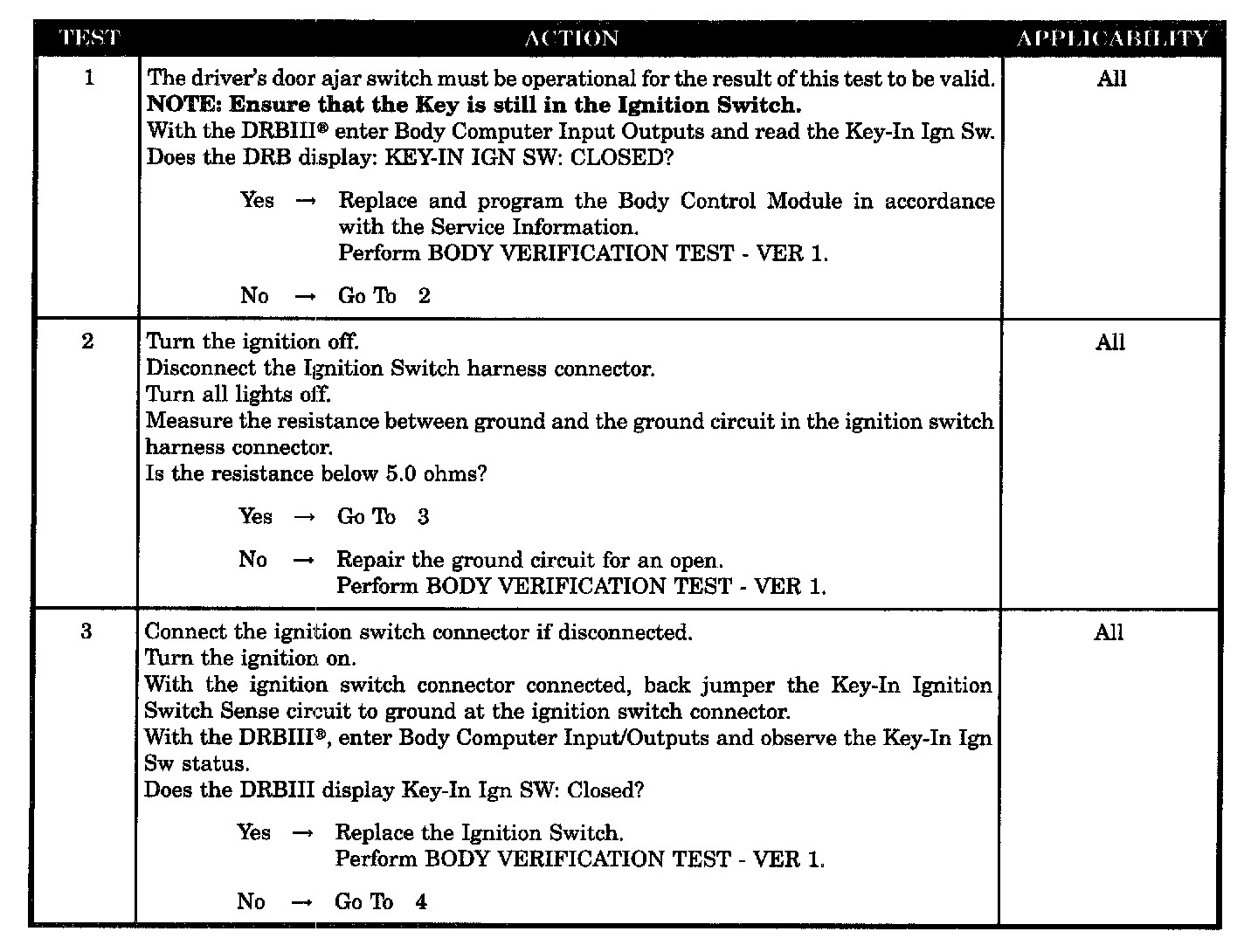

Test 1 - 3:

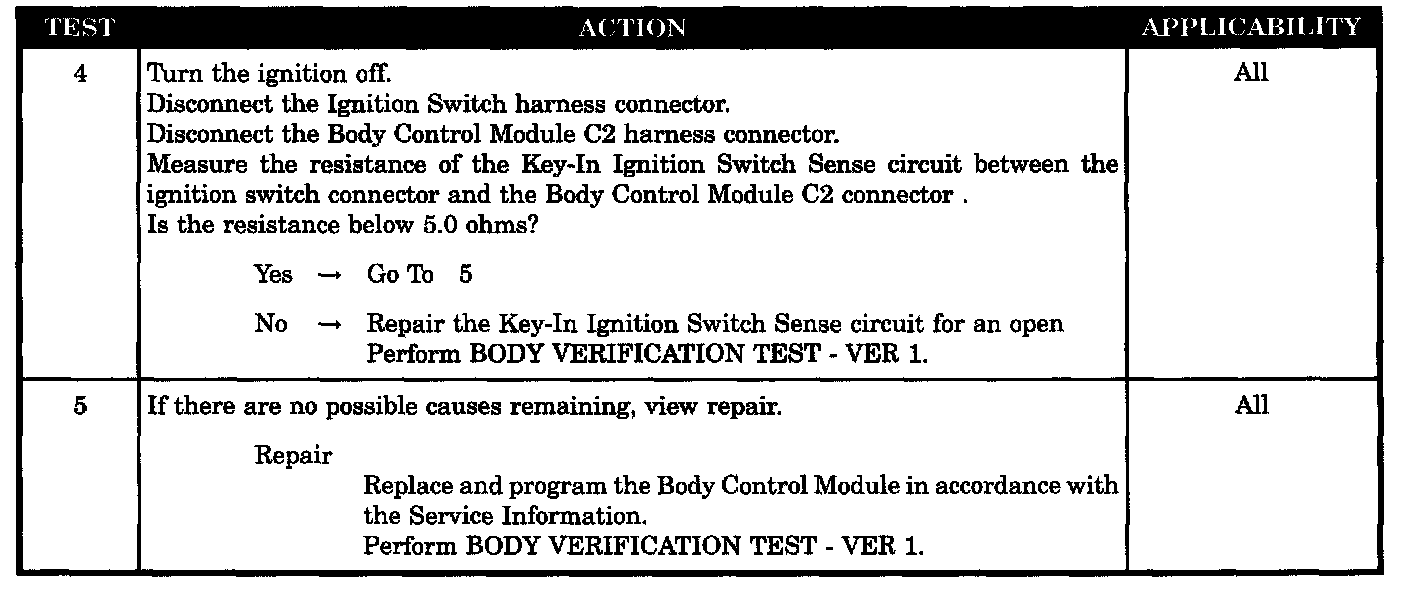

Test 4 - 5:

SYMPTOM
KEY IN IGNITION AND DRIVER'S DOOR OPEN CHIME INOPERATIVE

POSSIBLE CAUSES
- Observe the key-in ignition switch status
- Key-in ignition switch open
- Key-in ignition switch ground circuit open
- Key-in ignition switch sense circuit open
- Body control module - incorrect key-in ignition switch status
