Body Side Inline Connector End View (C201)

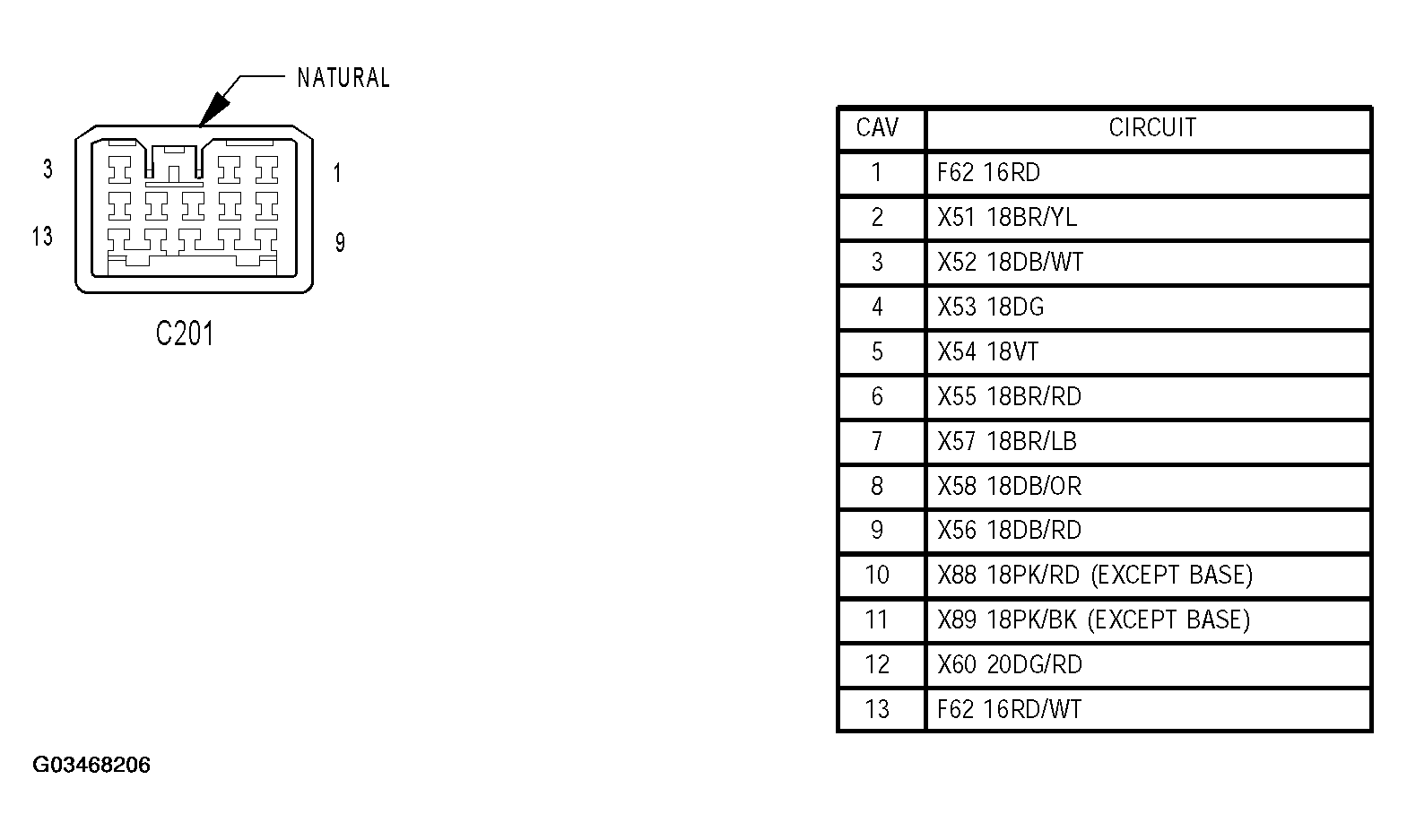

Fig 1: Body Side Inline Connector End View (C201)
G03468206Courtesy of DAIMLERCHRYSLER CORP.
