Diagnostic Procedure

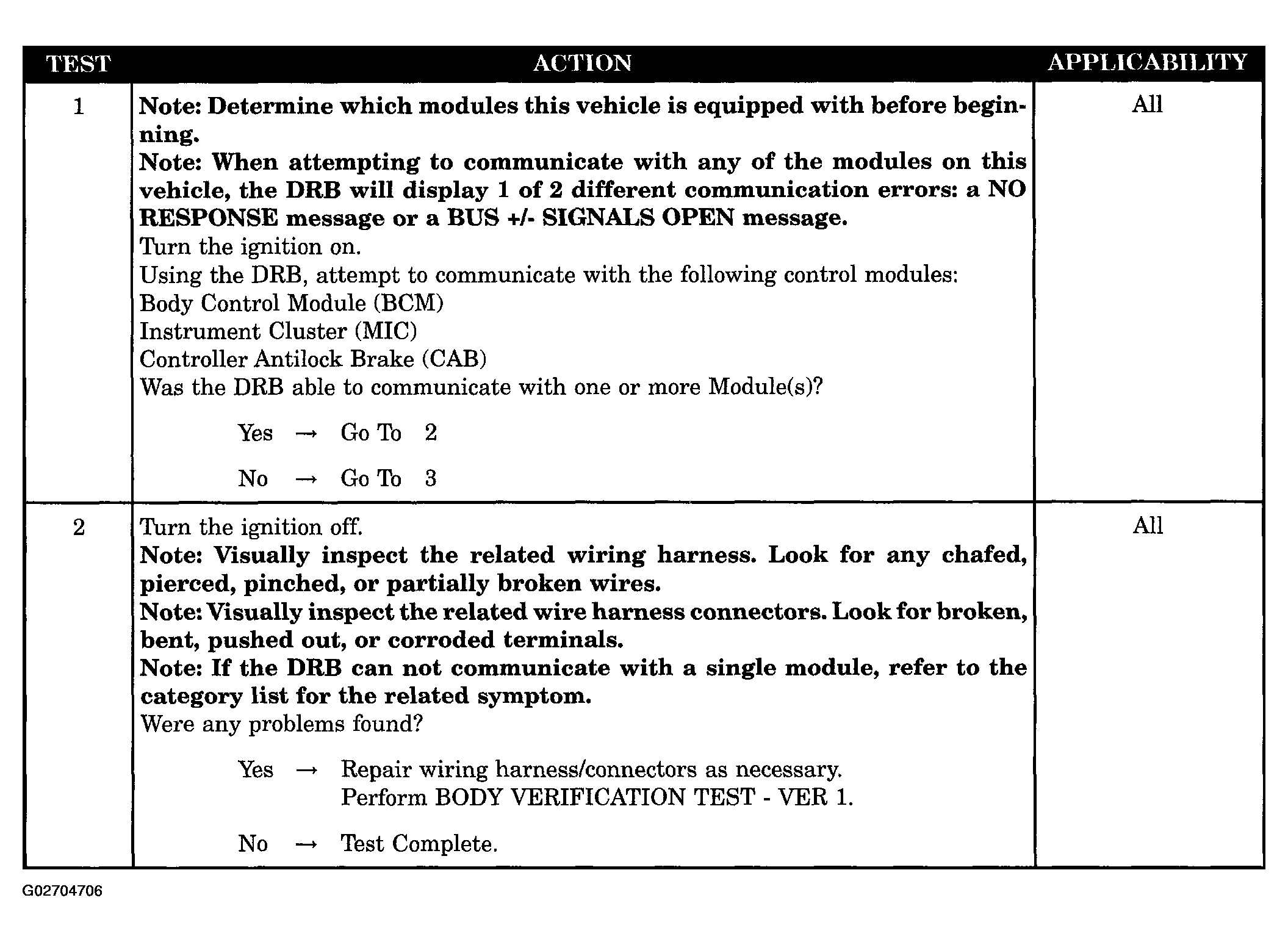

Fig 1: PCI BUS Communication Failure - Diagnostic Procedure (1 Of 3)
G02704706Courtesy of DAIMLERCHRYSLER CORP.

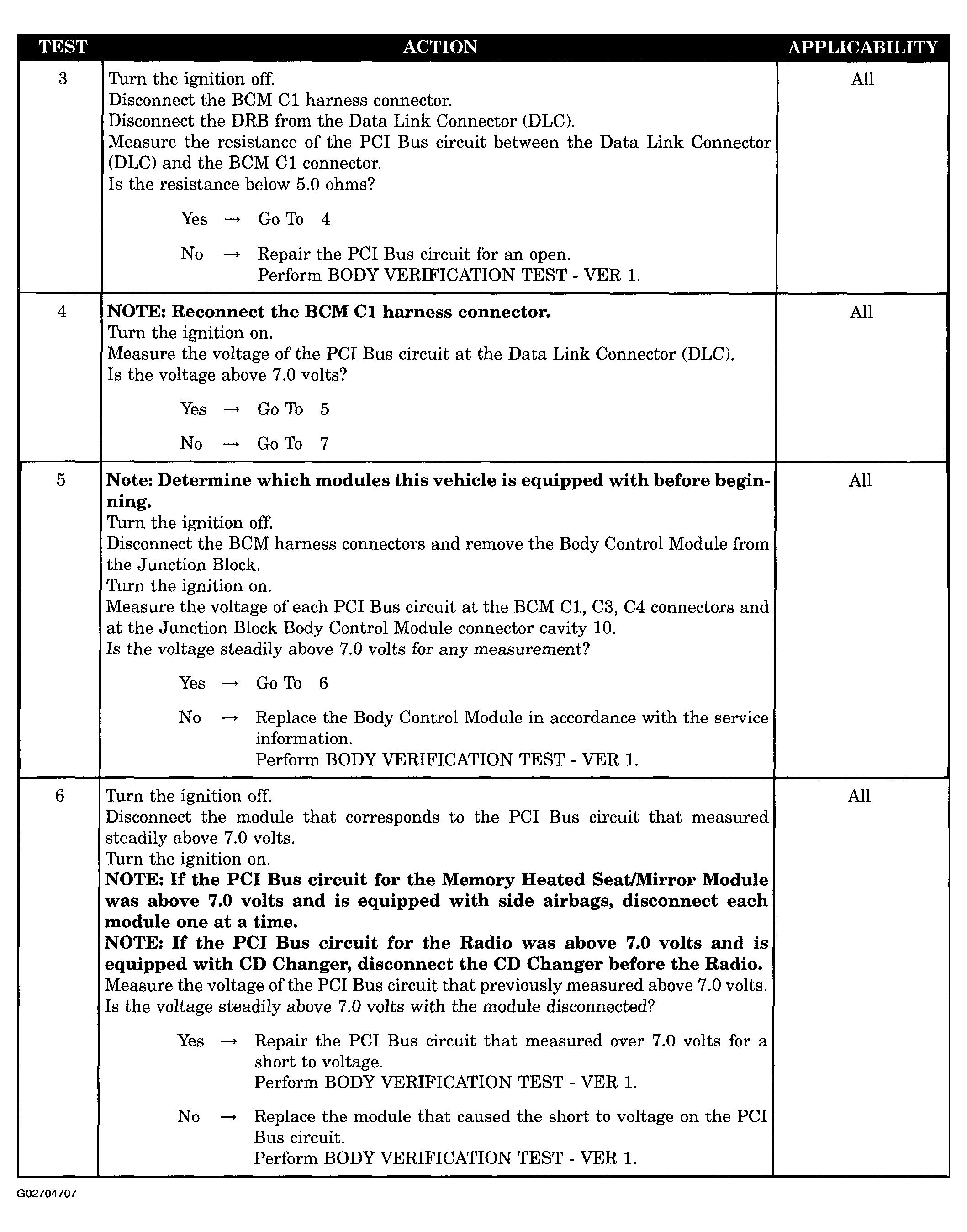

Fig 2: PCI BUS Communication Failure - Diagnostic Procedure (2 Of 3)
G02704707Courtesy of DAIMLERCHRYSLER CORP.

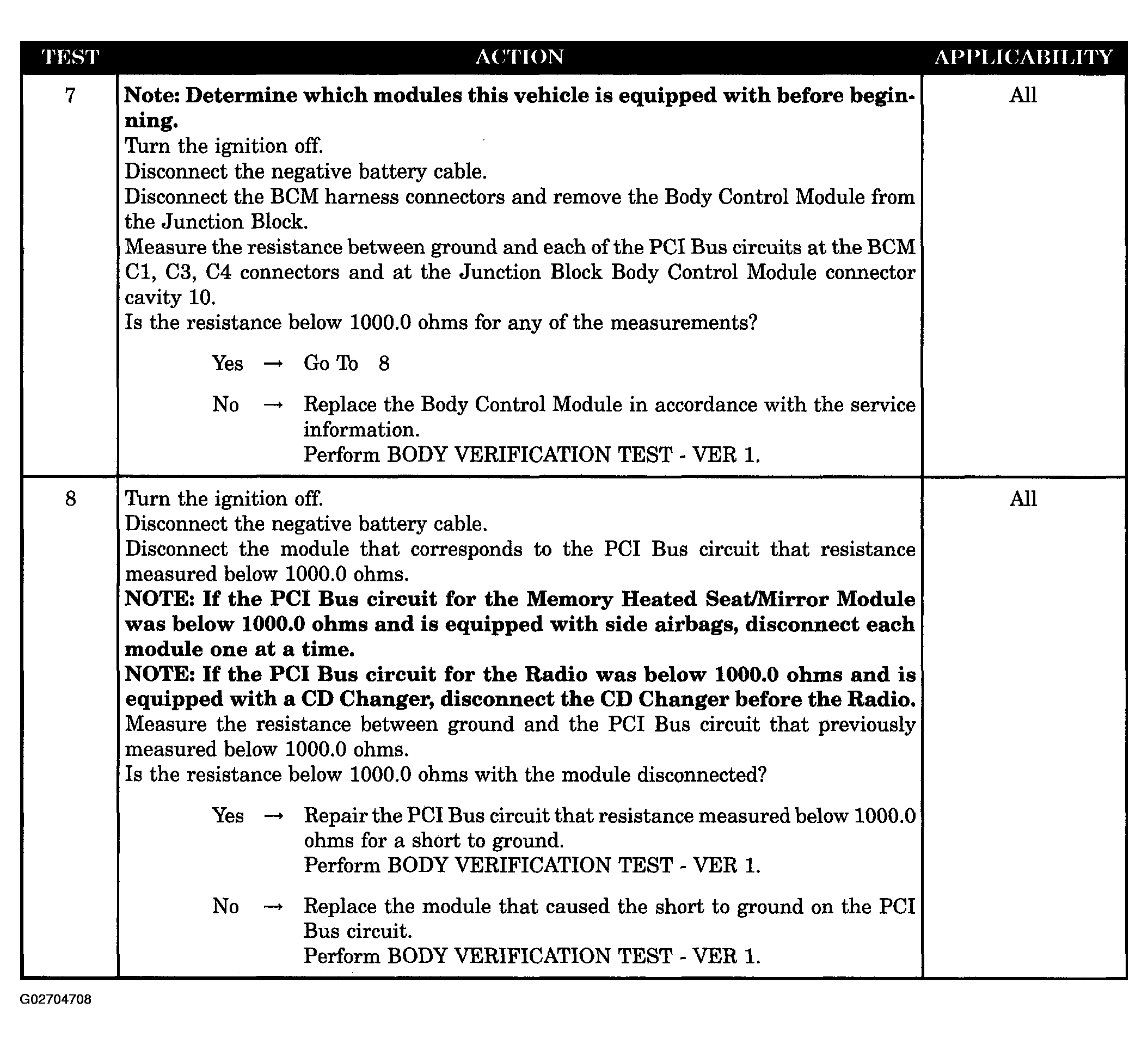

Fig 3: PCI BUS Communication Failure - Diagnostic Procedure (3 Of 3)
G02704708Courtesy of DAIMLERCHRYSLER CORP.
