Input/Output Speed Sensors/TRS Component Locations

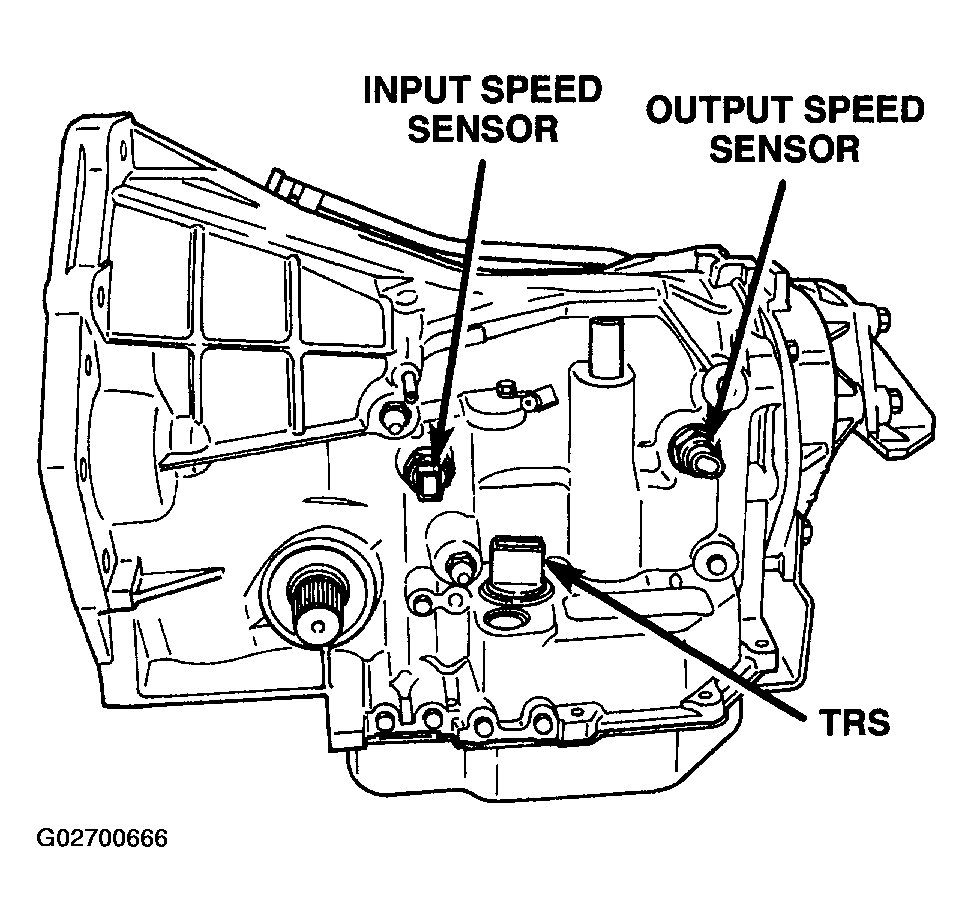

Fig 1: Locating TRS, Input And Output Speed Sensors
G02700666Courtesy of DAIMLERCHRYSLER CORP.
