Symptom: *COMPASS/TEMP MODULE INOPERATIVE: Testing

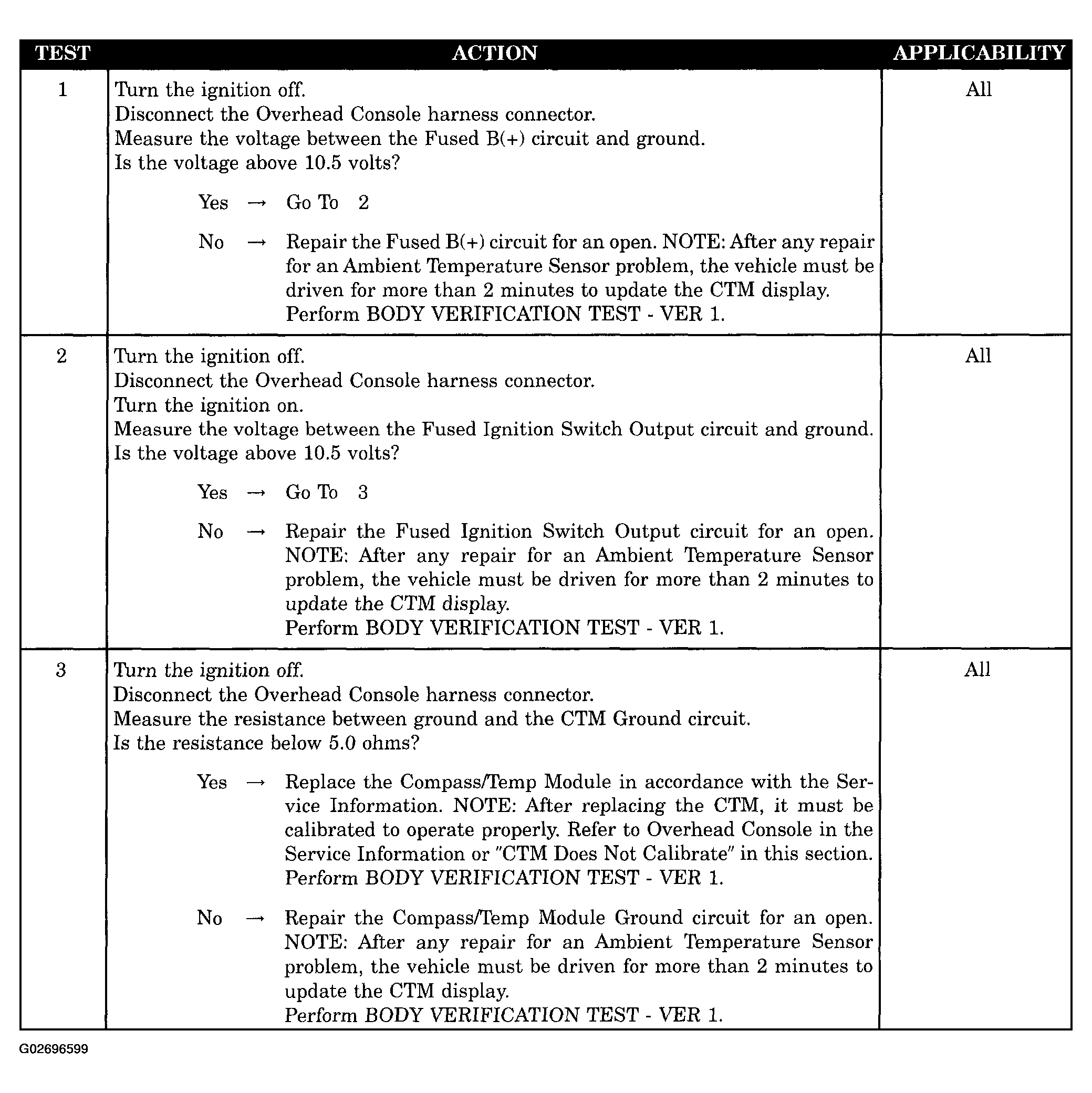

Fig 1: Testing Compass/Temp Module Inoperative

G02696599

Courtesy of DAIMLERCHRYSLER CORP.
