Schematic Diagrams: Communication

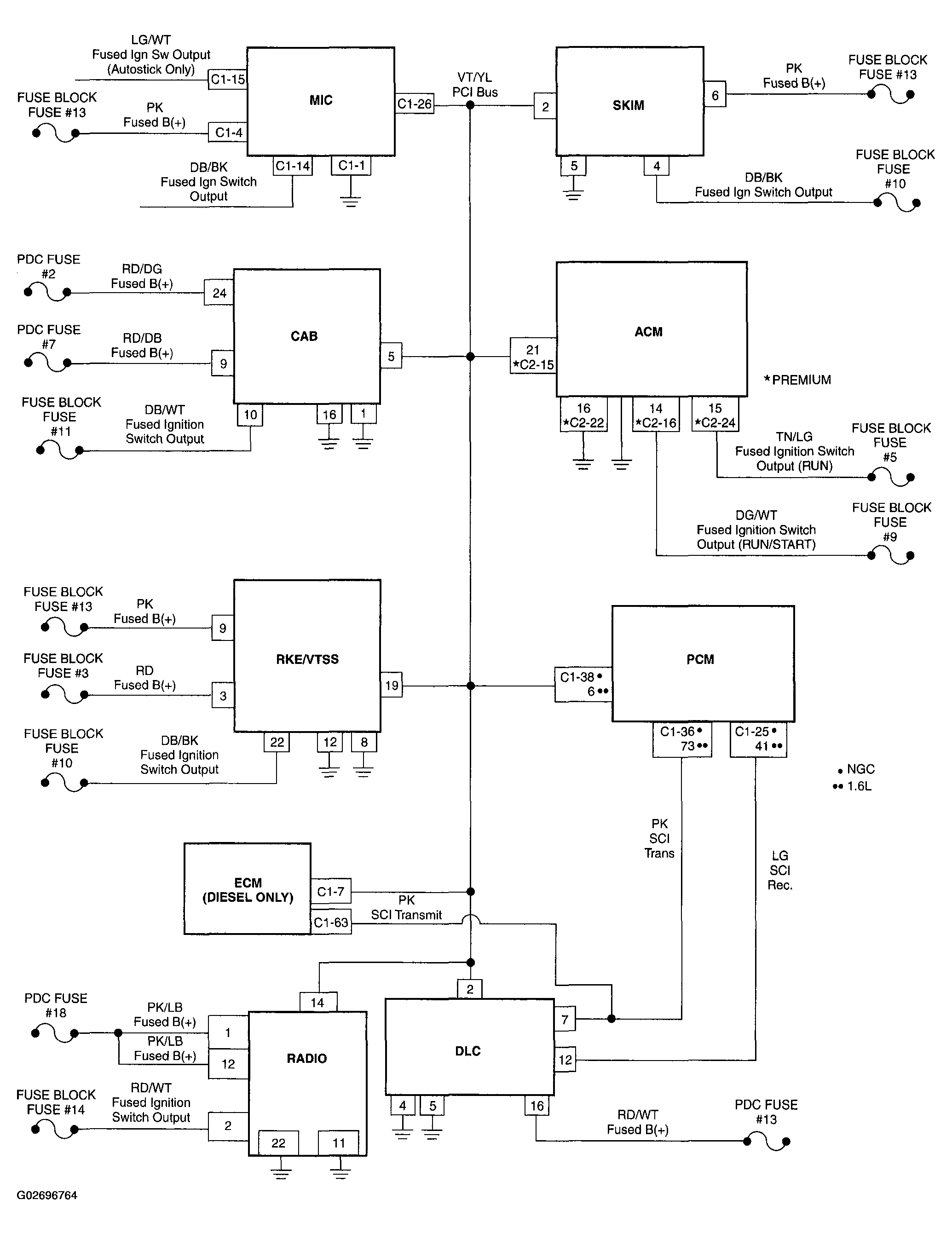

Fig 1: Schematic Diagram Communication
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
