Liftgate Lock Motor: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove liftgate trim panel.
  3. Disconnect motor wire harness connector.
  4. Remove liftgate lock motor from liftgate (Fig 1 ) by gently unsnapping.

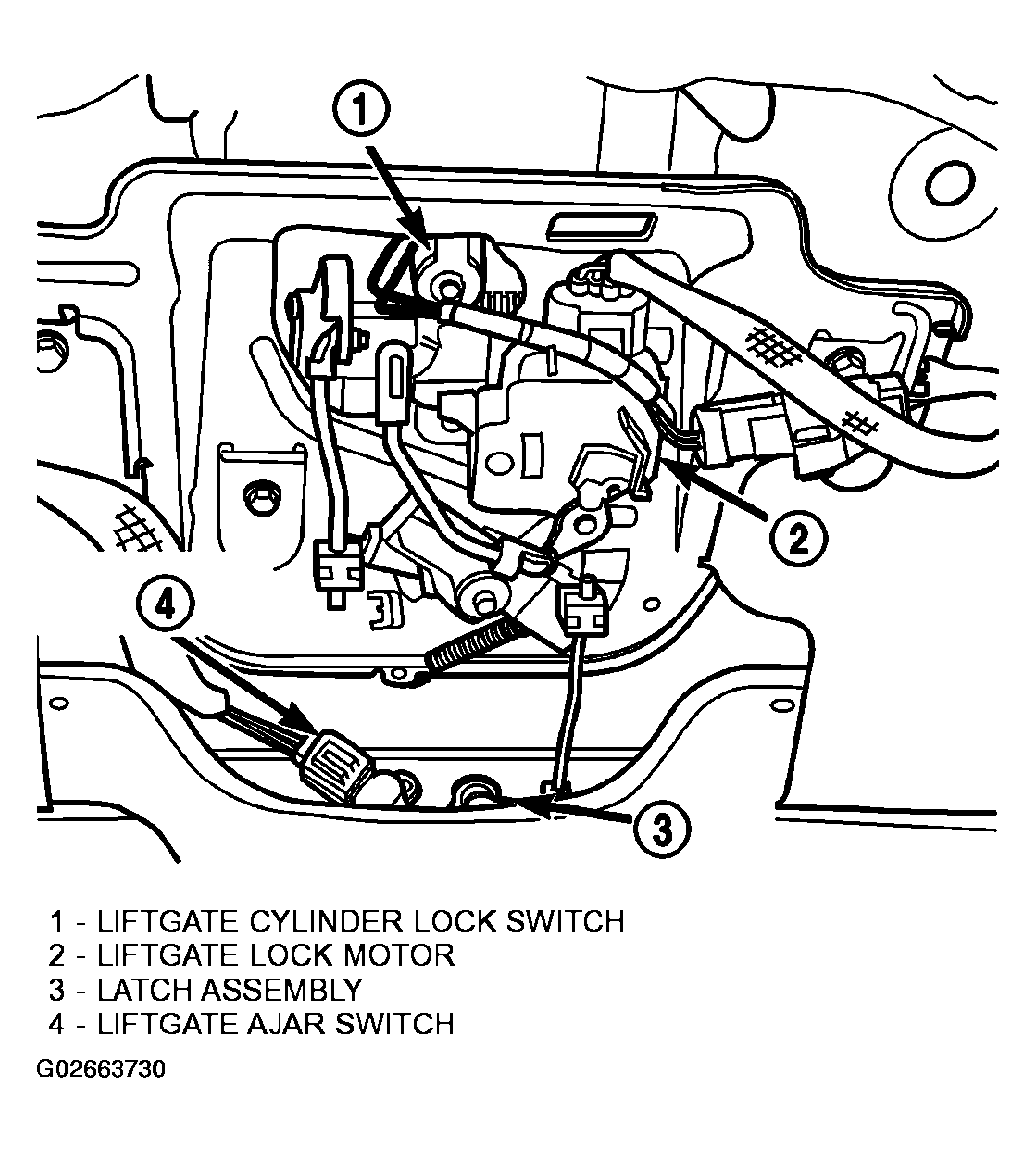

    Fig 1: Identifying Liftgate Lock Motor Location
    G02663730Courtesy of DAIMLERCHRYSLER CORP.
