INSTALLATION - 2.0, 2.4, and 2.4L TURBO

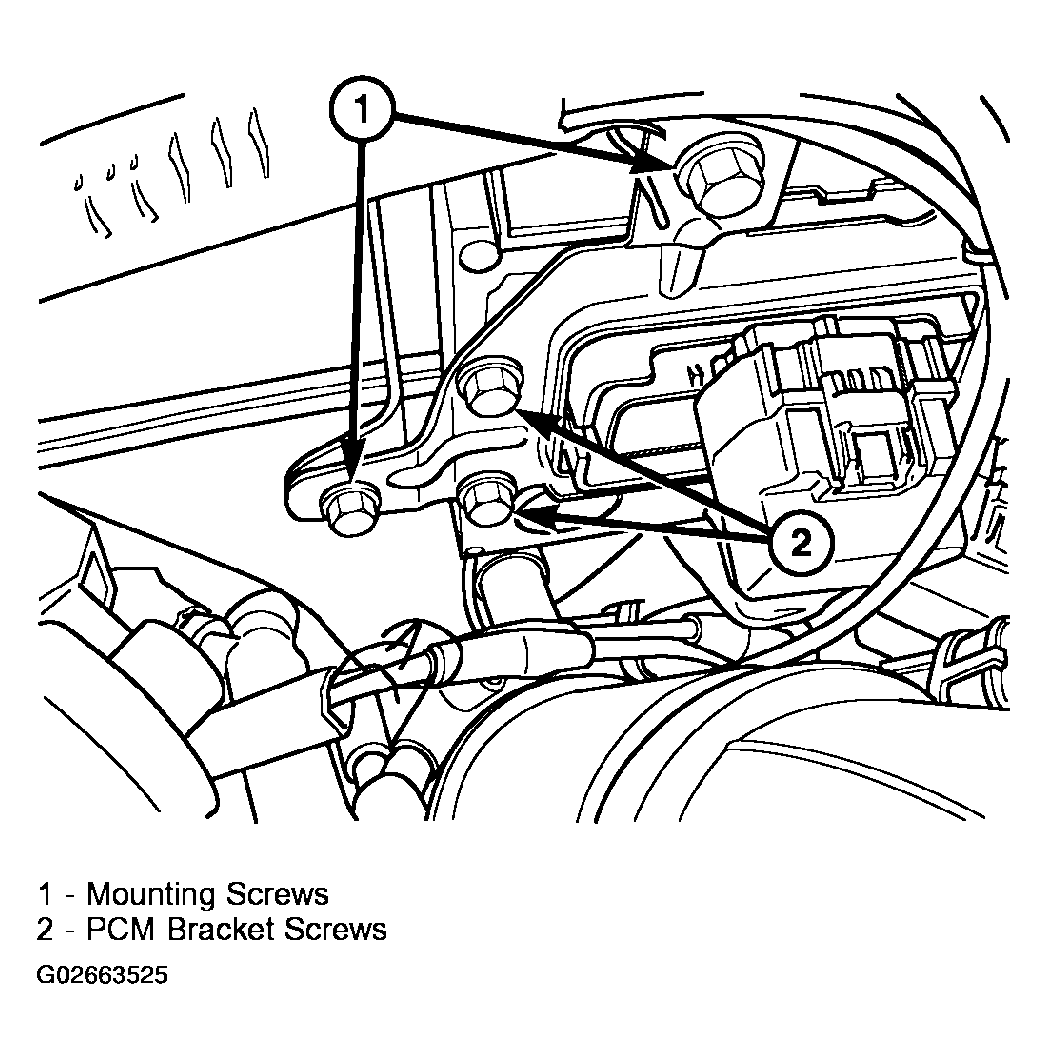

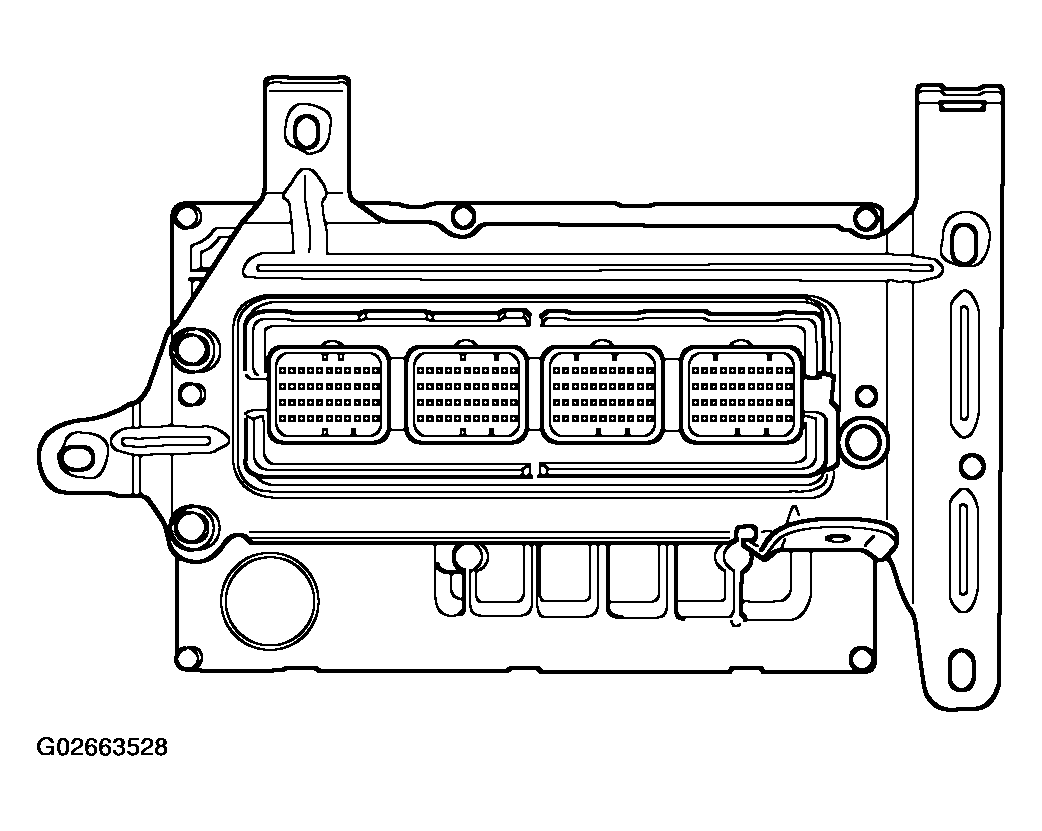

  1. Install the PCM bracket and 3 screws to the PCM (Fig. Figure ) and tighten to 11.8 N.m (105 in. lbs.).

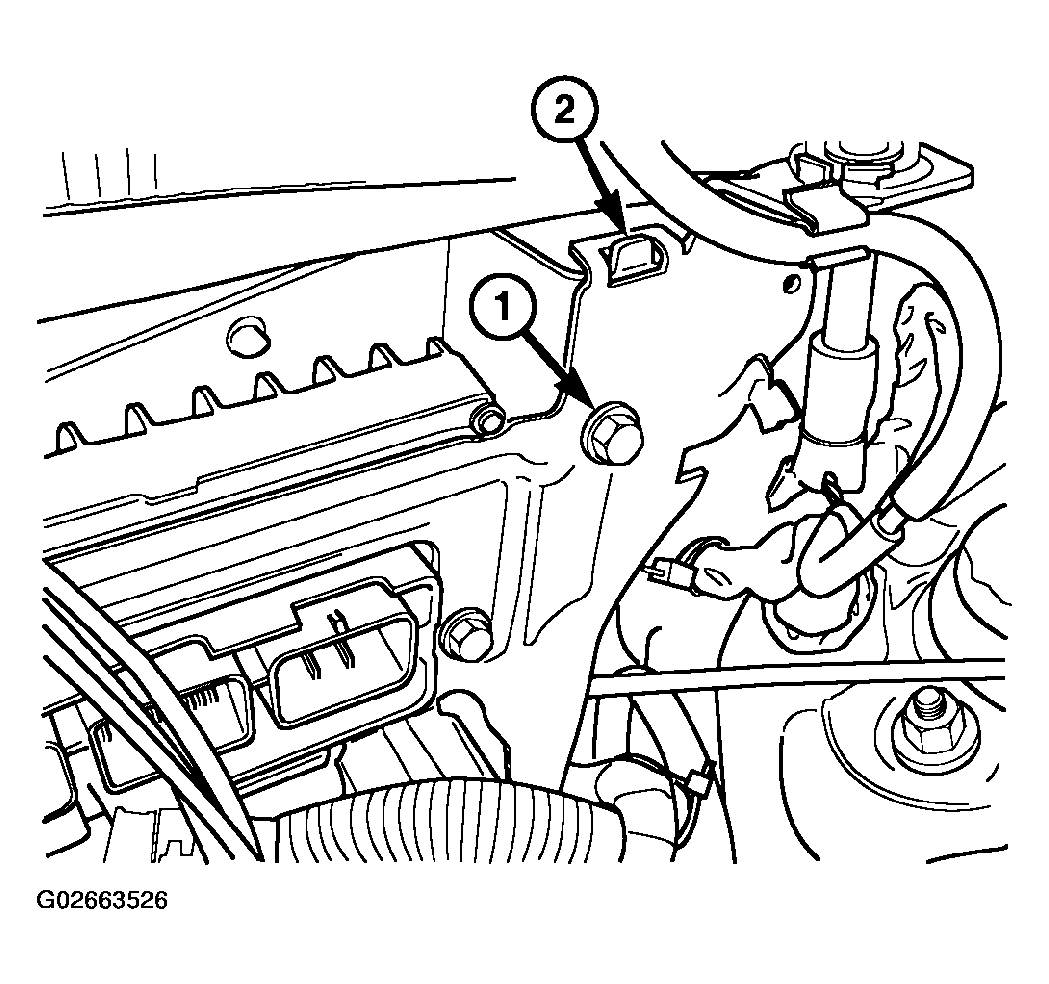

  2. Install the PCM and bracket assembly and locate the bracket on the tab (Fig. Figure ).
  3. Install the 3 mounting screws to the PCM mounting bracket (Fig. Figure ) and tighten to 10.7 N.m (95 in. lbs.).
    4. NOTE: The electrical connector for the PCM are COLOR Coded.

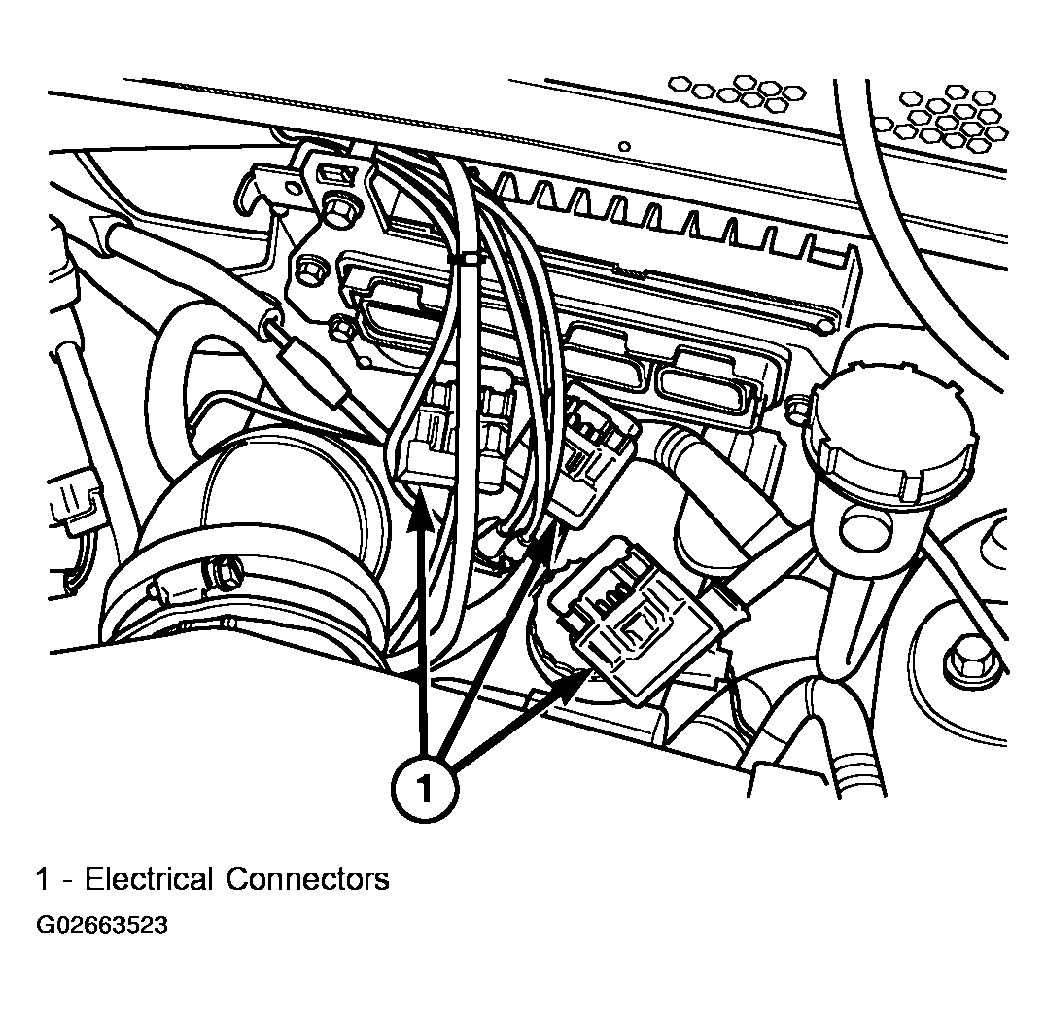

  4. Connect and lock the 3 or 4 electrical connectors to the Powertrain Control Module (PCM) (Fig. Figure ).

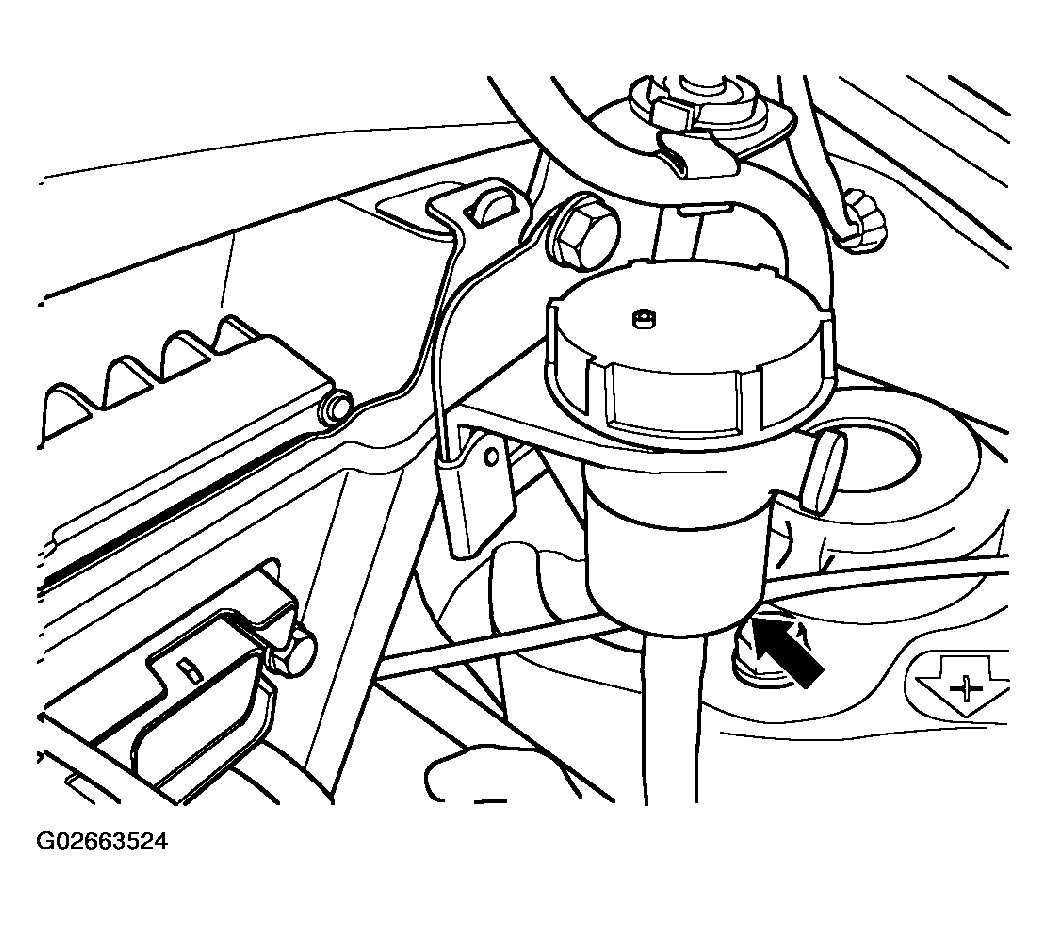

  5. Relocate and install the clutch reservoir (Fig. Figure ).
  6. Connect the negative battery cable.
