Intrusion Sensor - Export: Description

Some vehicles equipped with the premium vehicle theft security system (VTSS) use a ultrasonic intrusion sensor. This intrusion sensor is integrated into the dome lamp (Fig 1 ) and detects any movement in the cabin when the VTSS system and the intrusion sensor are armed. The sensor cannot be serviced separately and if found to be faulty the entire dome lamp assembly must be replaced.

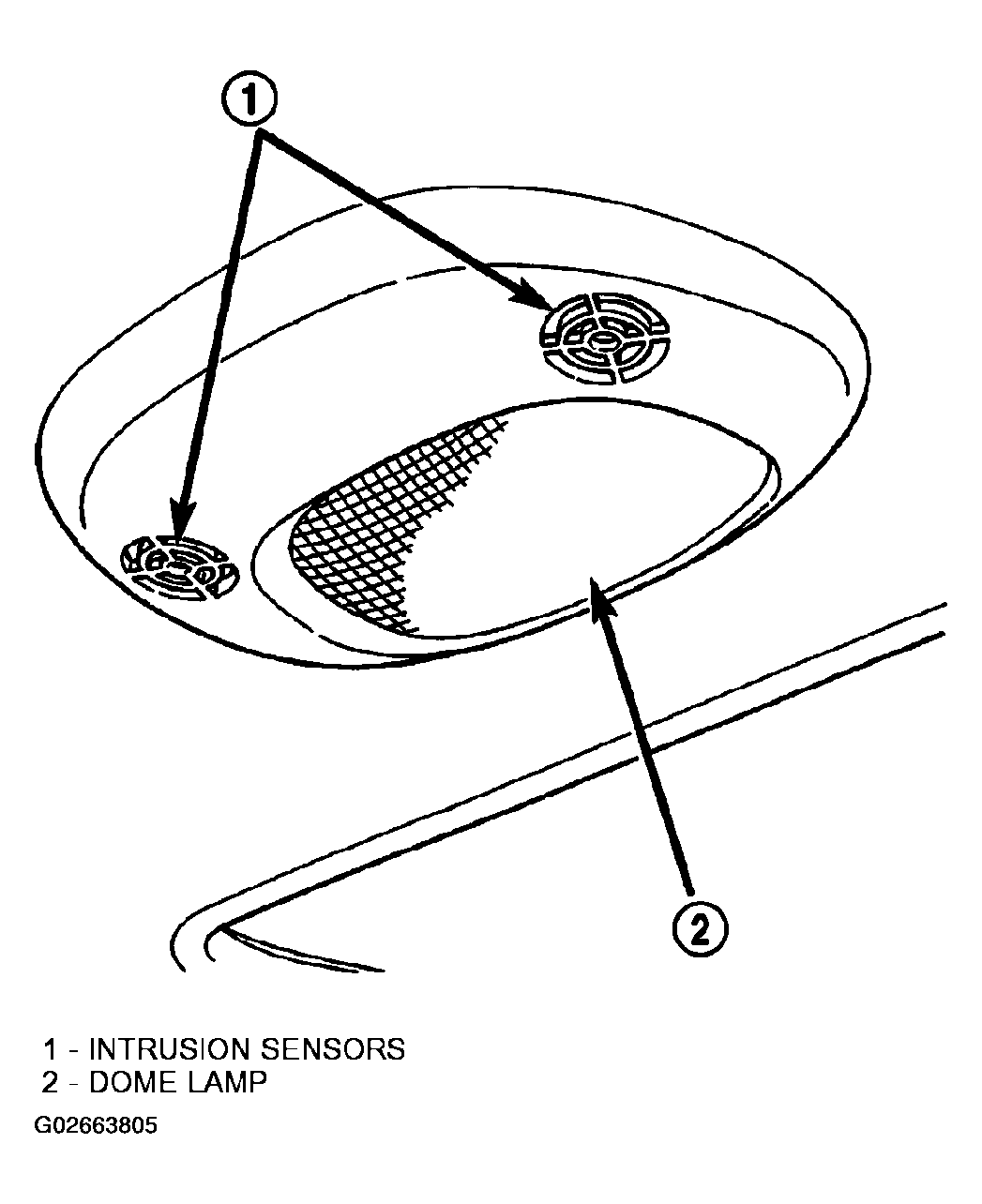

Fig 1: Identifying VTSS Intrusion Sensor
G02663805Courtesy of DAIMLERCHRYSLER CORP.
