Intrusion Sensor - Export: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Grasp the dome lamp unit with intrusion sensor and rotate counterclockwise (Fig 1 ).

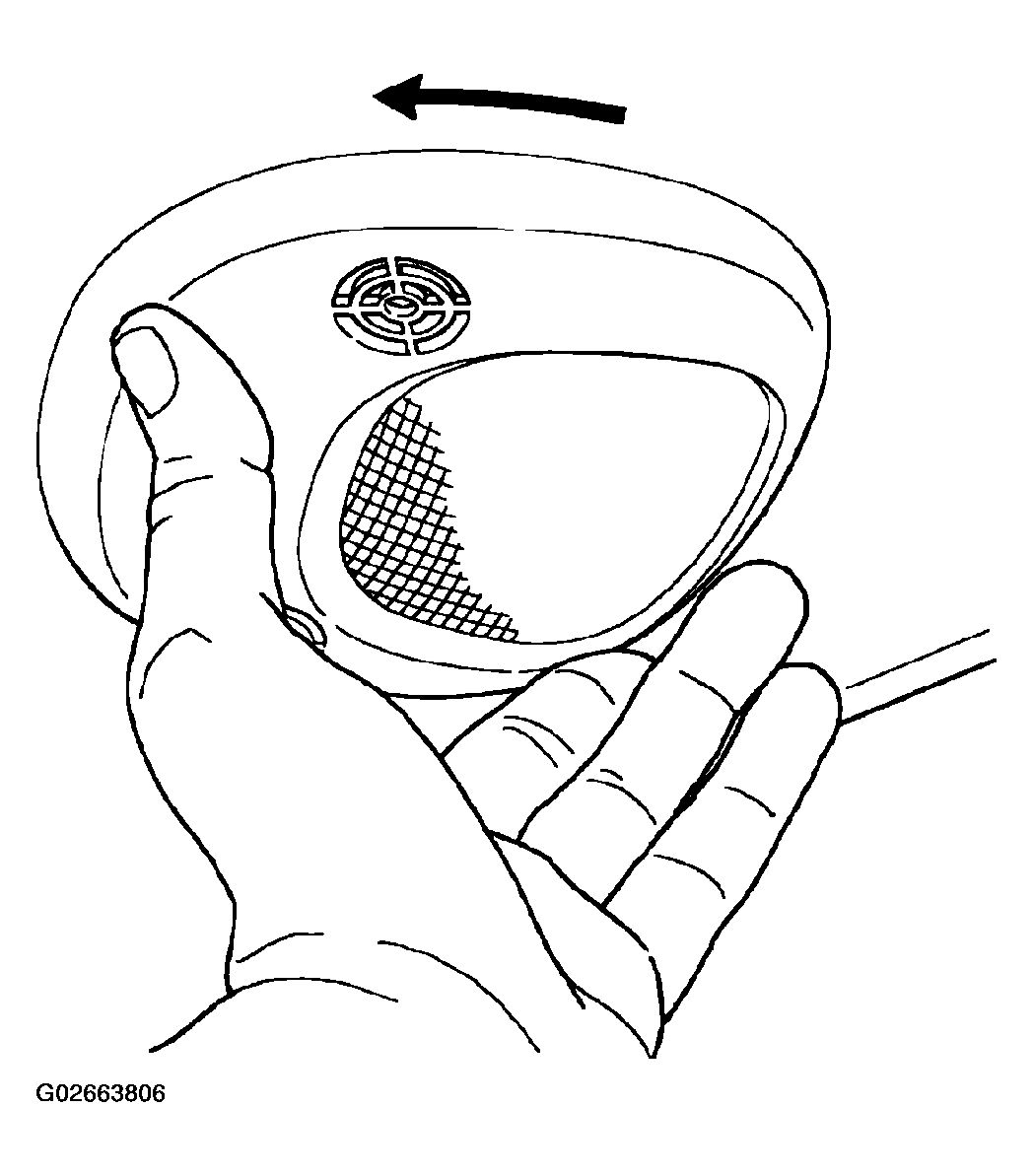

    Fig 1: Removing Dome Lamp Unit With Intrusion Sensor
    G02663806Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull straight down on dome lamp unit with intrusion sensor.
  4. Disconnect electrical connector.
  5. Remove the dome lamp unit with intrusion sensor from the vehicle.
