Front Seat: Installation

WARNING: BEFORE SERVICING THE SEAT THE AIRBAG SYSTEM MUST BE DISARMED. FAILURE TO DO SO MAY RESULT IN ACCIDENTAL DEPLOYMENT OF THE AIRBAG AND POSSIBLE PERSONAL INJURY. REFER TO AIR BAG RESTRAINT SYSTEMS ARTICLE FOR SERVICE PROCEDURES.

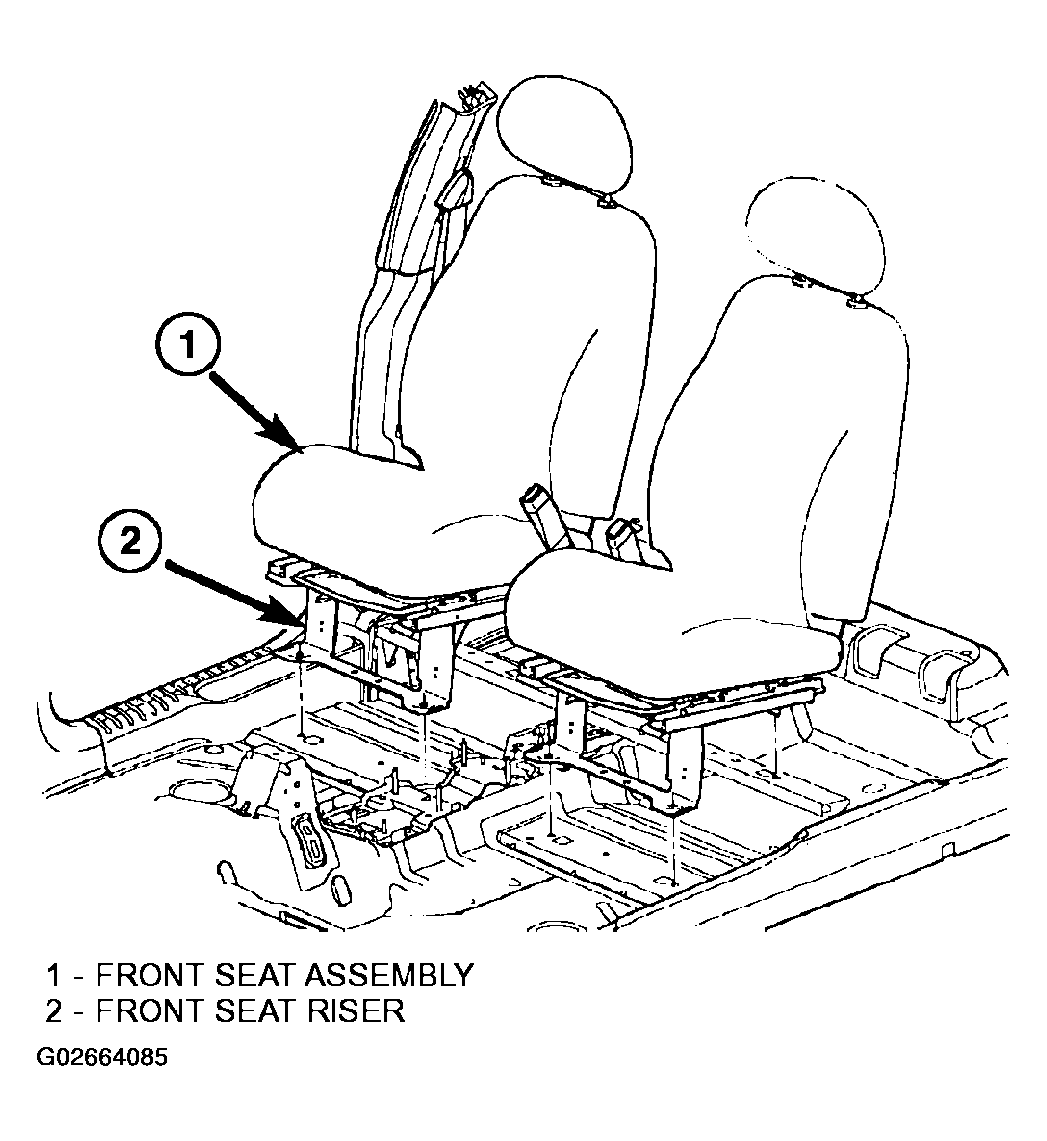

  1. Place seat into position in vehicle. Do not use the head restraint, side shield, recliner handle, or the adjuster lift bar to move the seat (Figure ).
  2. Engage electrical connectors, if equipped.
  3. Install bolts attaching seat track to floor crossmember. Tighten front seat bolt to 55 N.m (40 ft. lbs.) torque.
  4. Install rear seat track attaching bolts. Tighten rear seat bolts to 55 N.m (40 ft. lbs.) torque.
