Assembly - ICU

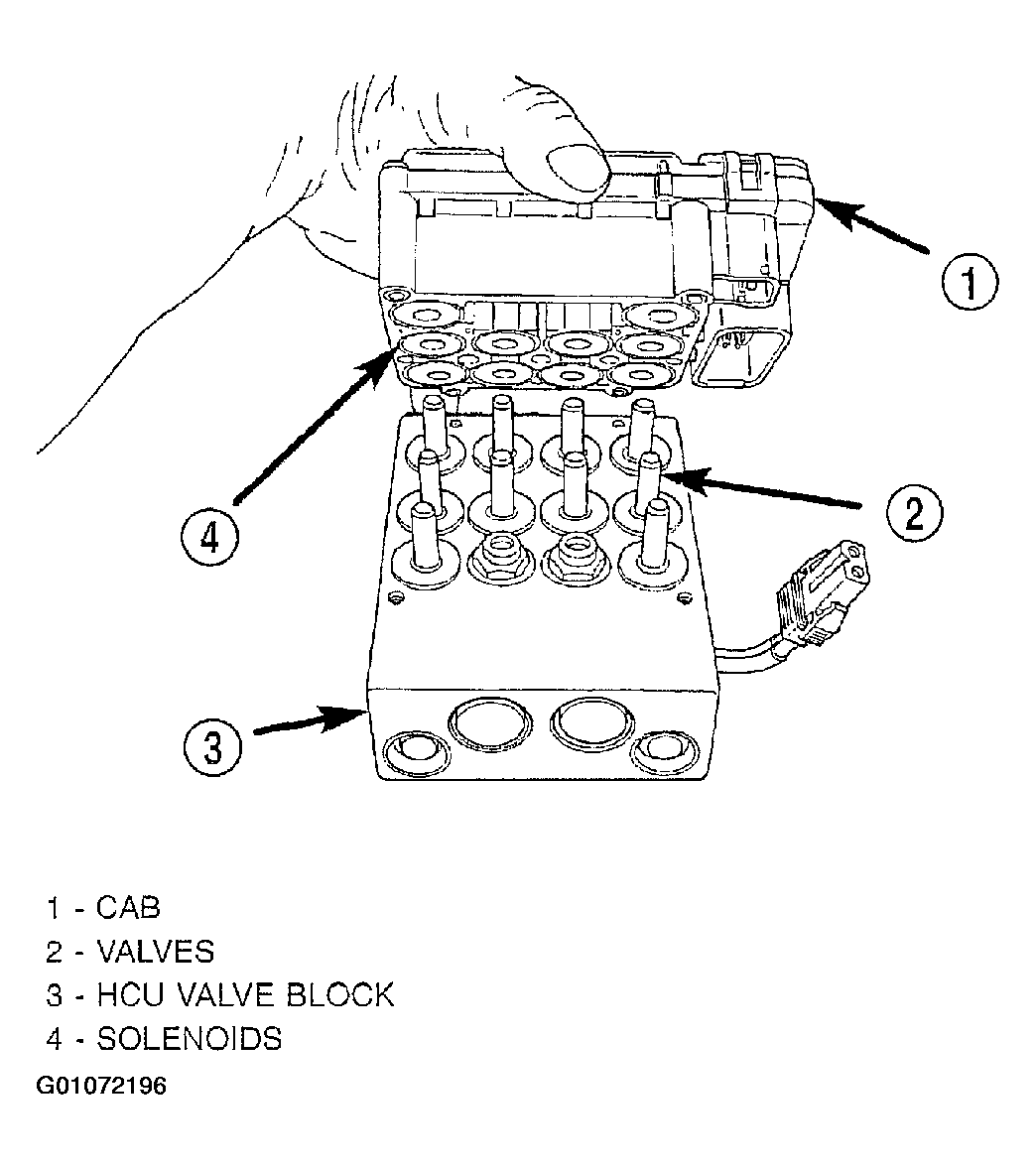

  1. Install the CAB on the HCU. See Figure .

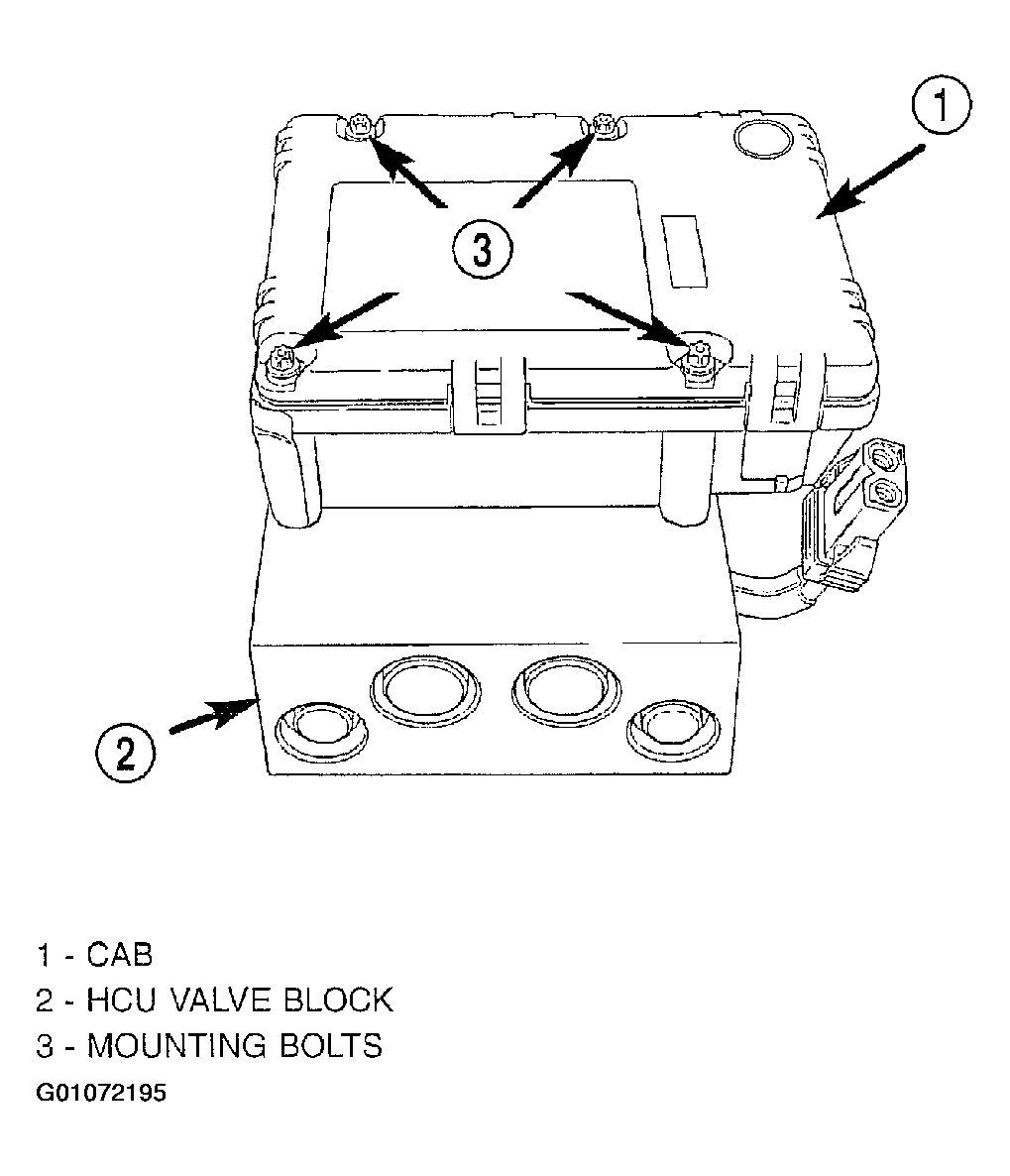

  2. Install the 4 bolts mounting the CAB to the HCU. See Figure . Tighten the CAB mounting bolts to a torque of 2 N.m (17 in. lbs.).

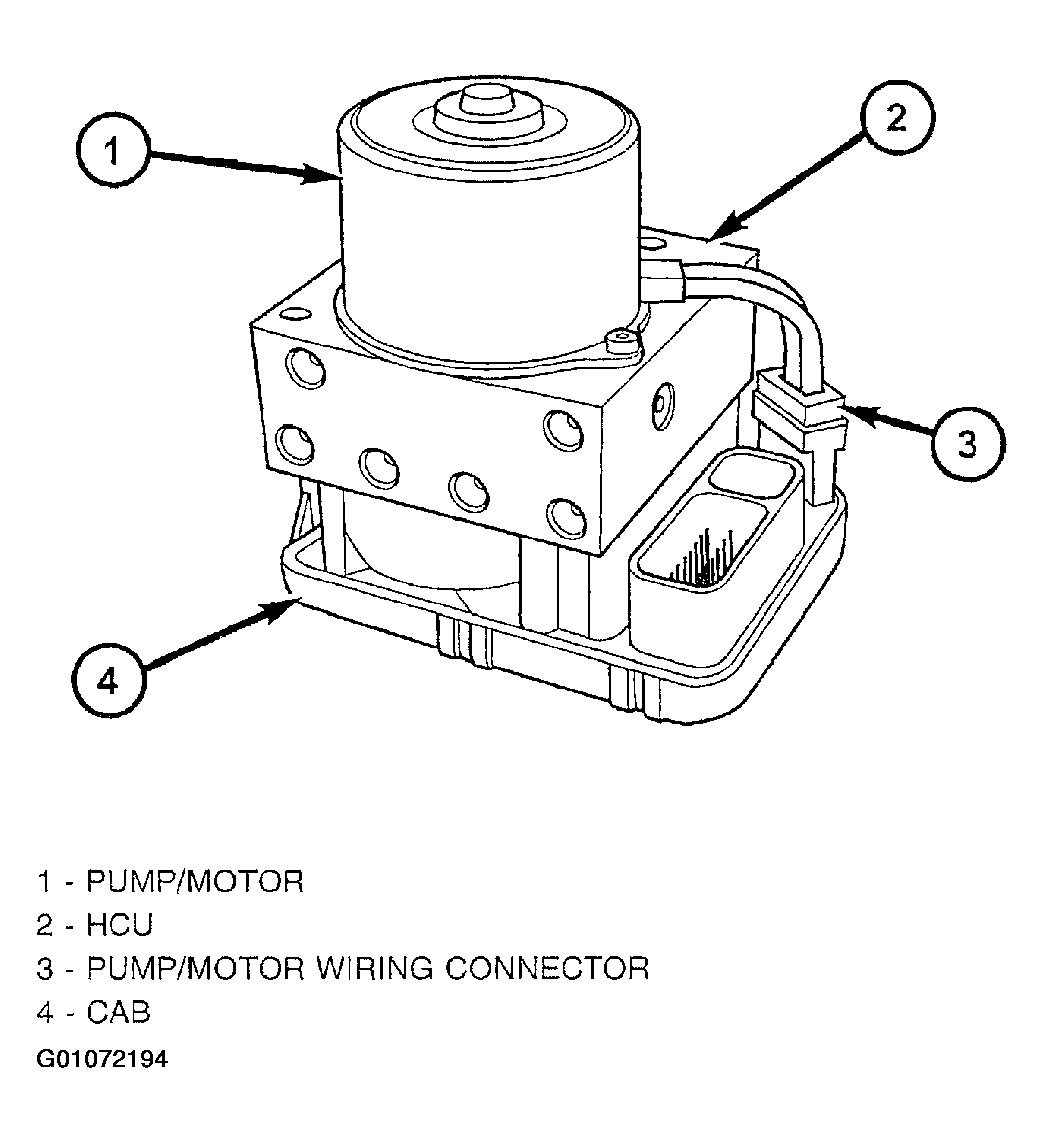

  3. Plug the pump/motor wiring harness into the CAB. See Figure .
  4. Install the ICU in the vehicle. See INSTALLATION  .
