Controller Antilock Brake

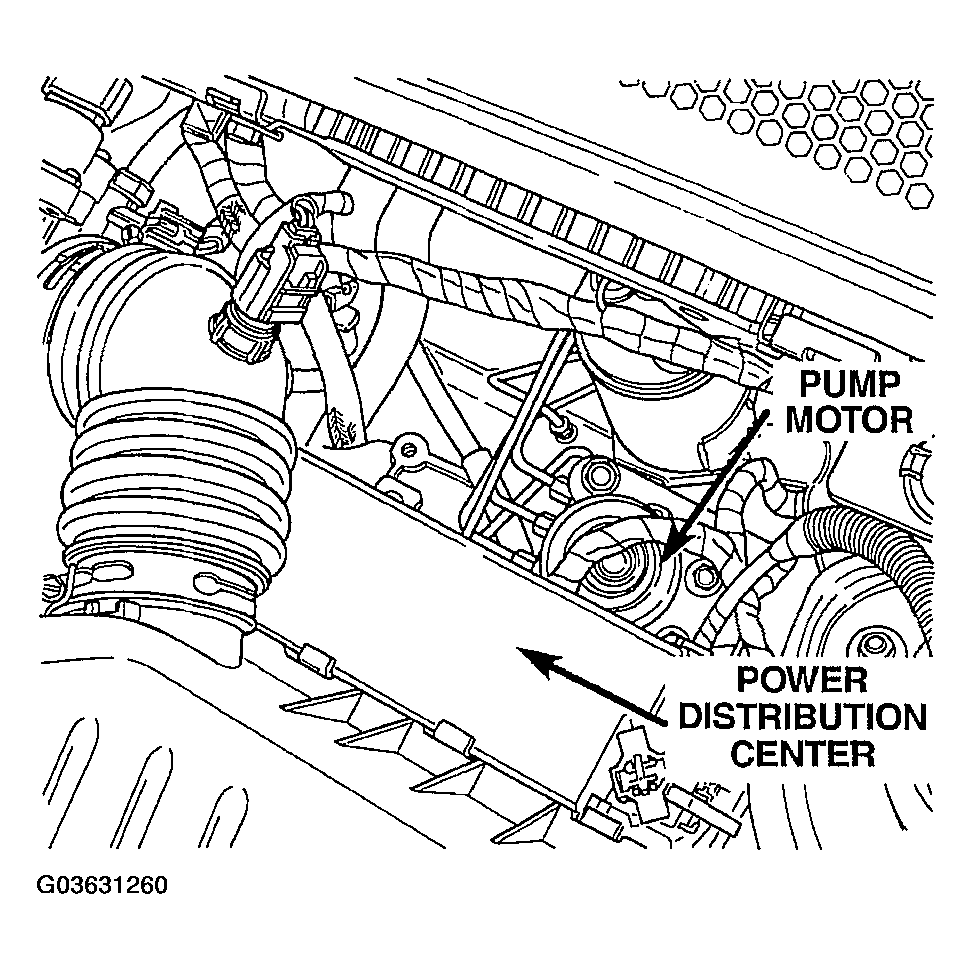

Fig 1: Identifying Controller Antilock Brake Location - LHD
Courtesy of DAIMLERCHRYSLER CORP.

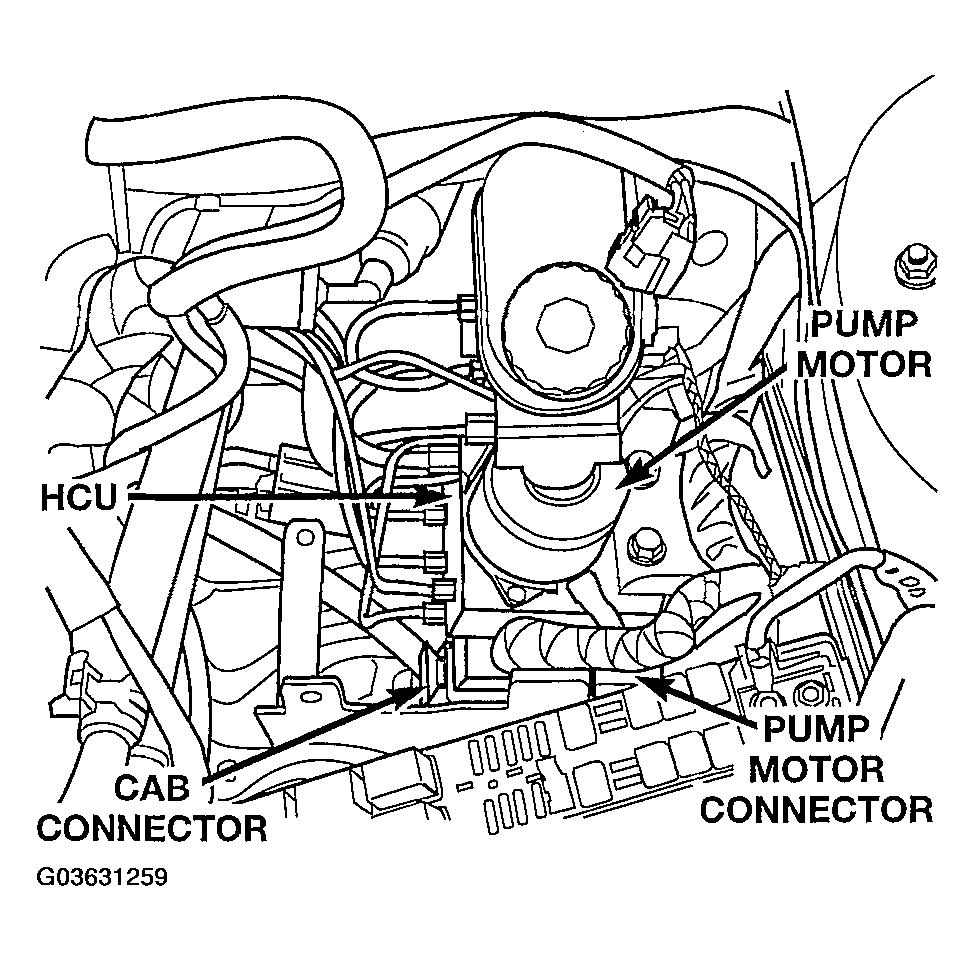

Fig 2: Identifying Controller Antilock Brake Location - RHD
Courtesy of DAIMLERCHRYSLER CORP.
