Identifying Powertrain Control Module C1 (NGC) - Black 38 Way Connector End View

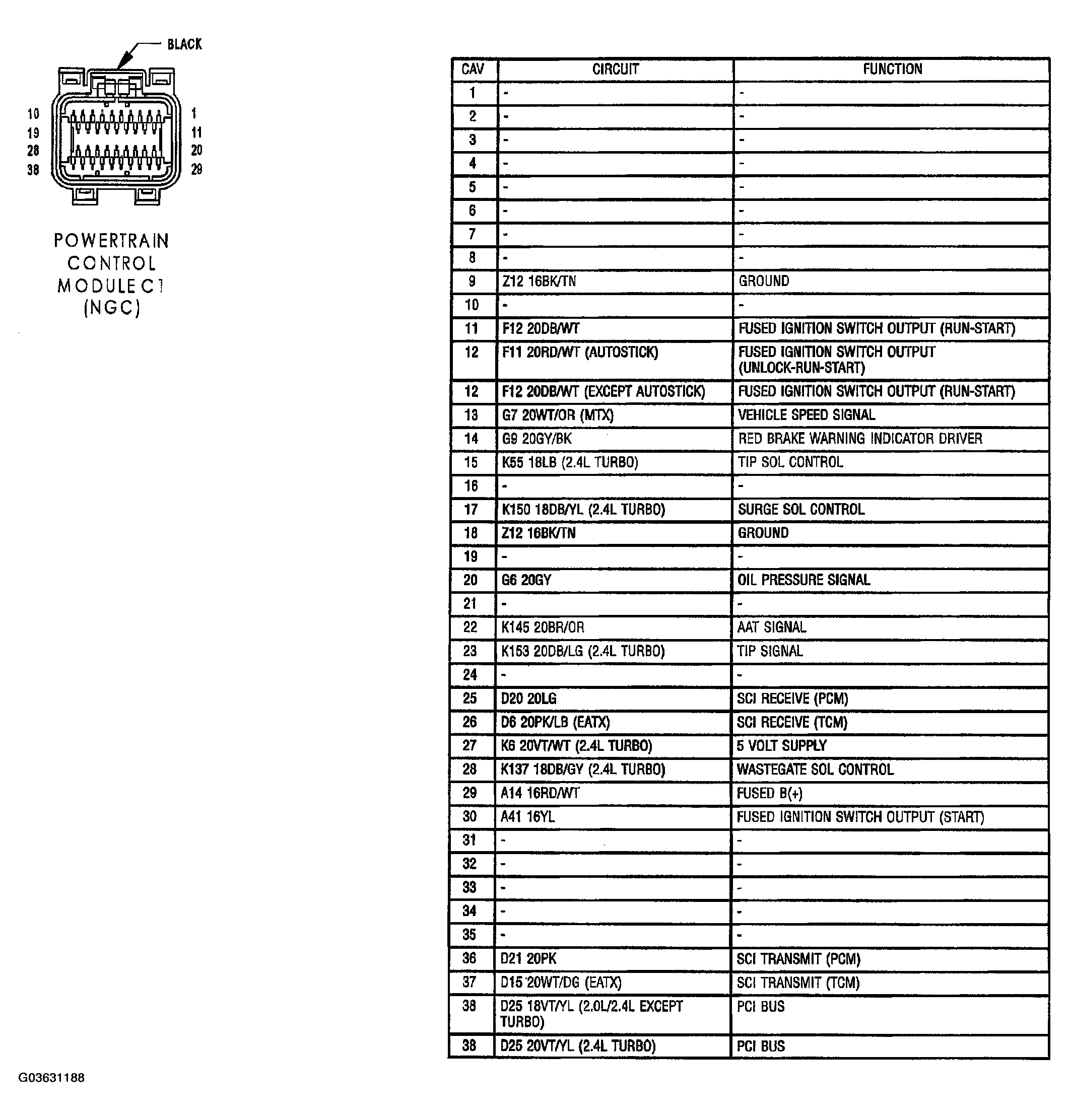

Fig 1: Identifying Powertrain Control Module C1 (NGC) - Black 38 Way Connector End View
G03631188Courtesy of DAIMLERCHRYSLER CORP.
