Accessory Switch Bezel: Installation
NOTE:
The accessory switches are serviced separately, but the cigar lighter/power outlet is not.
If replacing the accessory switch bezel, you must transfer the switches to the new bezel.

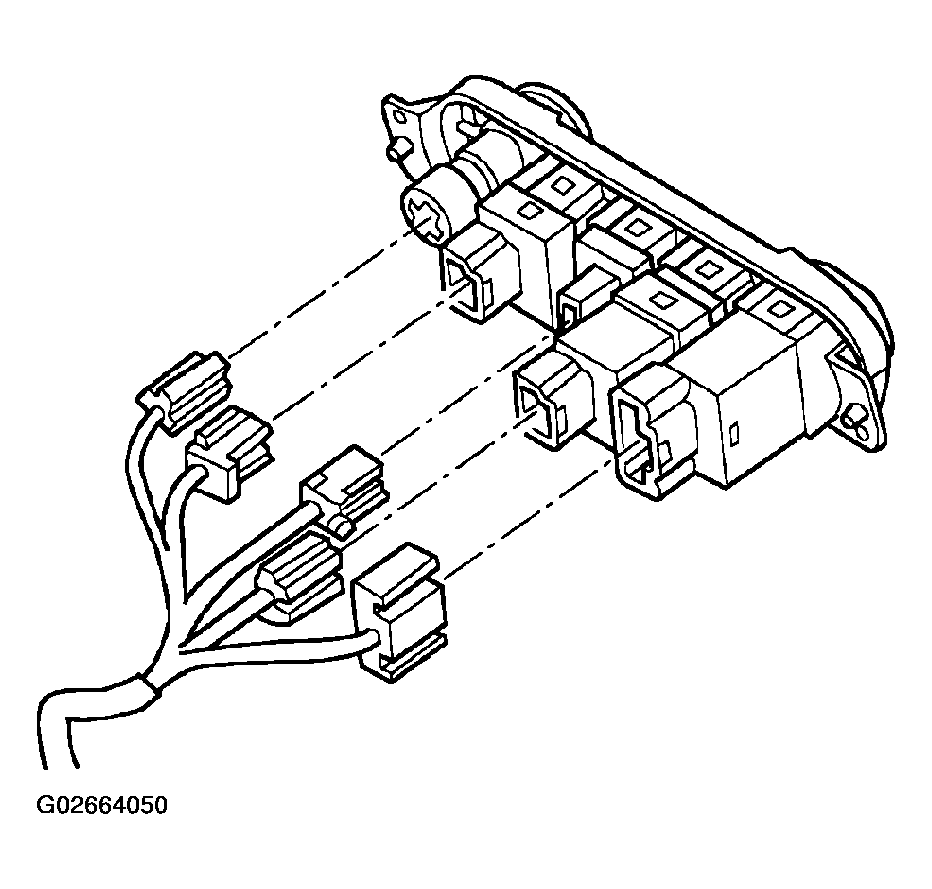

- Reconnect accessory switch bezel connectors (Figure ).

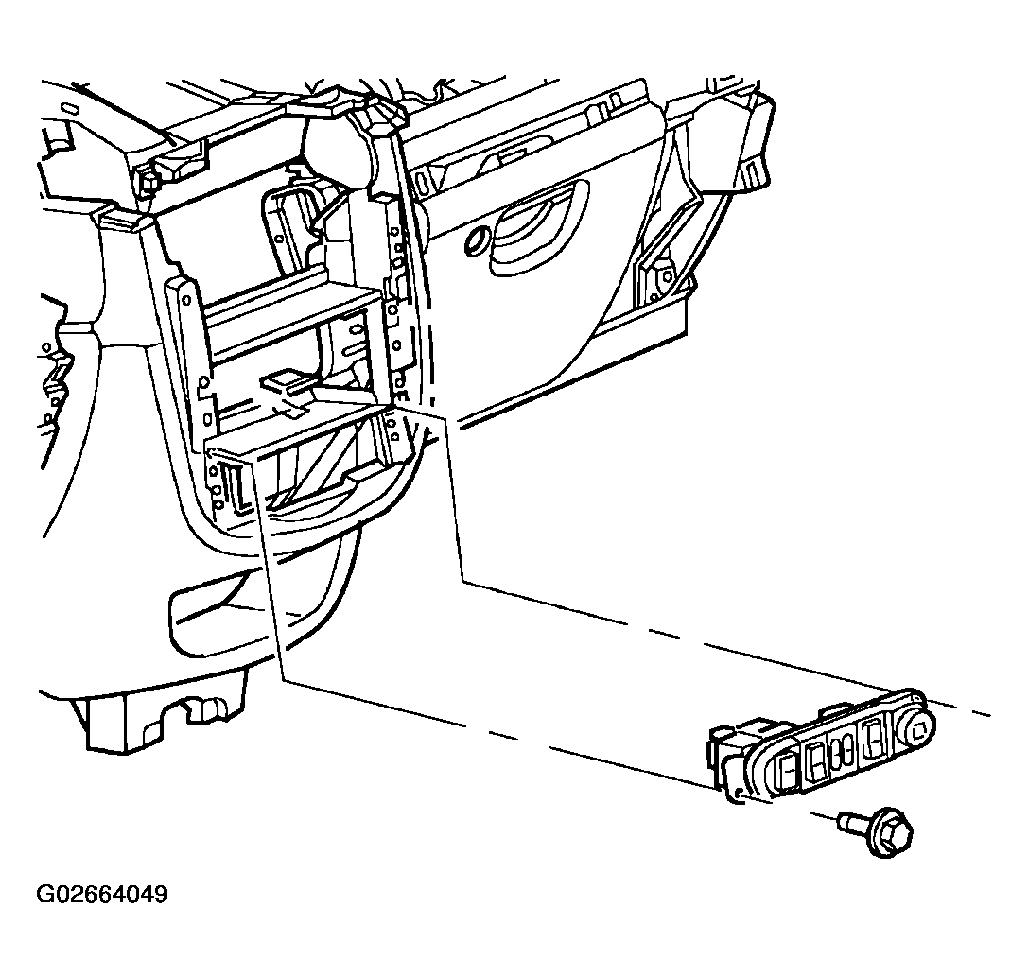

- Reinstall switch bezel into instrument panel opening and install two retaining screws (Figure ).
- Reinstall instrument panel center bezel. Refer to INSTRUMENT PANEL CENTER BEZEL .

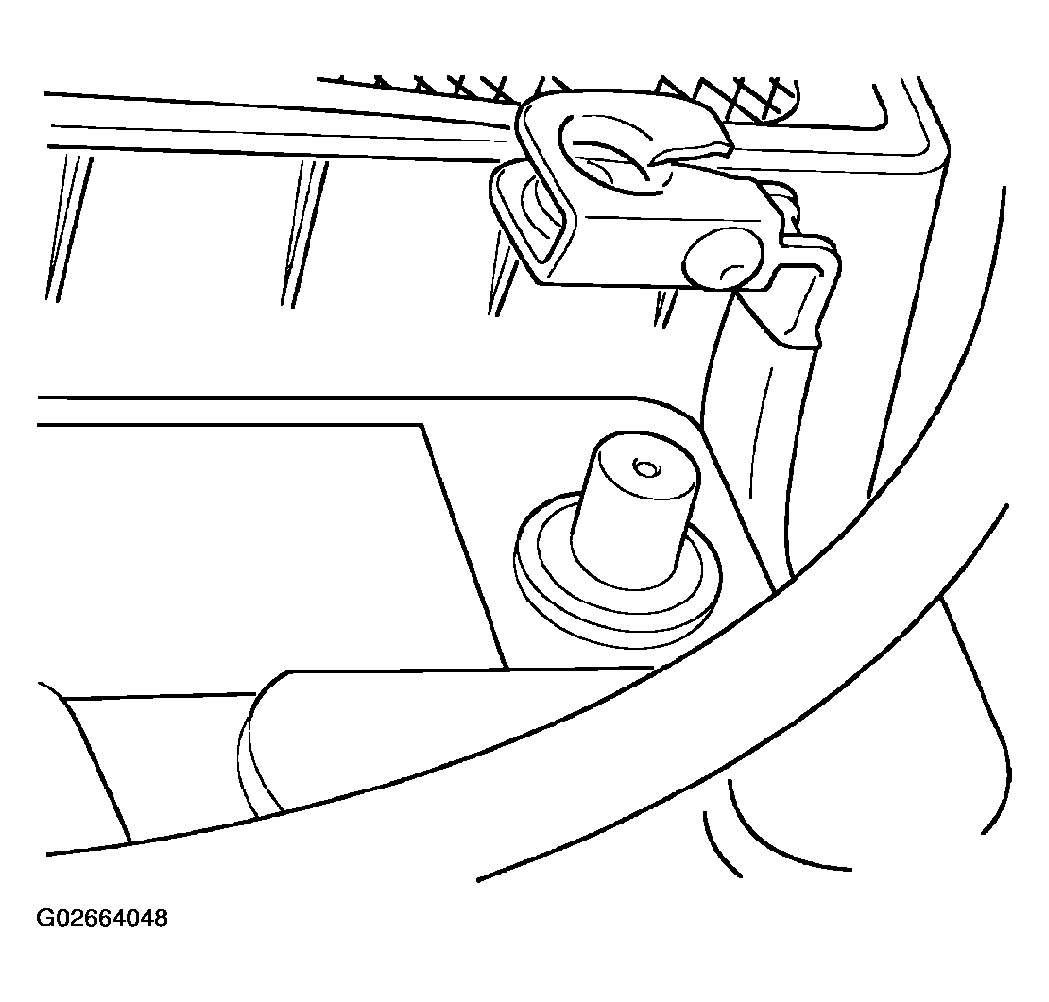

- Reconnect the battery negative cable (Figure ).
- Close the hood.
- Verify vehicle and system operation.
