Identifying Airbag Control Module (ORC) (Base) - Yellow 23 Way Connector End View

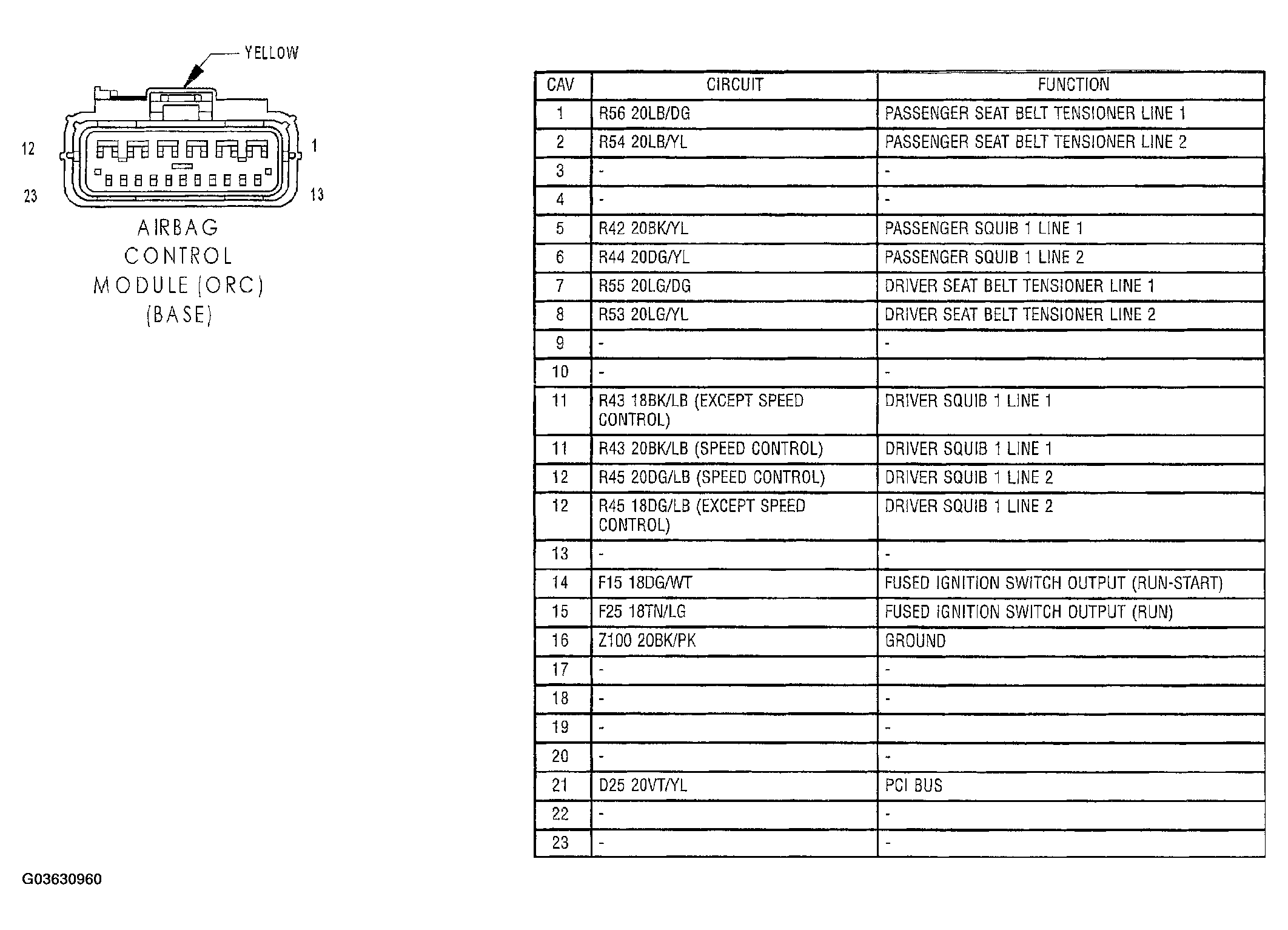

Fig 1: Identifying Airbag Control Module (ORC) (Base) - Yellow 23 Way Connector End View
G03630960Courtesy of DAIMLERCHRYSLER CORP.
