Identifying Traction Control Switch - White 4 Way Connector End View

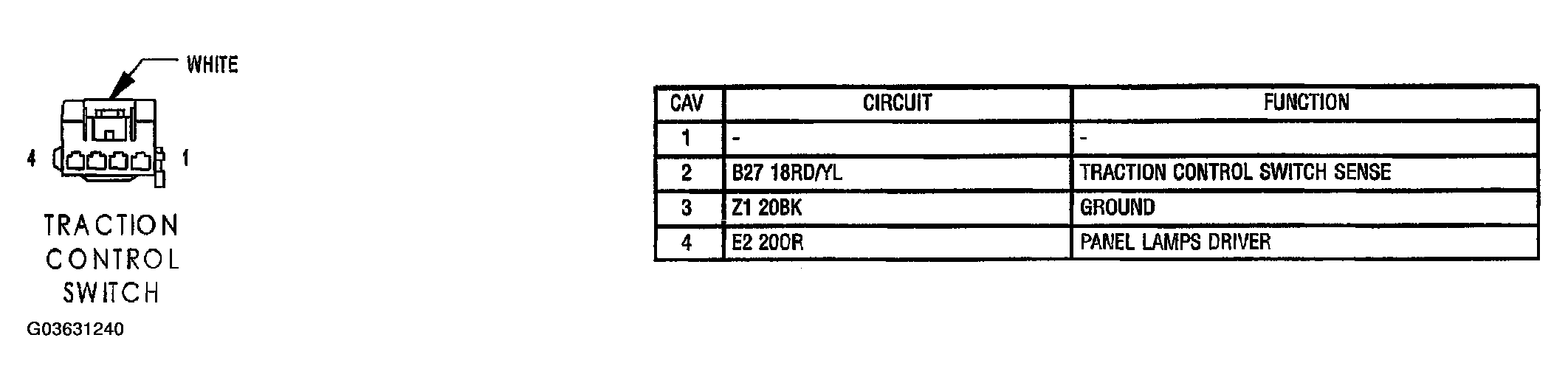

Fig 1: Identifying Traction Control Switch - White 4 Way Connector End View
G03631240Courtesy of DAIMLERCHRYSLER CORP.
