General Specifications




41TE - Automatic Transmission


General Specifications:




Gear Ratios:




Bearing Settings (End Play & Turning Torque):




Clutch Clearances:




Oil Pump Clearances:




Input Shaft:

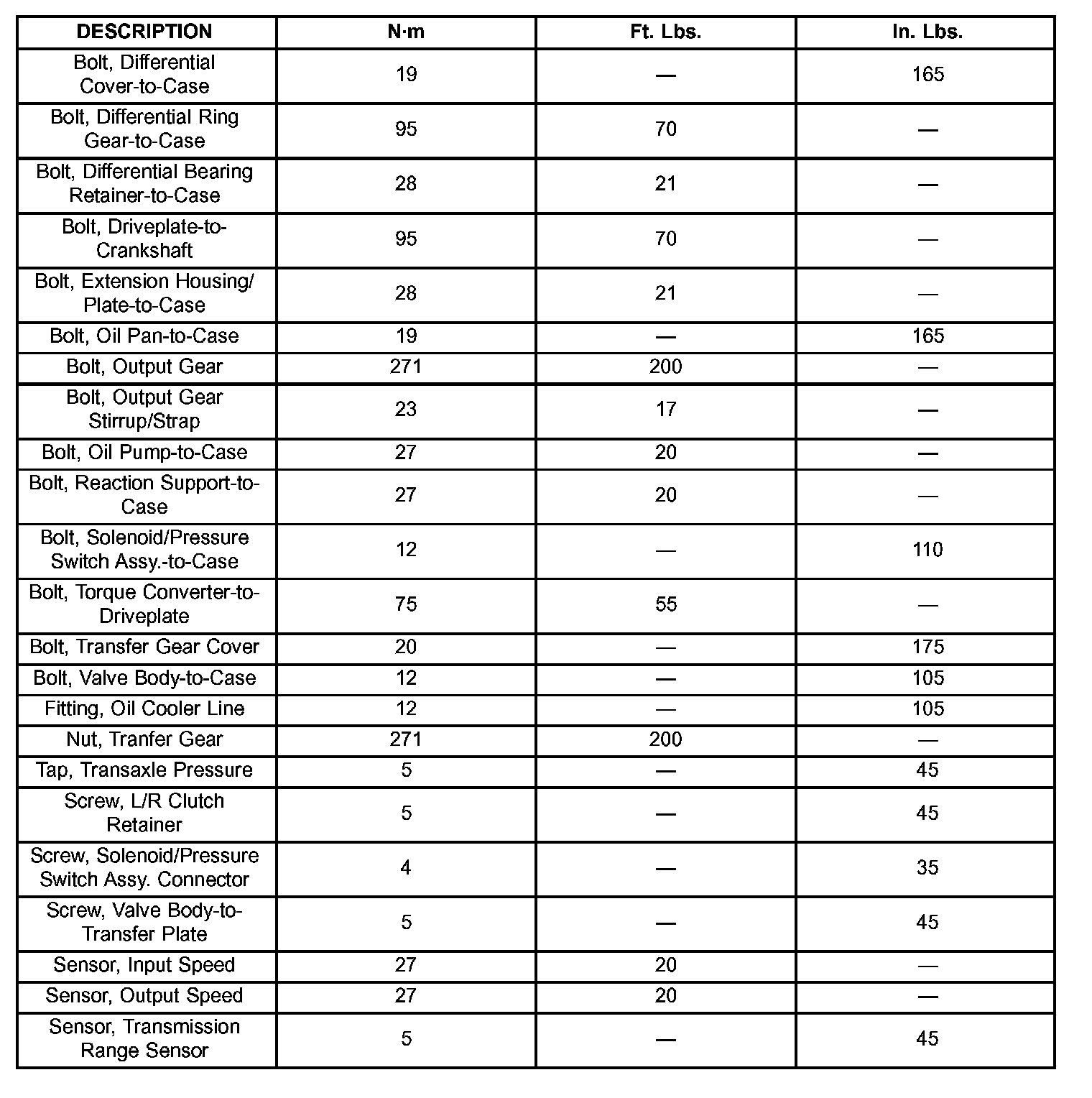

A/T - Torque Specifications:
