Splice Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

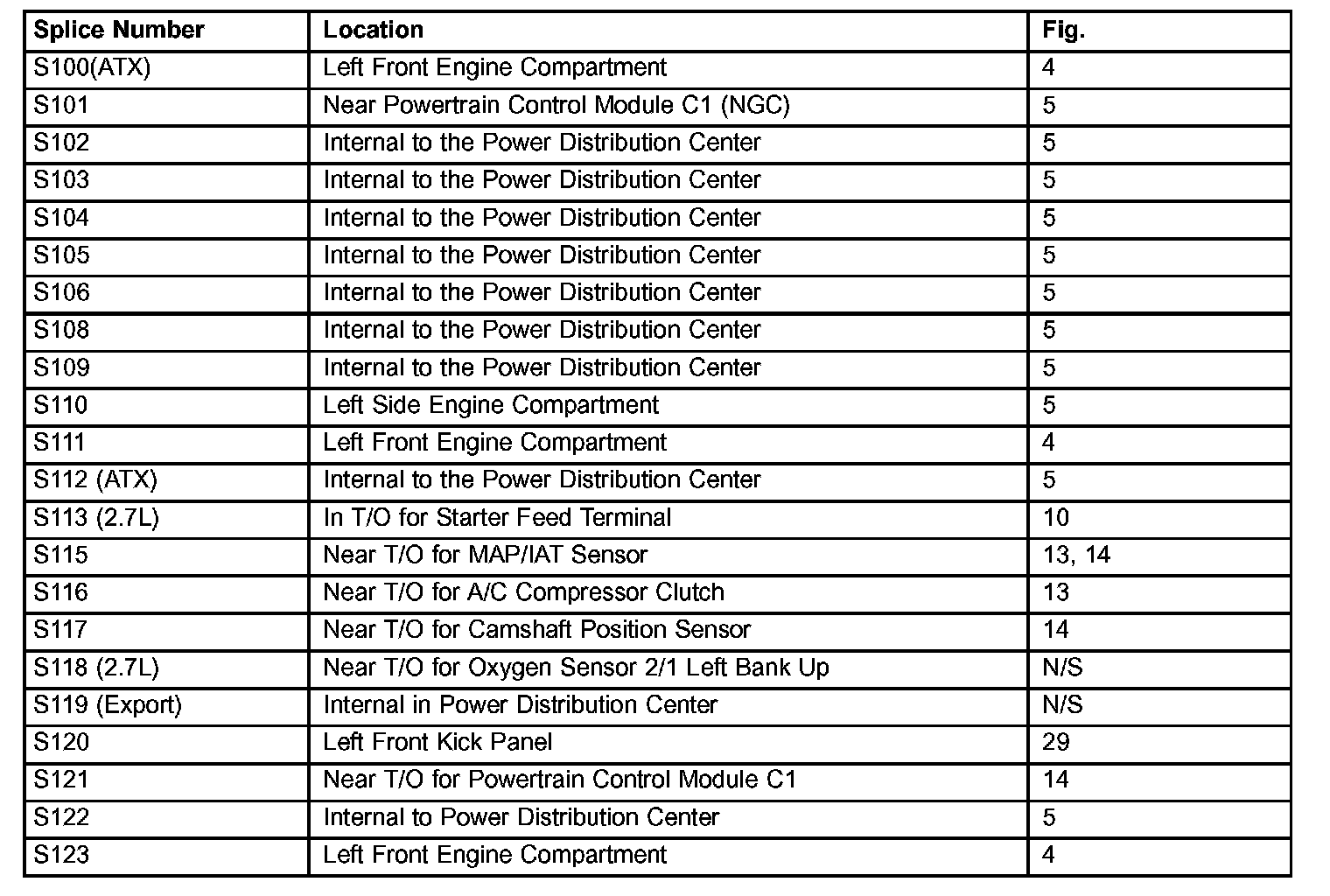

Splices S100 - S123:

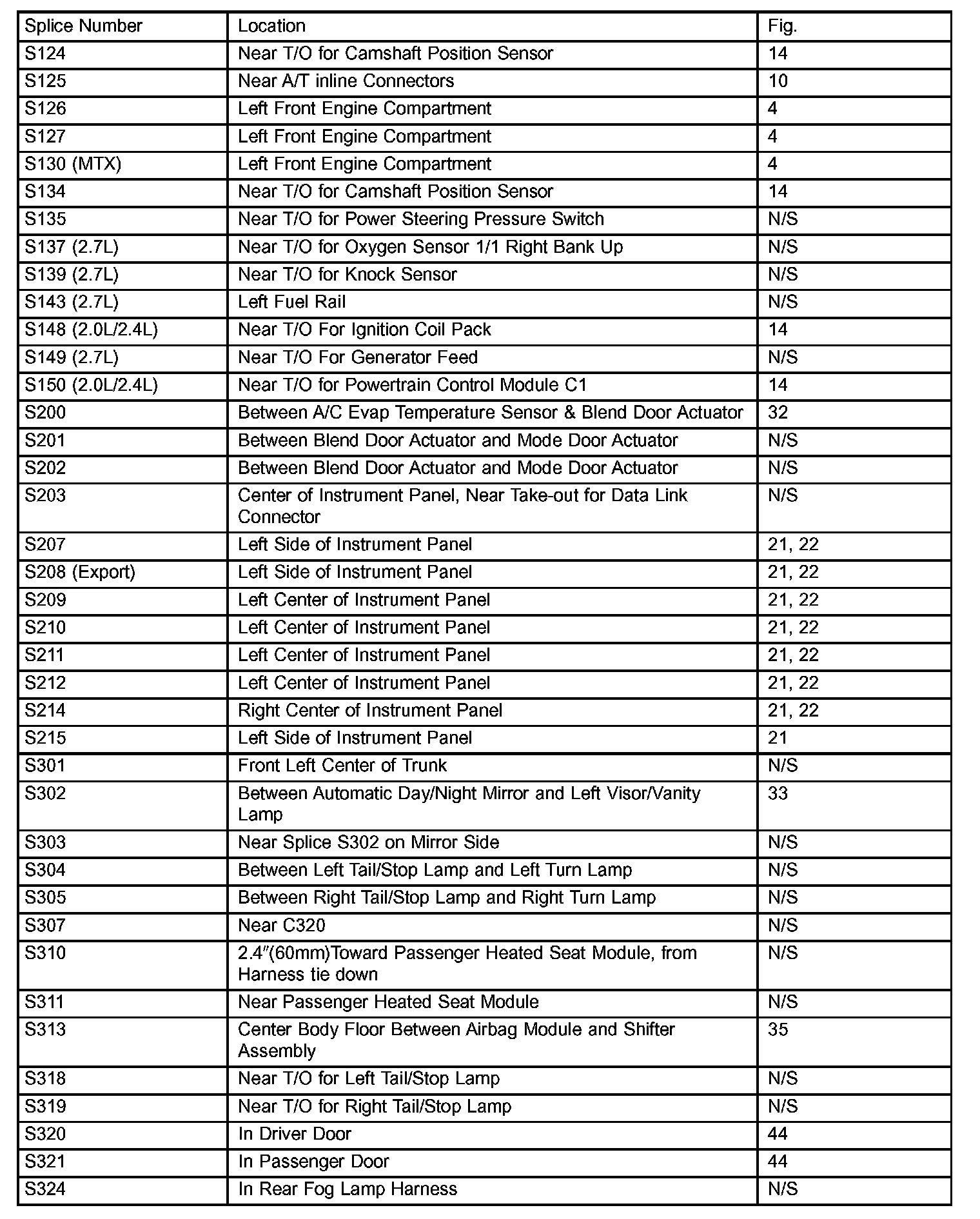

Splices S124 - S324:






Splices S326 - S336 (JR41):
