Crankshaft Position Sensor: Service and Repair

REMOVAL - 4 CYLINDER
1. Disconnect the negative battery cable.
2. Raise vehicle and support.

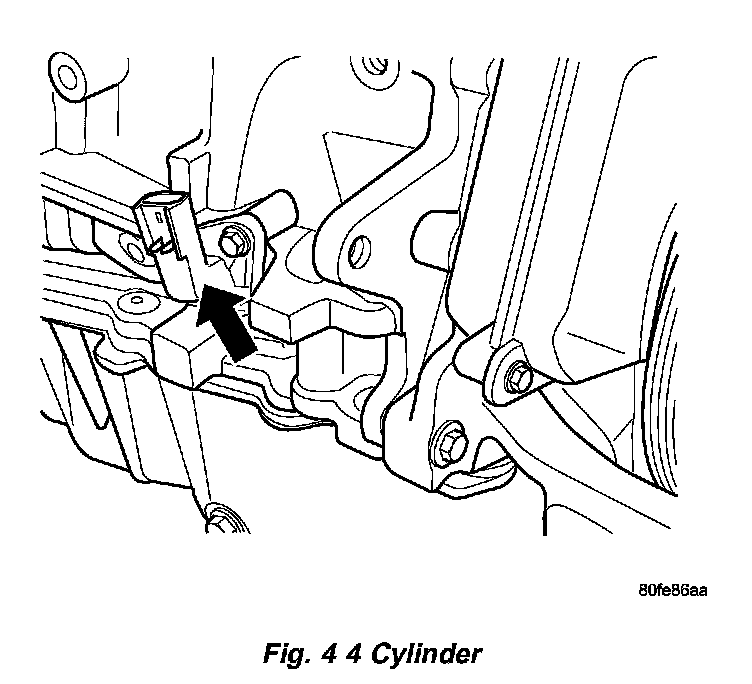

Fig.4 4 Cylinder:

3. Disconnect the electrical connector.
4. Remove crankshaft sensor bolt.
5. Remove the crankshaft sensor.

INSTALLATION - 4 CYLINDER
1. Install the crankshaft sensor.
2. Install crankshaft sensor bolt and tighten.
3. Connect the electrical connector.
4. Lower vehicle.
5. Connect the negative battery cable.
