Ignition Coil: Service and Repair

REMOVAL

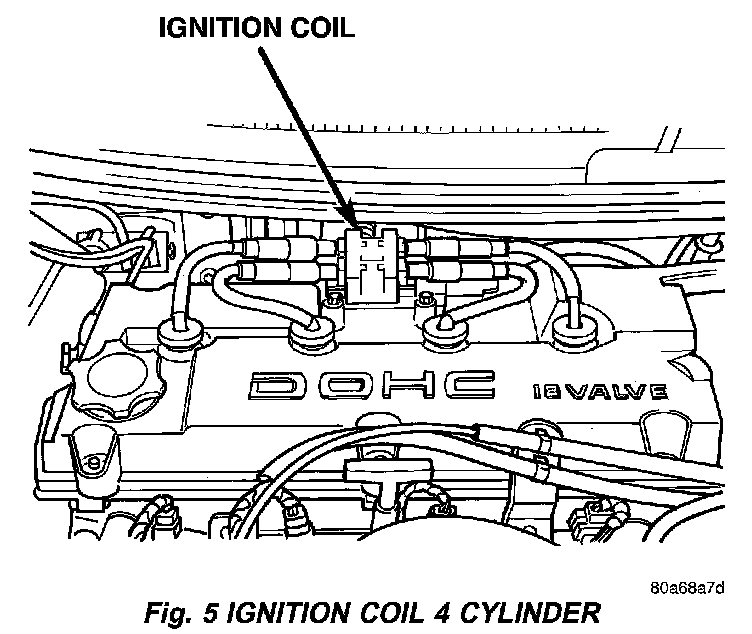

Fig.5 Ignition Coil - 4 Cylinder:

The electronic ignition coil pack attaches directly to the valve cover.
1. Disconnect the negative battery cable.

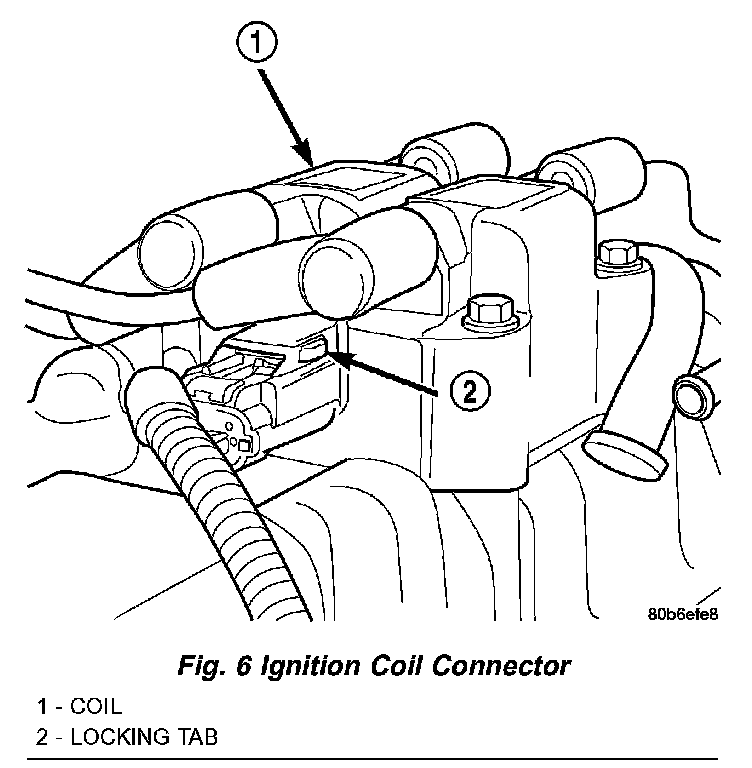

Fig.6 Ignition Coil Connector:

2. Disconnect electrical connector from coil pack.
3. Remove spark plug cables, twist and pull cables to remove.
4. Remove coil pack mounting bolts.
5. Remove coil pack.

INSTALLATION
The electronic ignition coil pack attaches directly to the valve cover.
1. Install coil pack on valve cover.
2. Install bolts and tighten bolts to 11.8 Nm (105 in. lbs.).
3. Connect the electrical connector.
4. Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables snap onto the towers.
