Disassembly And Assembly: Notes

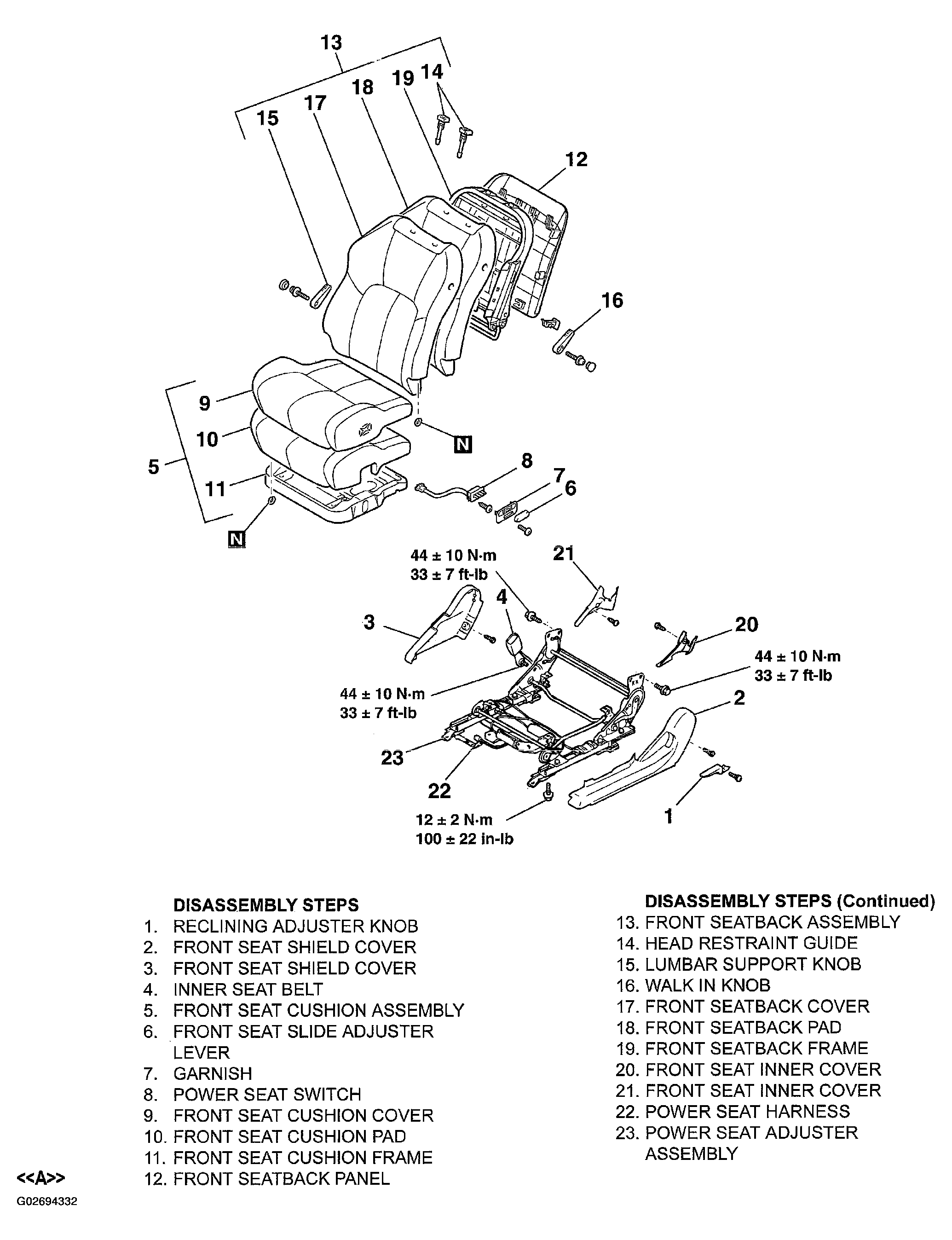

Fig 1: Disassembly And Assembly Of Front Seat Assembly

G02694332

Courtesy of DAIMLERCHRYSLER CORP.
