Removal And Installation: Notes

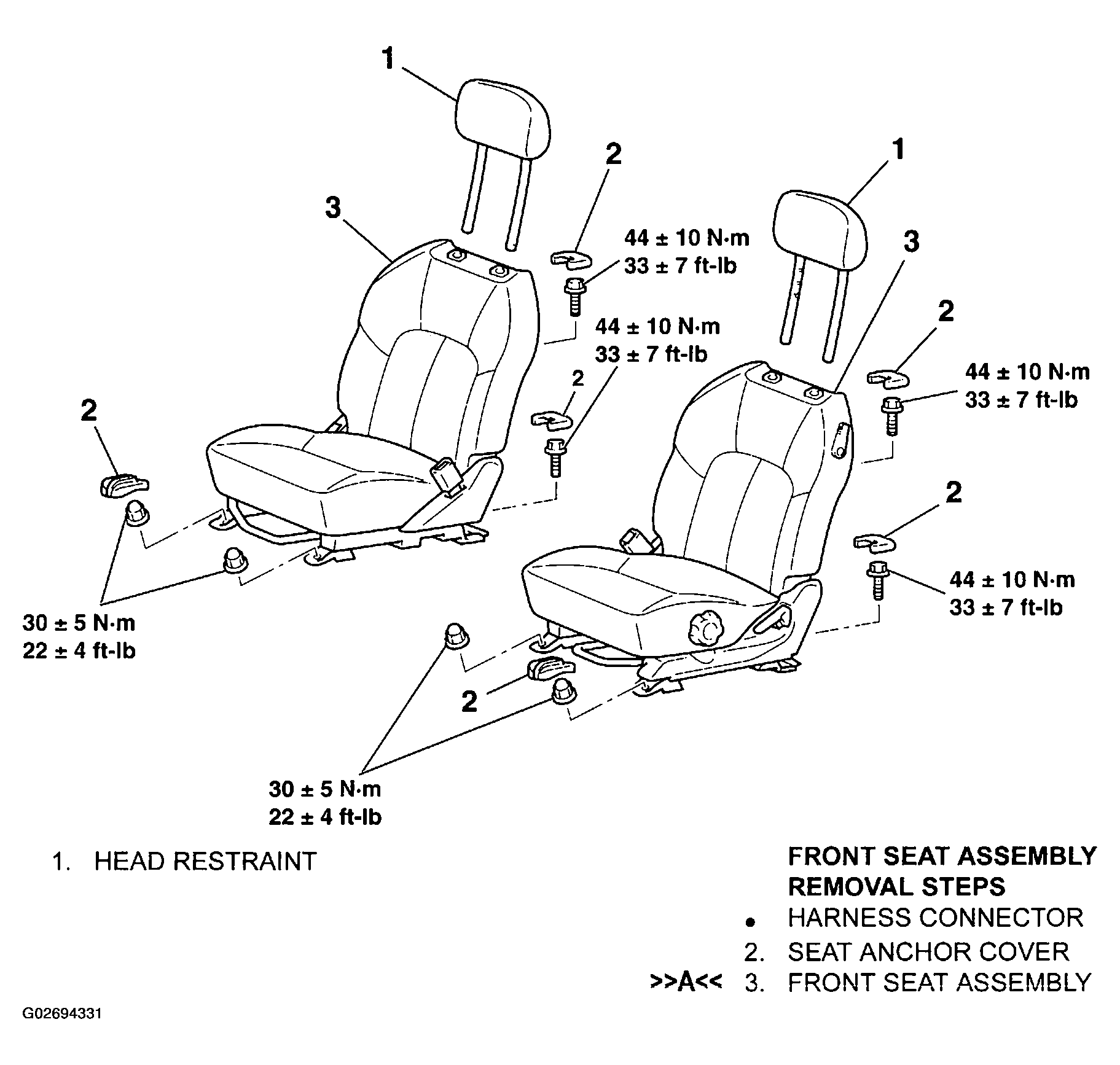

Fig 1: Removing And Installing Of Front Seat Assembly
G02694331Courtesy of DAIMLERCHRYSLER CORP.
