Driver Power Seat Switch Connector End View

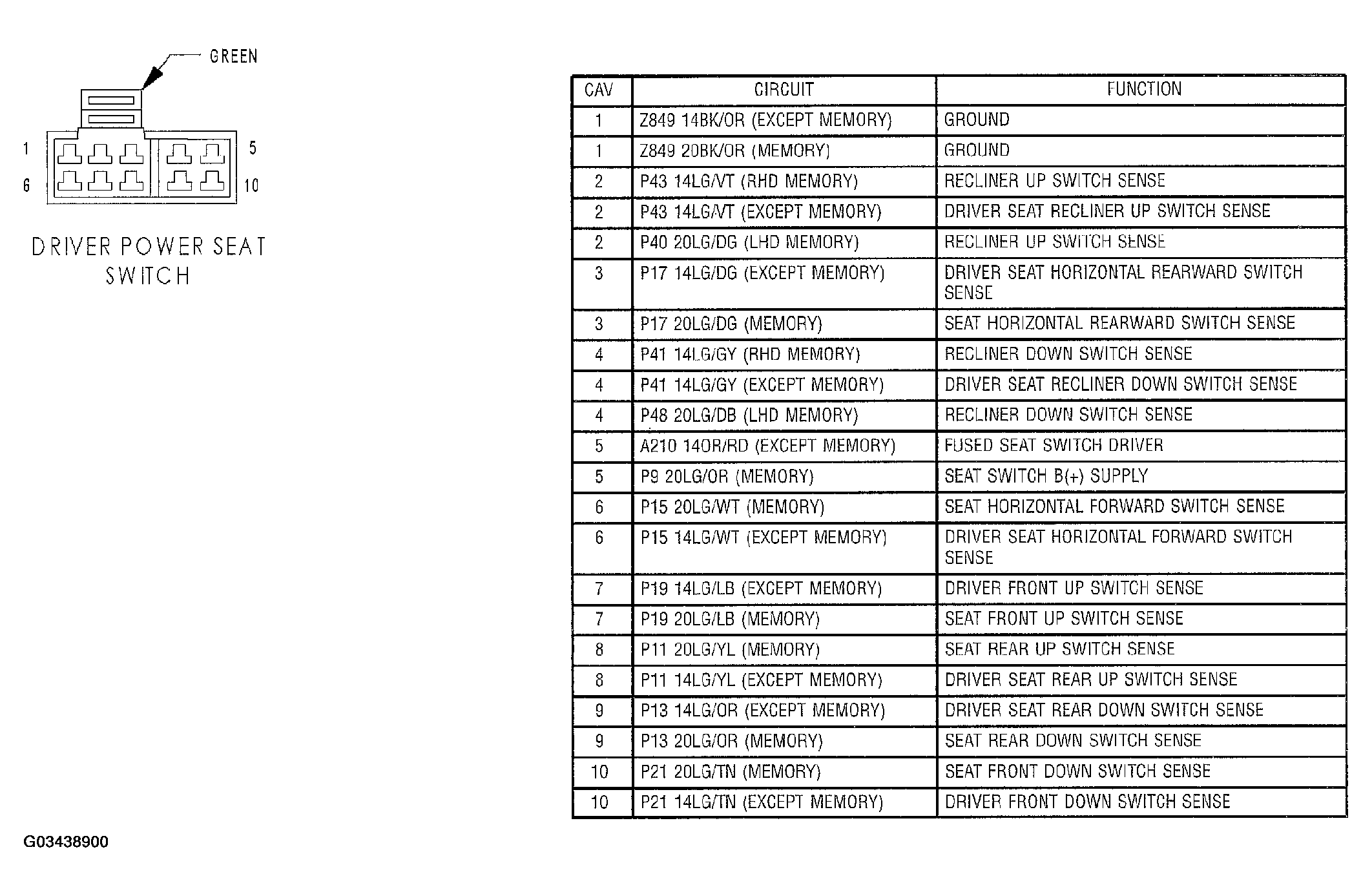

Fig 1: Driver Power Seat Switch Connector End View
G03438900Courtesy of DAIMLERCHRYSLER CORP.
