Adjustable Pedals Module (Except Export) Connector End View

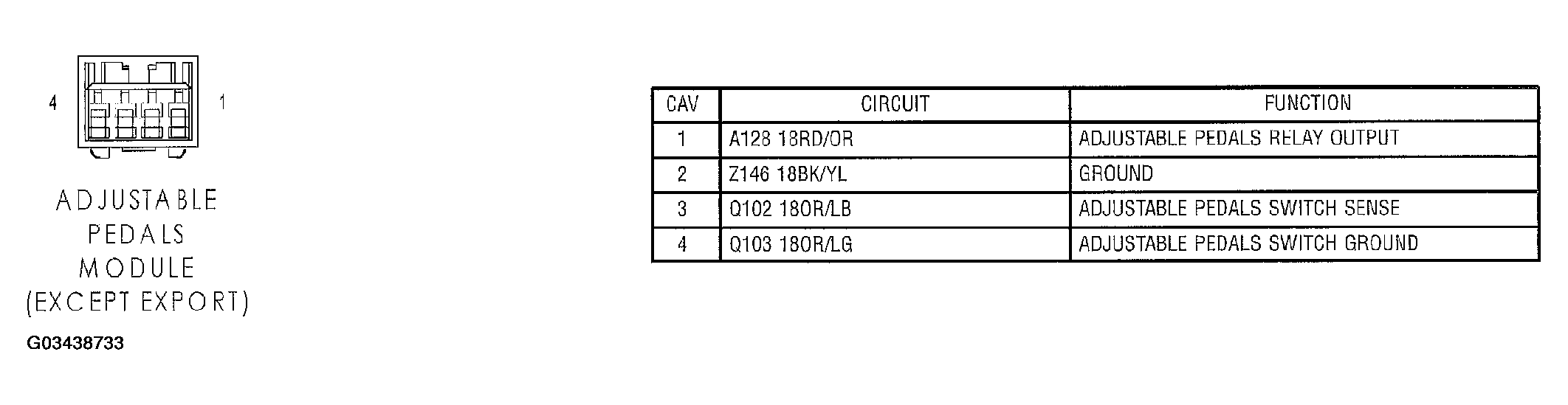

Fig 1: Adjustable Pedals Module (Except Export) Connector End View
G03438733Courtesy of DAIMLERCHRYSLER CORP.
