Integrated Power Module Connector End View (C6)

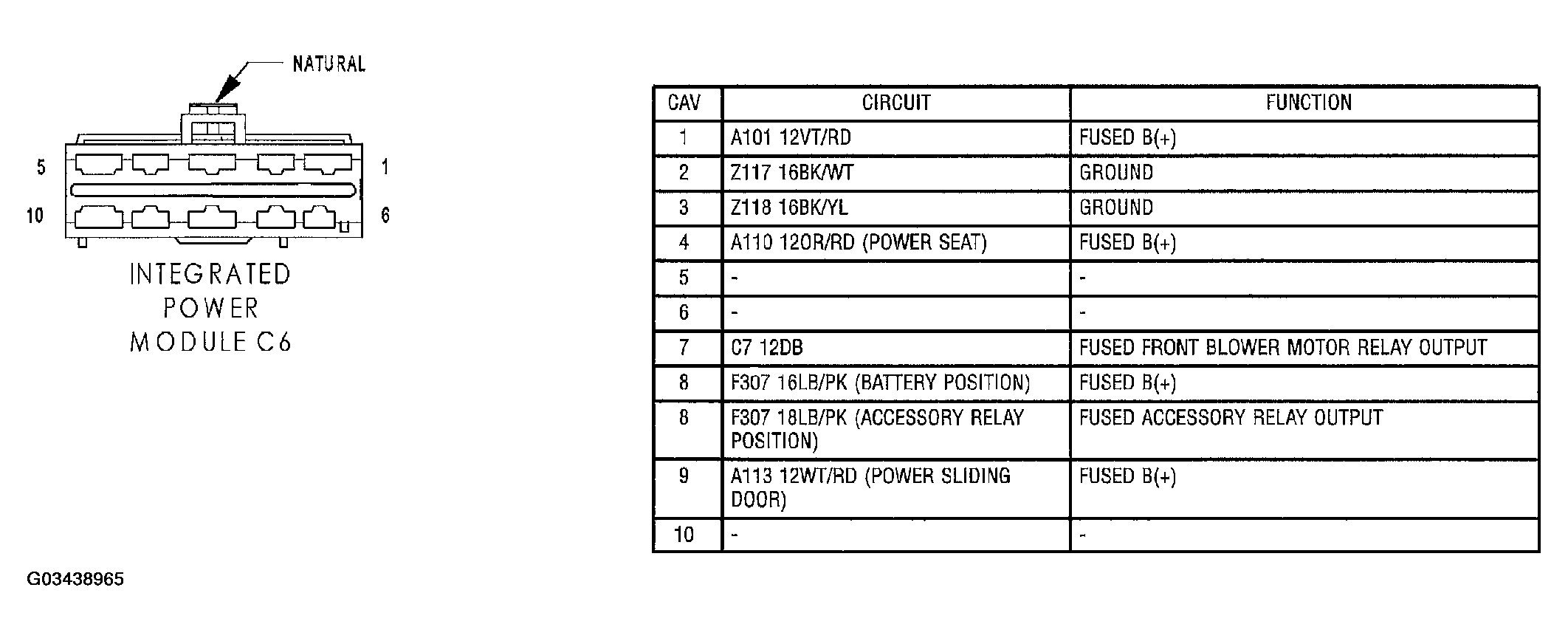

Fig 1: Integrated Power Module Connector End View (C6)
G03438965Courtesy of DAIMLERCHRYSLER CORP.
