Power Liftgate Module Connector End View (C1)

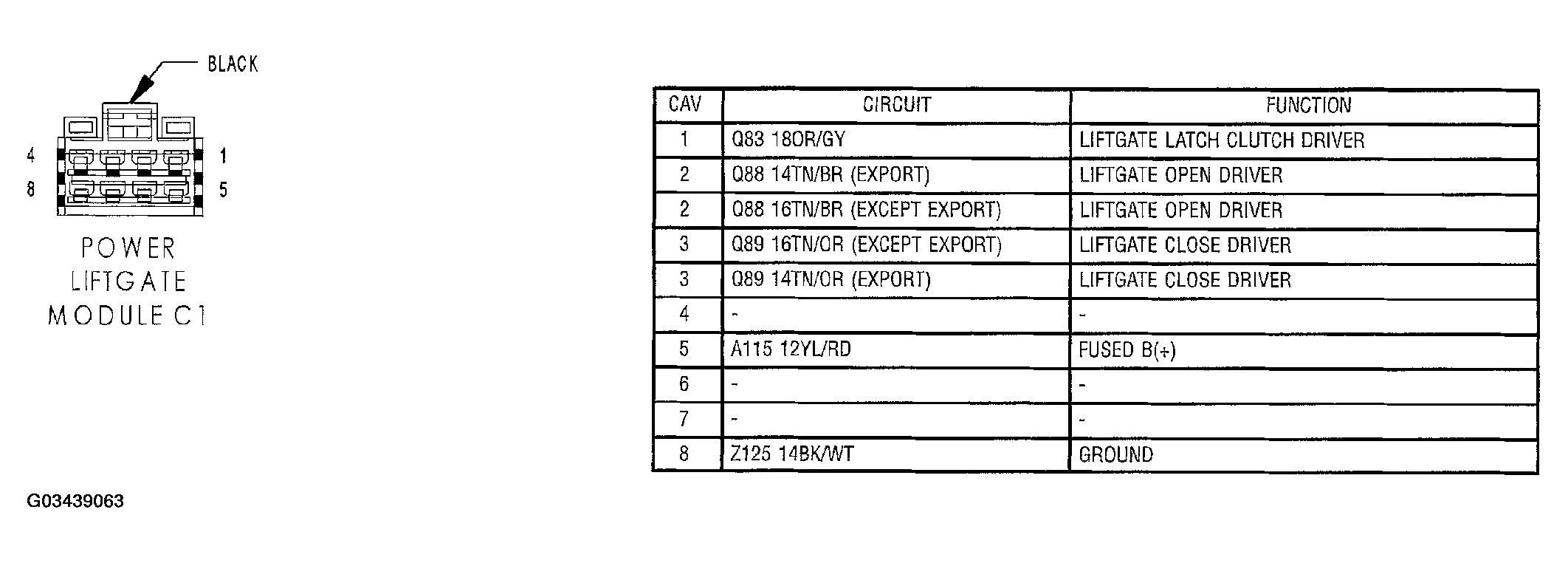

Fig 1: Power Liftgate Module Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
