Battery Tray: Installation
- Position the battery tray in the vehicle.
- Connect the engine vacuum harness hose on the battery tray mounted vacuum reservoir.

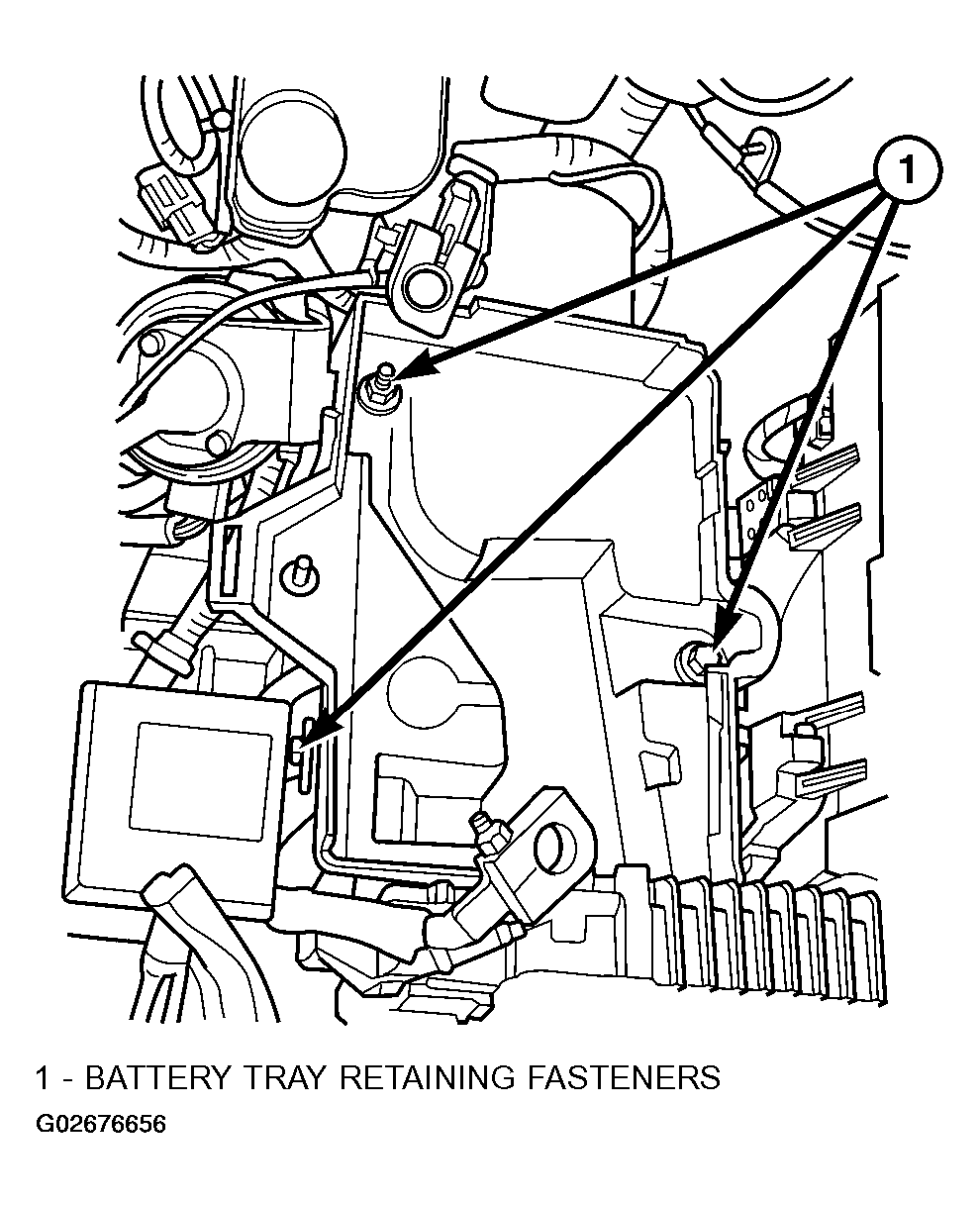

- Position drainage hose and install the battery tray retaining fasteners (Figure ).
- Install the battery in the vehicle.
- Connect the negative battery cable.
