Standard Procedure - Module Lamp Replacement

  1. Remove the overhead console (Refer to REMOVAL  ).
  2. Using a flat blade screwdriver twist out socket/ lamp (Fig 1 ).

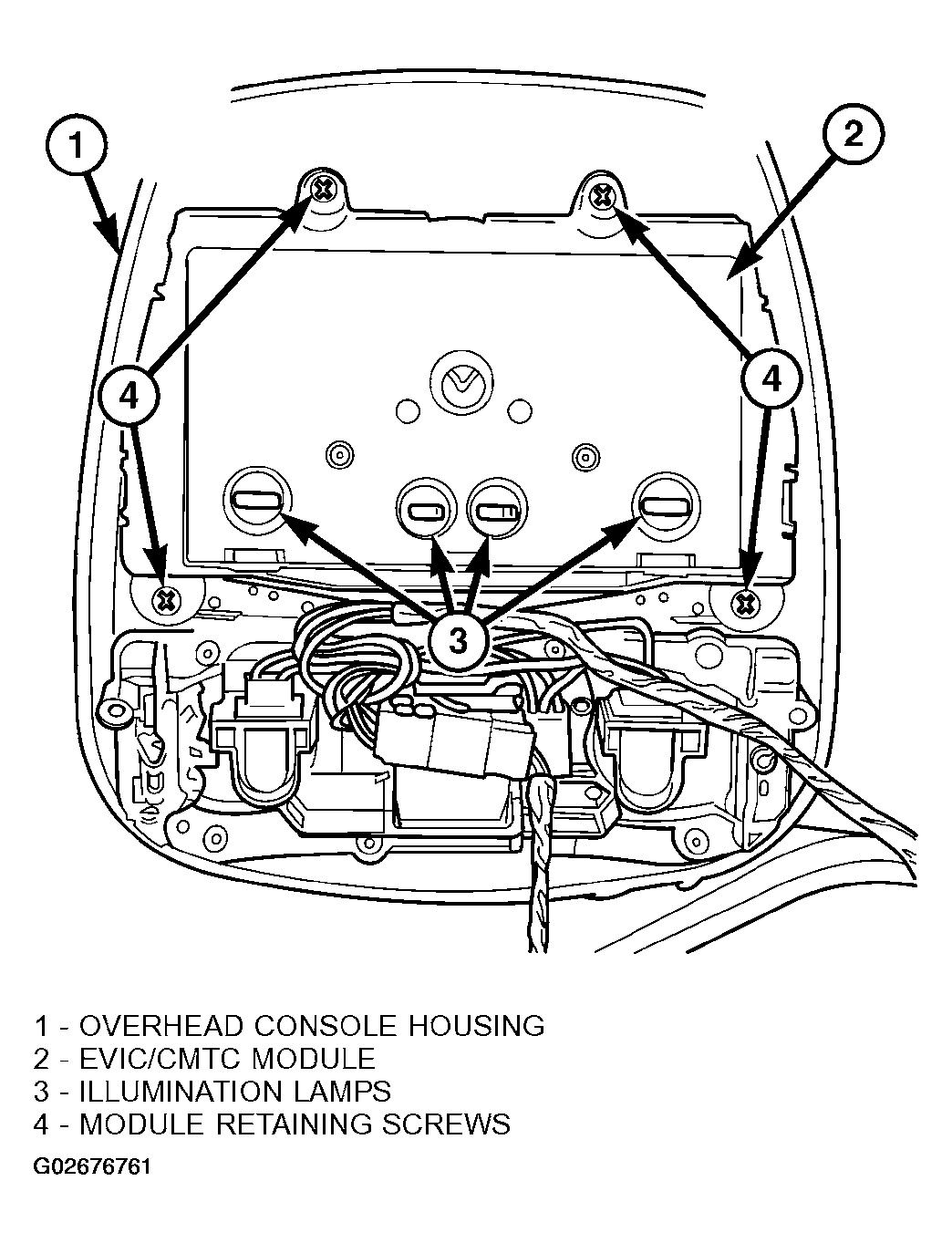

    Fig 1: Identifying EVIC
    G02676761Courtesy of DAIMLERCHRYSLER CORP.
  3. Replace lamp(s) as necessary.
