Component Locations

NOTE: See Fig 1 -Fig 23 for component locations.

Fig 1: Locating A/C Pressure Sensor

G00012059

Courtesy of DAIMLERCHRYSLER CORPORATION

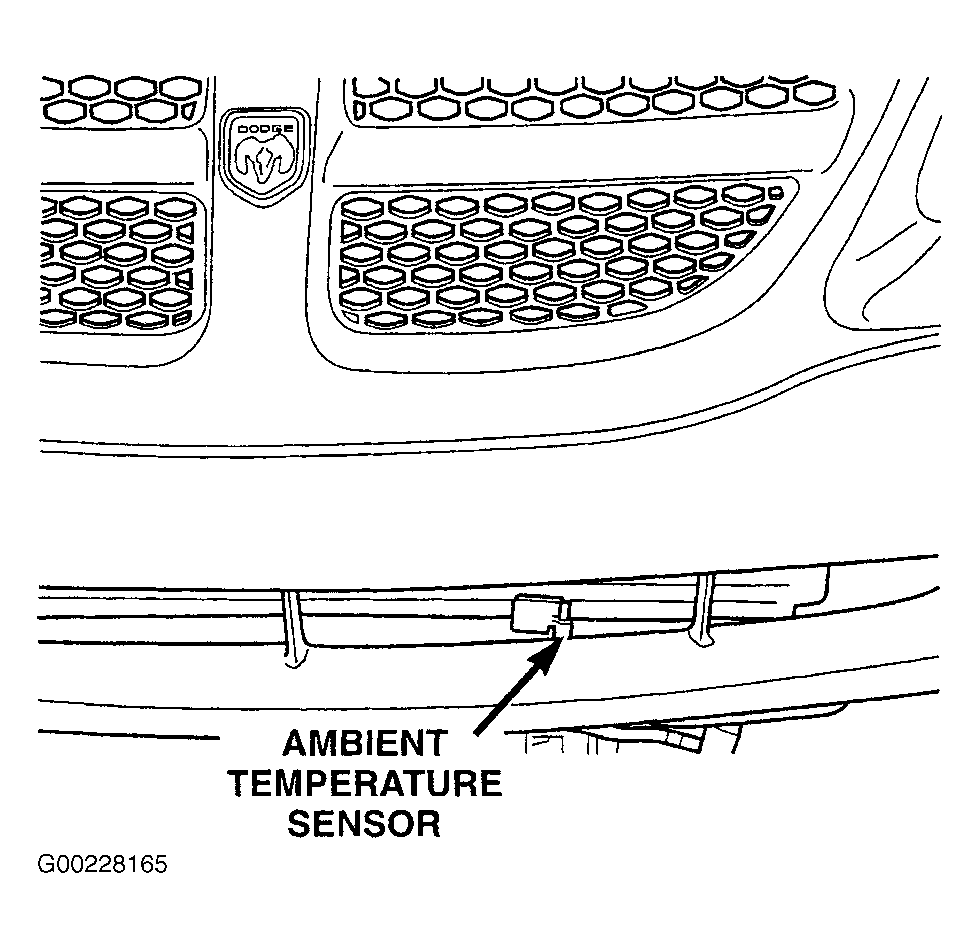

Fig 2: Locating Ambient Temperature Sensor

G00228165

Courtesy of CHRYSLER CORP.

Fig 3: Locating Ambient Air Temperature Sensor Harness Connector

G00114656

Courtesy of DAIMLERCHRYSLER CORPORATION

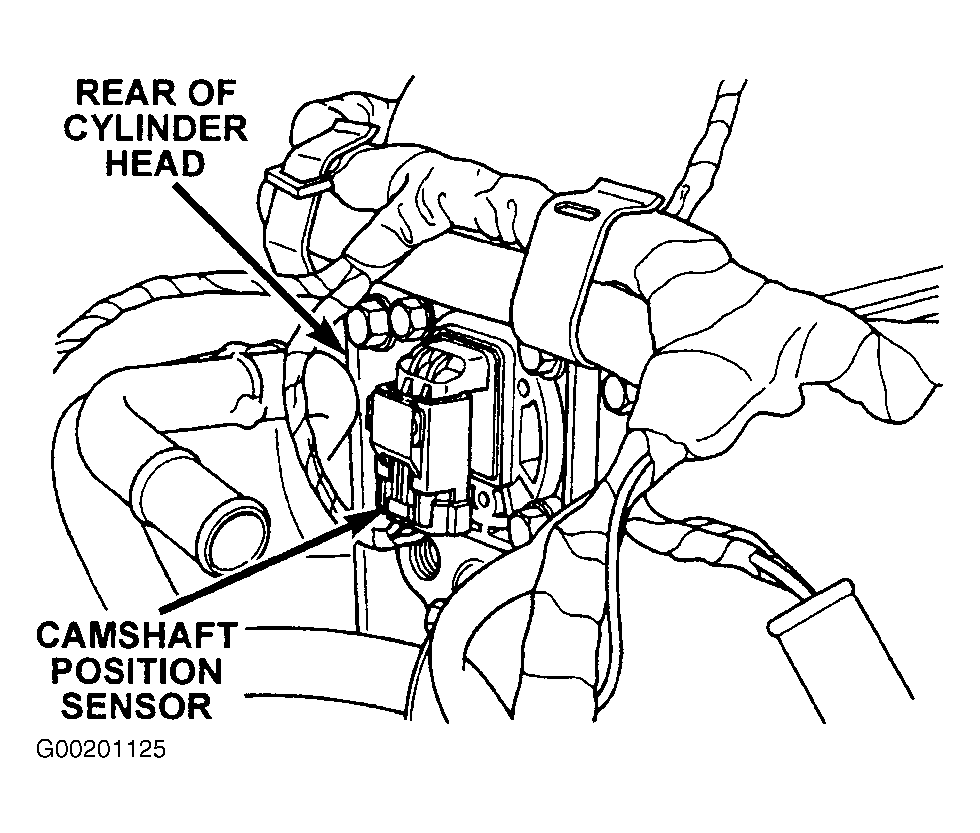

Fig 4: Locating Camshaft Position Sensor

G00201125

Courtesy of CHRYSLER CORP.

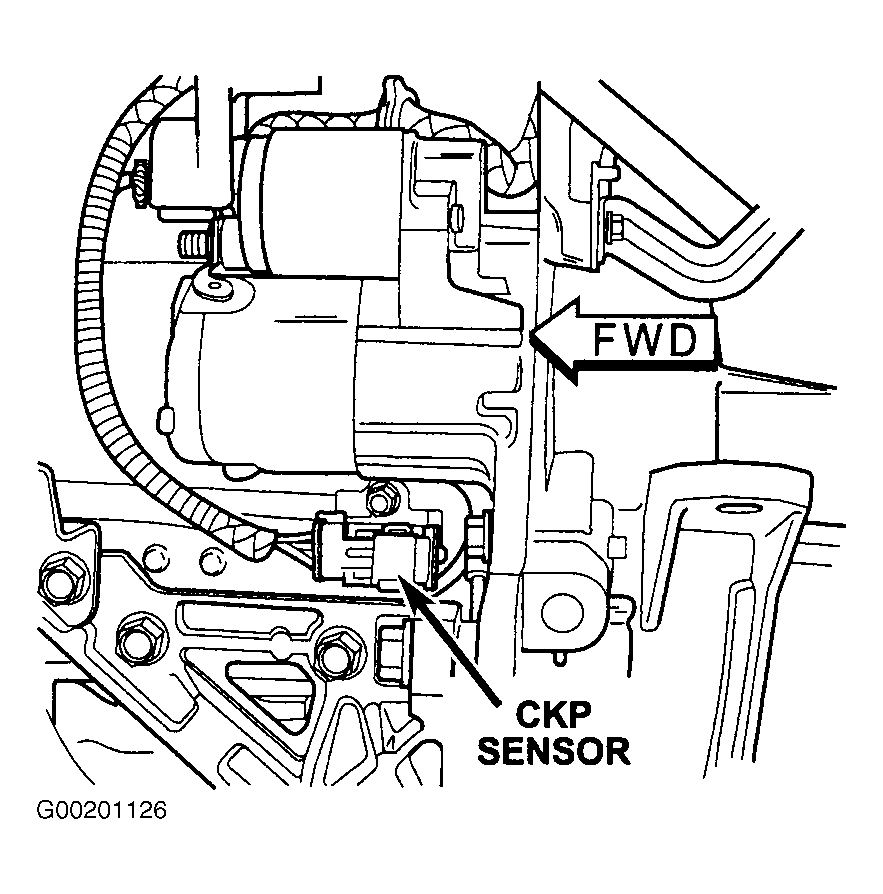

Fig 5: Locating Crankshaft Position Sensor

G00201126

Courtesy of CHRYSLER CORP.

Fig 6: Locating Data Link Connector

G95J35070

Courtesy of DAIMLERCHRYSLER CORPORATION

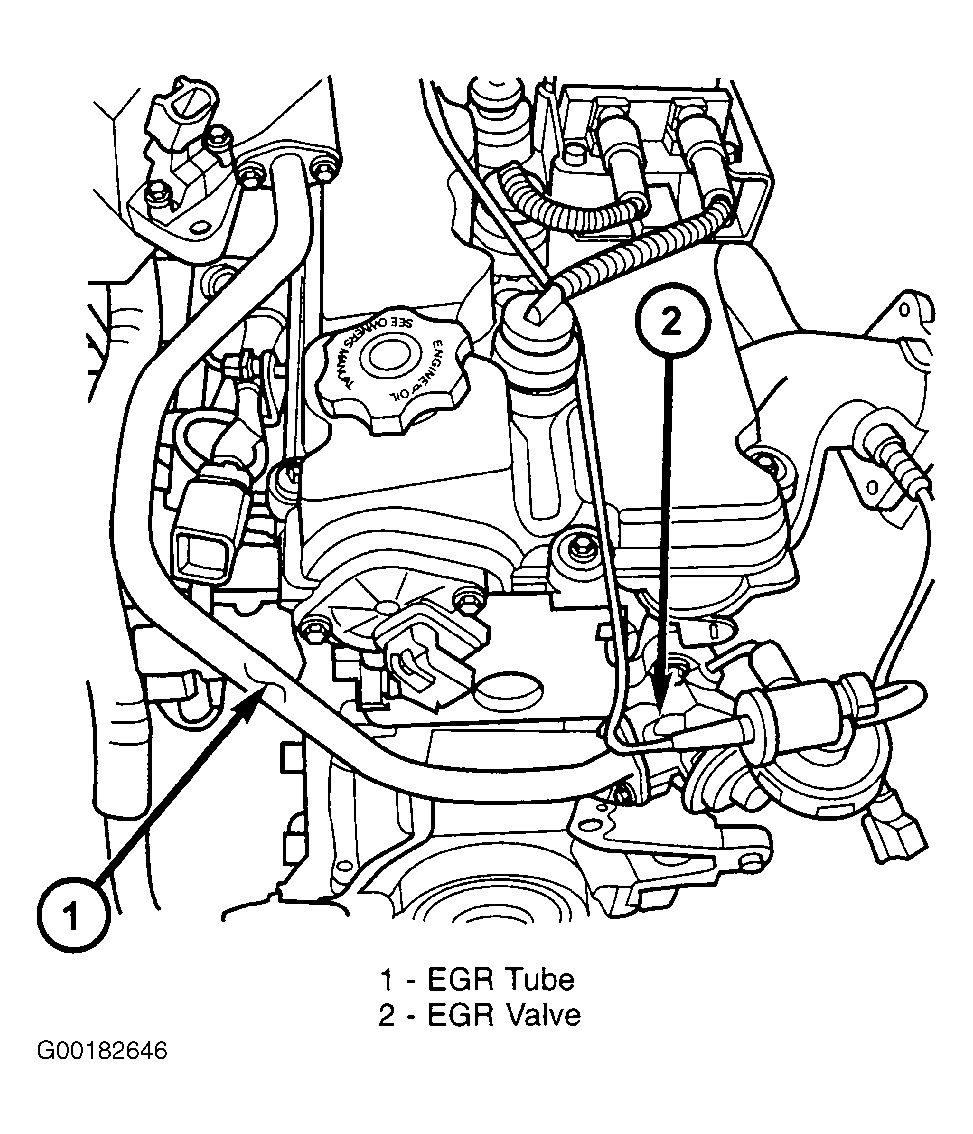

Fig 7: Locating EGR Valve & Tube

G00182646

Courtesy of CHRYSLER CORP.

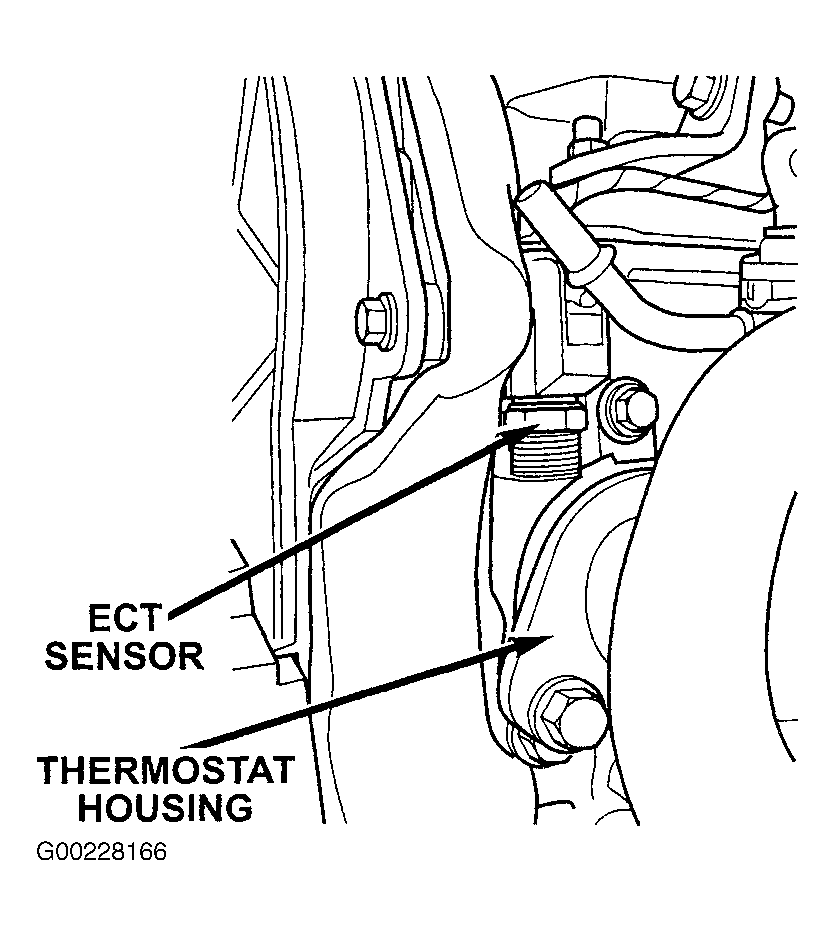

Fig 8: Locating Engine Coolant Temperature Sensor

G00228166

Courtesy of CHRYSLER CORP.

Fig 9: Locating EVAP Purge Solenoid

G00012053

Courtesy of DAIMLERCHRYSLER CORPORATION

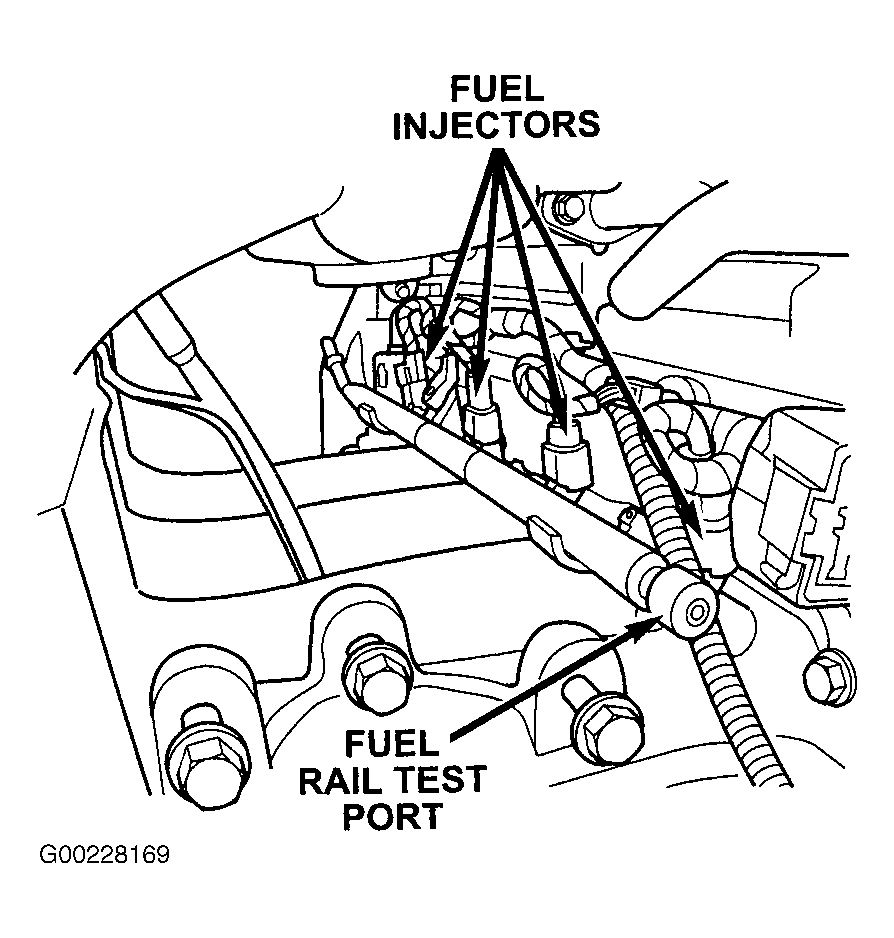

Fig 10: Locating Fuel Injectors

G00228169

Courtesy of CHRYSLER CORP.

Fig 11: Locating IAT & TP Sensors, & IAC Motor

G00012044

Courtesy of DAIMLERCHRYSLER CORPORATION

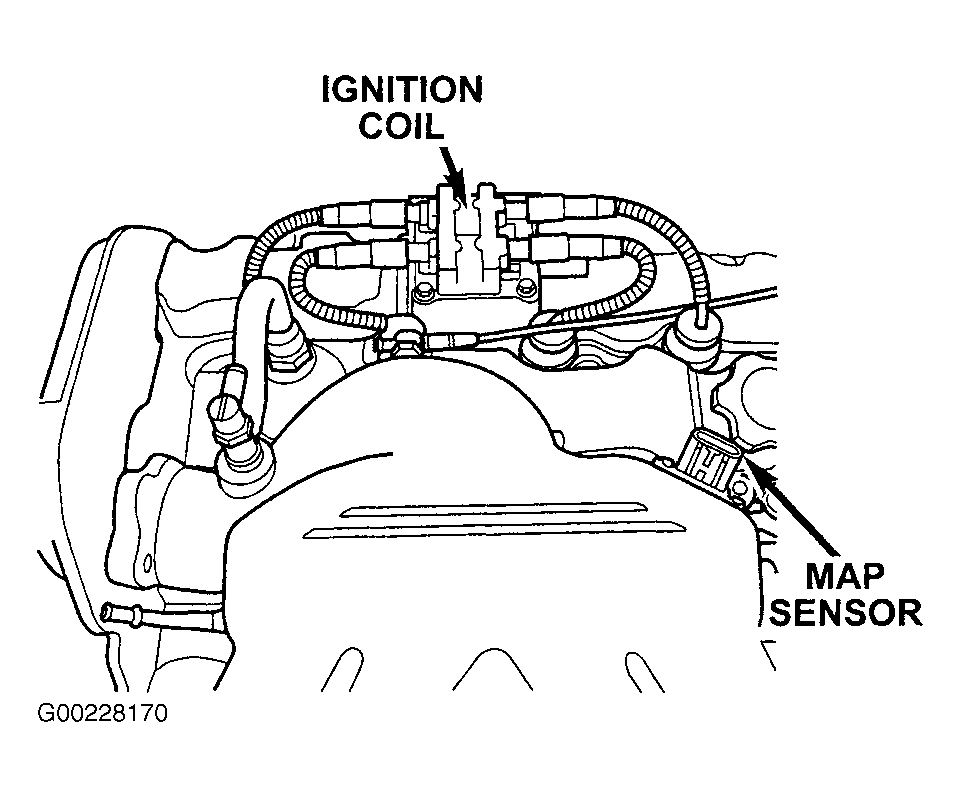

Fig 12: Locating Ignition Coil

G00228170

Courtesy of CHRYSLER CORP.

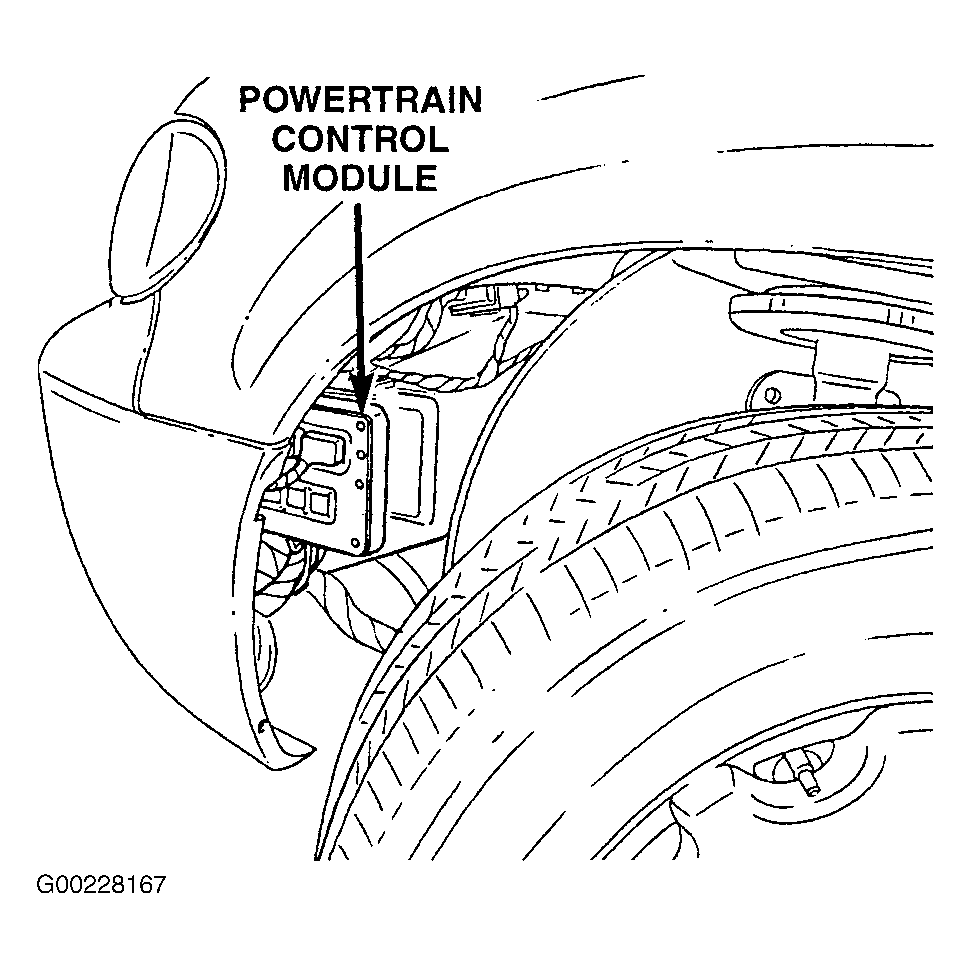

Fig 13: Locating Powertrain Control Module

G00228167

Courtesy of CHRYSLER CORP.

Fig 14: Locating Knock Sensor

G00020271

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 15: Locating Manifold Absolute Pressure Sensor

G00012049

Courtesy of DAIMLERCHRYSLER CORPORATION

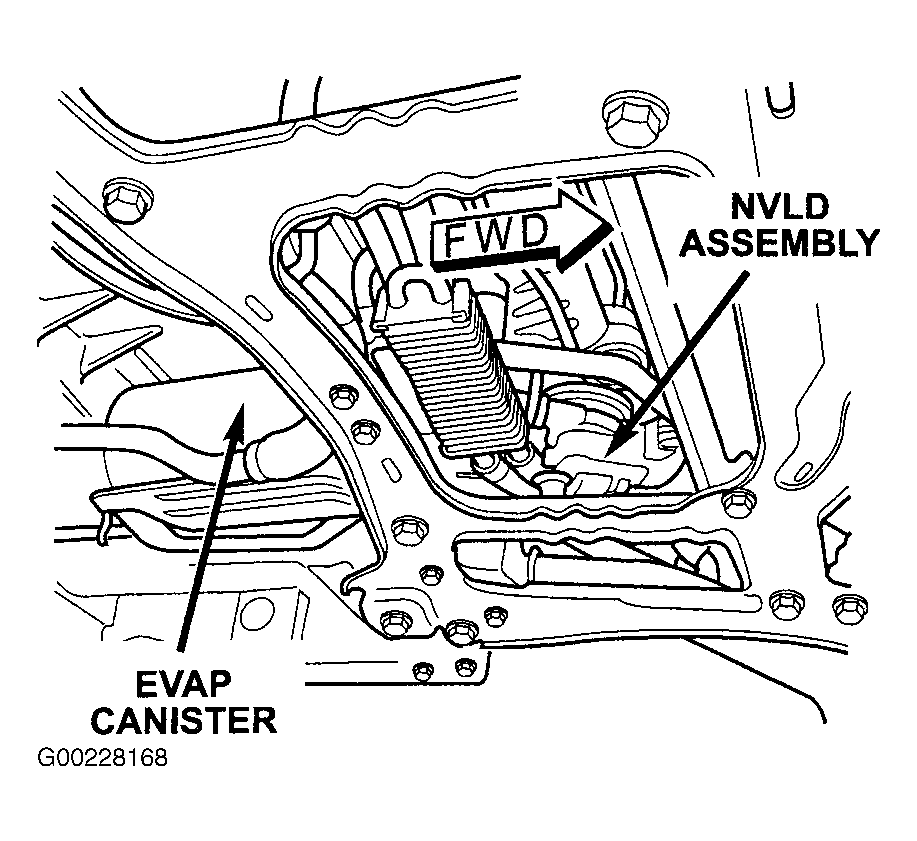

Fig 16: Locating NVLD Assembly

G00228168

Courtesy of CHRYSLER CORP.

Fig 17: Locating Radiator Fan Relay Connector

G00012058

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Locating Sentry Key Immobilizer Module

G00085463

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 19: Locating Speed Control Switches

G00059293

Courtesy of DAIMLERCHRYSLER CORP.

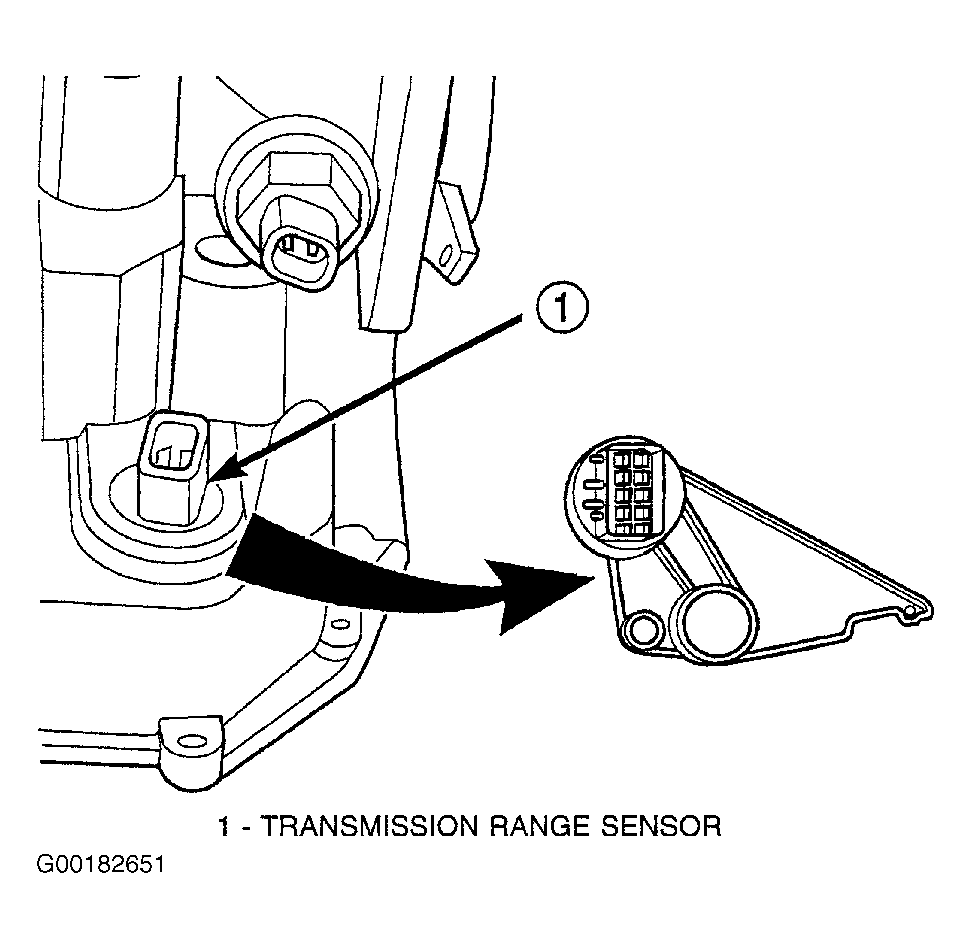

Fig 20: Locating Transmission Range Sensor

G00182651

Courtesy of CHRYSLER CORP.

Fig 21: Locating Vehicle Speed Sensor

G00012055

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 22: Locating 1/1 O2 Sensor

G00094494

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 23: Locating 1/2 O2 Sensor

G00094495

Courtesy of DAIMLERCHRYSLER CORPORATION
