Right Power Sliding Door Control Module Connector End View (C1)

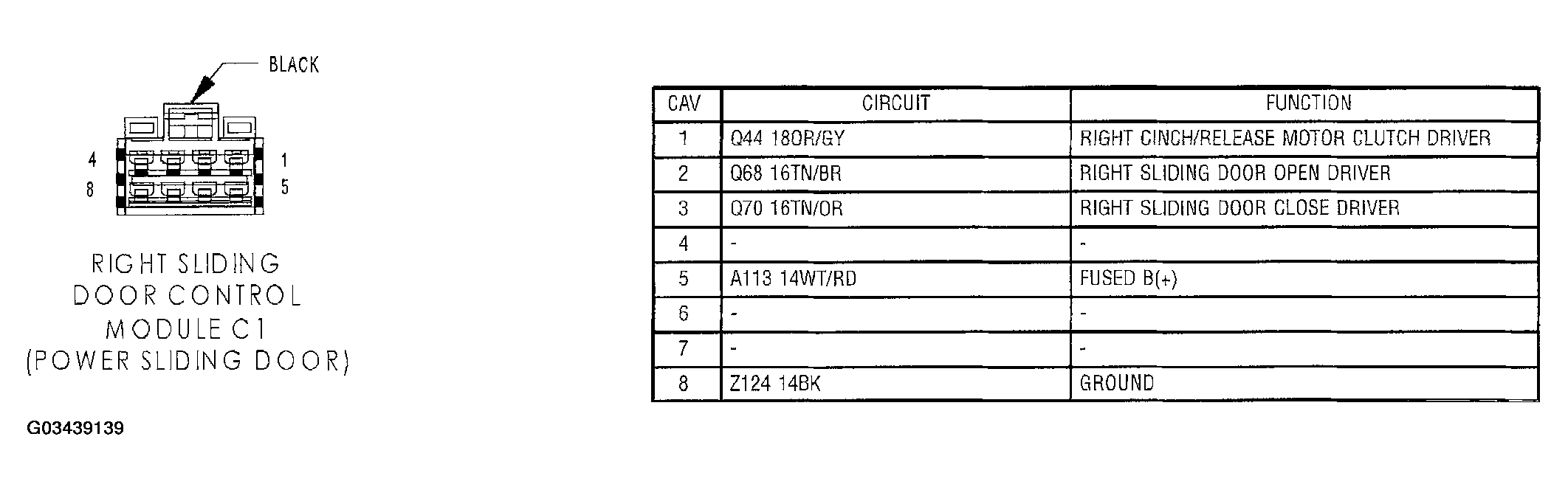

Fig 1: Right Power Sliding Door Control Module Connector End View (C1)
G03439139Courtesy of DAIMLERCHRYSLER CORP.
