Powertrain Control Module C2 (NGC)

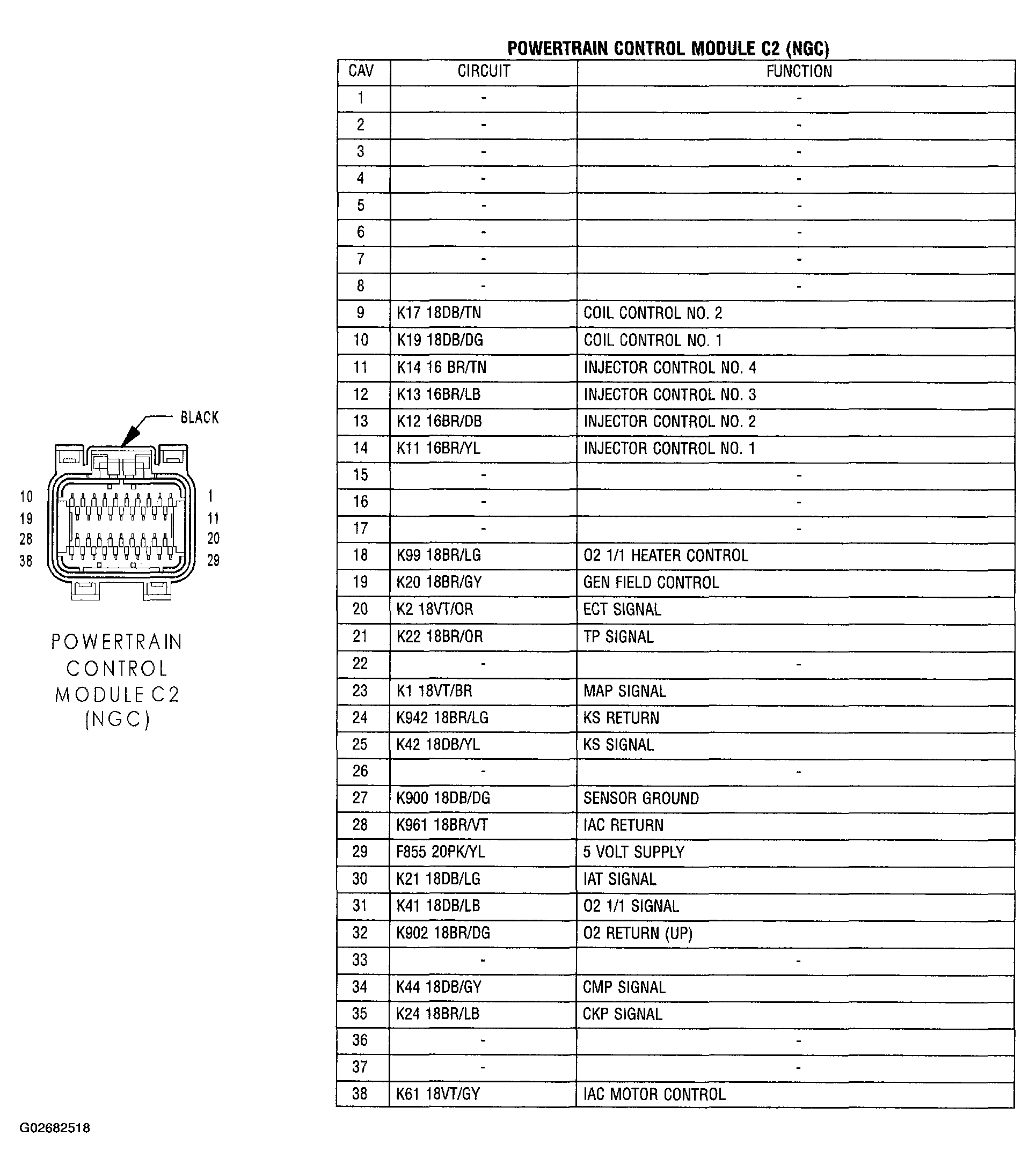

Fig 1: Identifying Powertrain Control Module C2 - Female (SBEC) Connector Pinouts
G02682518Courtesy of DAIMLERCHRYSLER CORP.
