Auto Temp Control Connector End View (C2)

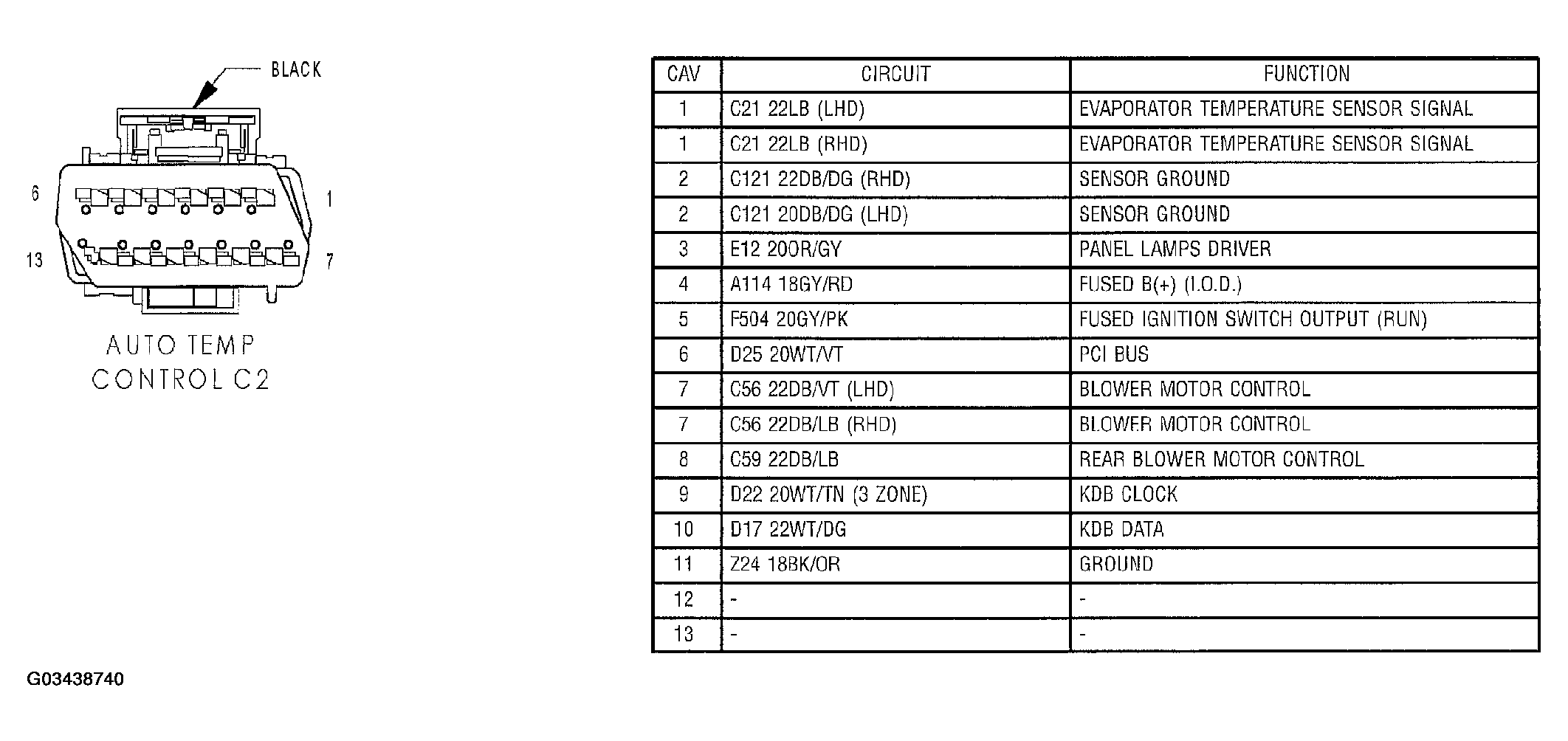

Fig 1: Auto Temp Control Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
