Driver Power Seat Horizontal Position Sensor Connector End View

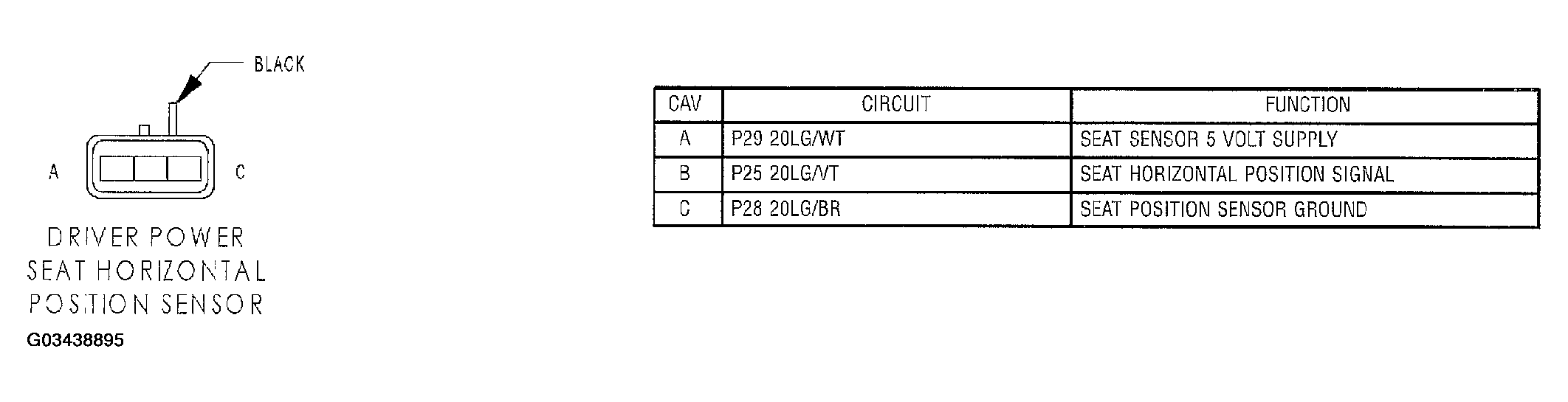

Fig 1: Driver Power Seat Horizontal Position Sensor Connector End View
G03438895Courtesy of DAIMLERCHRYSLER CORP.
