Engine Control Module (Diesel) Connector End View (C2)

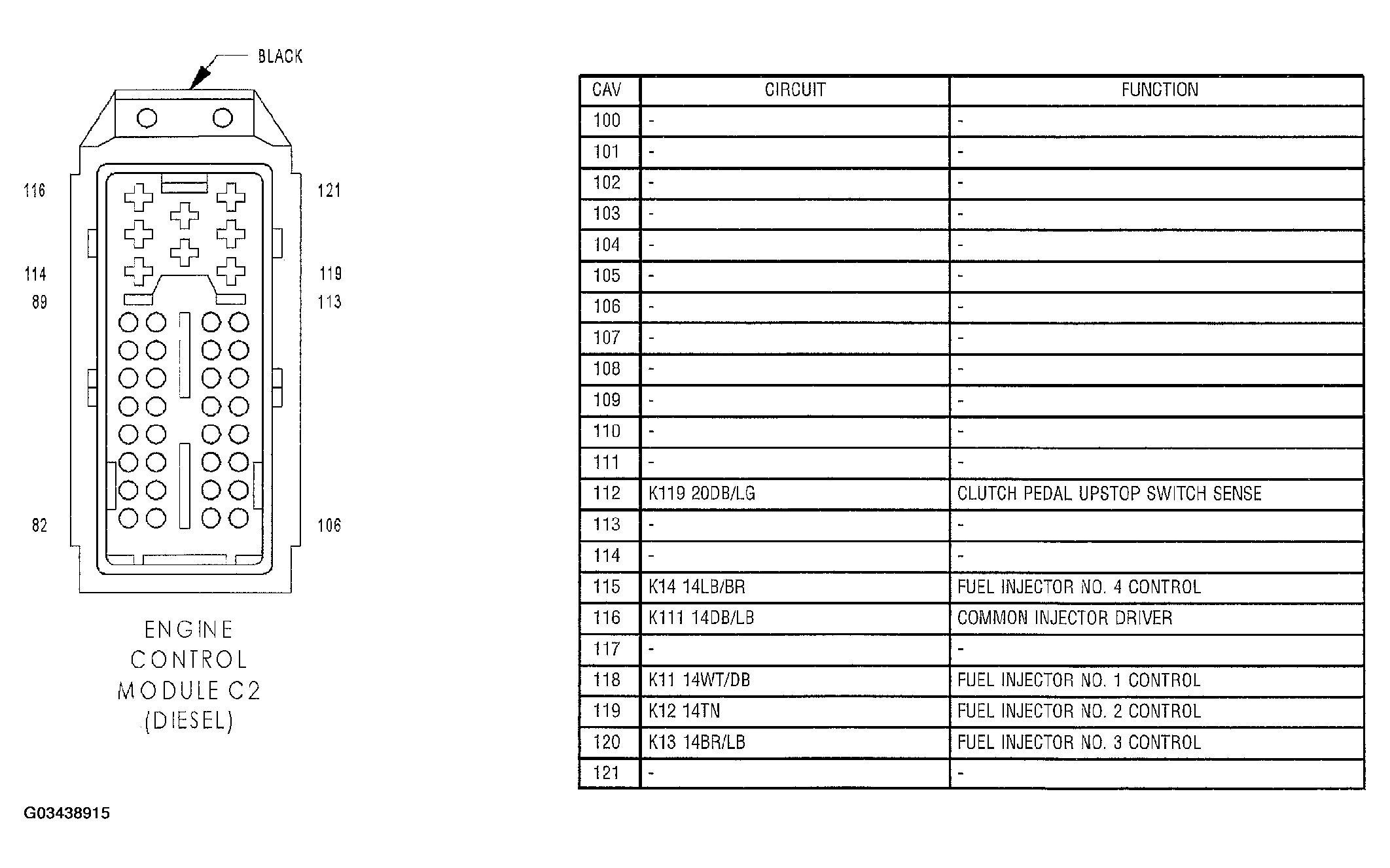

Fig 1: Engine Control Module (Diesel) Connector End View (C2)
G03438915Courtesy of DAIMLERCHRYSLER CORP.

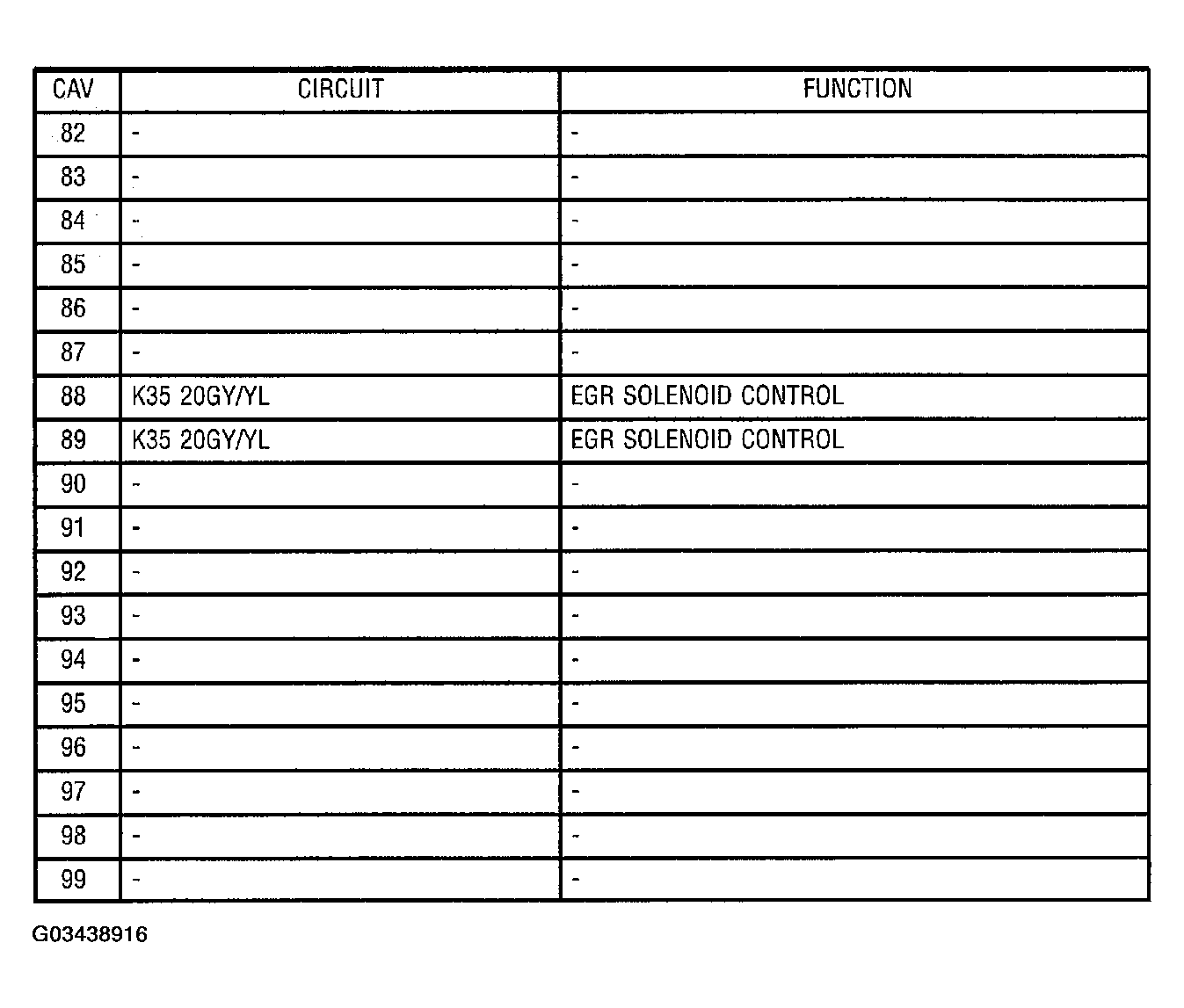

Fig 1: Engine Control Module (Diesel) Connector End View (C2)
G03438916Courtesy of DAIMLERCHRYSLER CORP.
