Component Locations

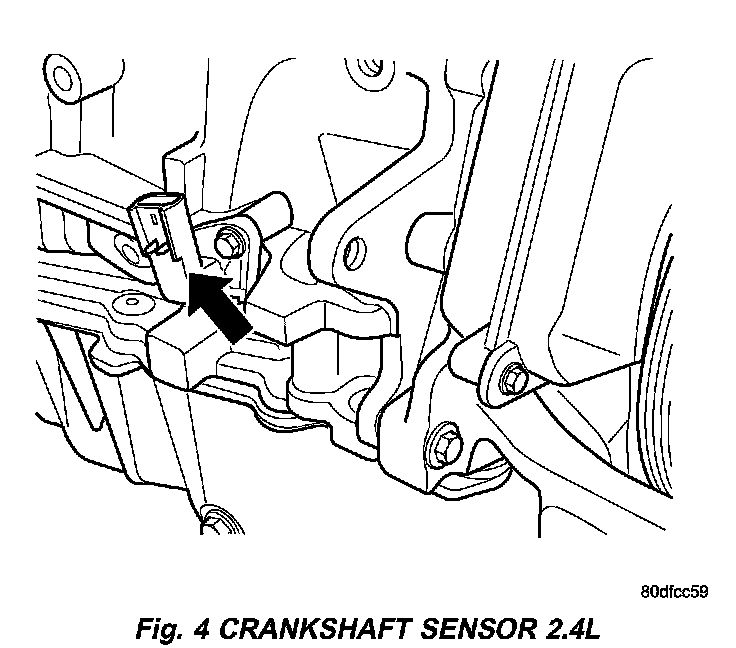

Fig. 4 Crankshaft Sensor 2.4L:




2.4L:






The 2.4L crankshaft sensor is located on the rear of the engine near the accessory drive belt.
